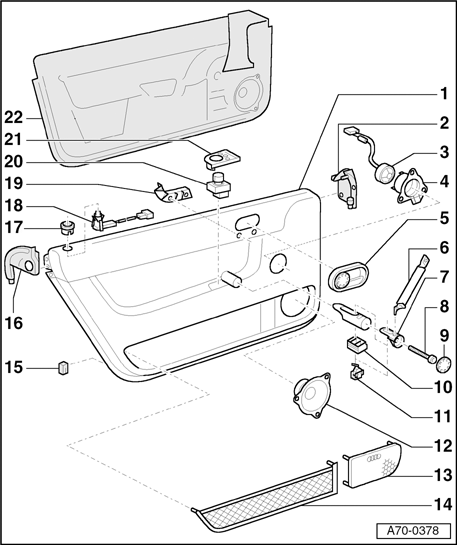

Component locations, overview

1 - Removing door trim → Front door trim, removing and installing

2 - Inner connecting piece

3 - Removing treble speaker → Treble speaker, removing and installing

4 - Mounting for treble speaker

5 - Removing interior door handle → Interior door handle, removing

6 - Removing door handle → Door handle and switch trim, removing

7 - Removing switch trim → Door handle and switch trim, removing

8 - Central screw

9 - Screw cap

10 - Window lifter switch holder

11 - Window lifter switch unit

• Drivers side → Drivers window lifter switch, removing and installing
• Passengers side → Front passengers window lifter switch, removing and installing

12 - Speaker → Bass speaker, removing

13 - Speaker trim → Speaker trim, removing

14 - Hinged pocket → Hinged pocket assembly, removing and installing

15 - Clip locator

16 - Outer connecting piece

17 - Diode trim plate

18 - Diode → Cable for anti-theft immobilizer display, removing and installing

19 - Interior door handle mounting

20 - Mirror adjustment switch

21 - Mirror adjustment switch trim plate

22 - Insulation → Front door trim insulation, removing and installing
