Luggage compartment side trim: Notes

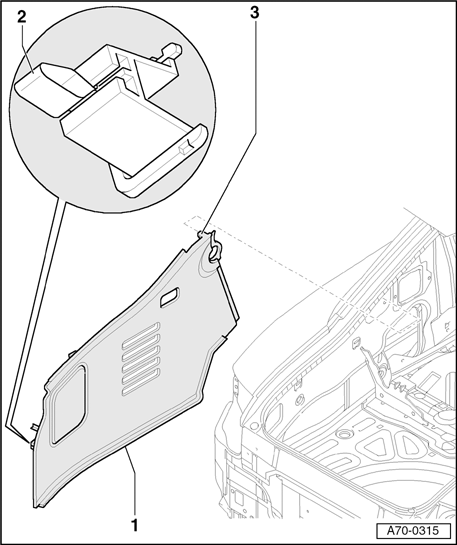

Fig 1: Luggage Compartment Side Trim

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Luggage compartment trim

• Removing

• Remove striker pin on rear backrest Removing striker pin
• Remove luggage compartment floor lining → Luggage compartment floor lining, removing .
• Remove luggage compartment light on left side Removing luggage compartment light
• Release luggage compartment side trim - 1  - from clips - 2  - (6x) starting at top rear.

• Installing

• Fasten retainer tab - 3  - in C-pillar trim.

• Make sure tailgate seal is correctly positioned after installing trim.

2 - Clips

3 - Retainer tab
