Luggage compartment floor lining, removing

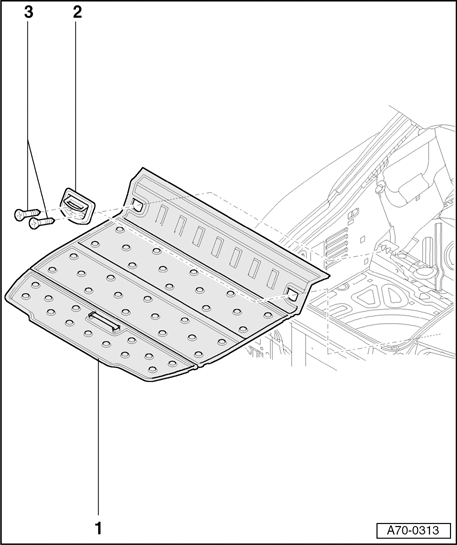

Fig 1: Luggage Compartment Floor Lining Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Luggage compartment floor lining

• Remove bolts - 3  - (4x) from fastening rings - 2  - on left and right.
• Fold down rear-seat backrests.
• Remove luggage compartment floor lining - 1  - forward.

2 - Fastening rings

3 - Screws (4x)

• Tightening torque 4.5 Nm
