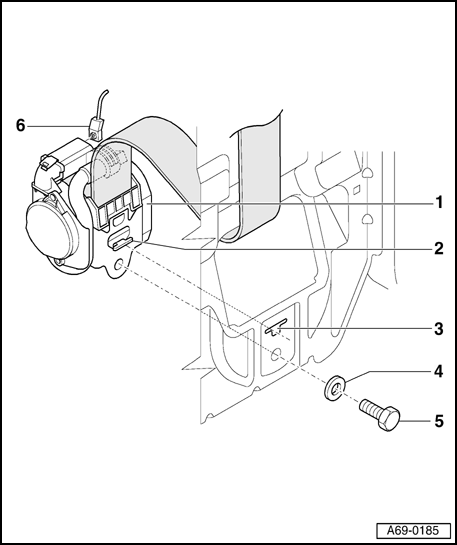

Three-point seat belt with belt tensioner, removing and installing: Notes

1 - Belt tensioner

• Removing three-point seat belt

• Disconnect battery.
• Unscrew anchorage point for outer floor assembly → Anchorage point for outer floor assembly .
• Unscrew anchorage point for seat belt guide → Anchorage point for seat belt guide .
• Remove the appropriate side of the rear panel → Side trim of rear panel .

• Remove right storage compartment → Right storage compartment, removing and installing  or left → Left storage compartment, removing and installing .
• Remove speaker Removing side speaker .
• Remove bolt - 5  - (1x).
• Remove belt tensioner - 1  - with anti-twist mechanism - 2  - from mount - 3  -.

• Remove belt tensioner - 1  - toward front.
• Disconnect harness connector - 6  - at belt tensioner.

• Installing
• After installing passenger side three-point seat belt, check belt function for child seat → Seat belt restraint function for holding additional child seats, checking (not for drivers seat belt) .

2 - Anti-twist mechanism

3 - Mount

4 - Washer

5 - Bolt (1x)

• Tightening torque 55 Nm

6 - Harness connector for belt tensioner
