Seat belt anchorage points (overview)

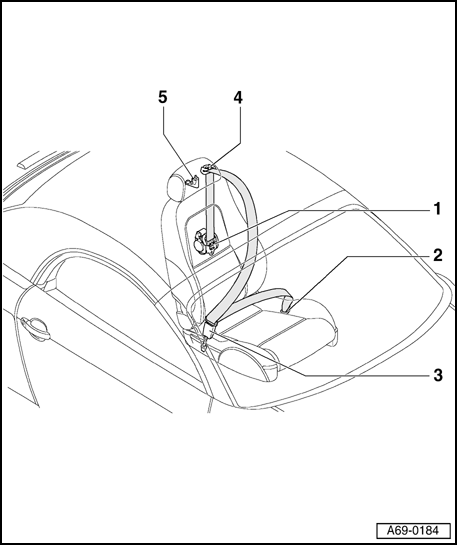

Fig 1: Seat Belt Anchorage Points (Overview)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Three-point seat belt with belt tensioner

• Removing → Three-point seat belt with belt tensioner, removing and installing

2 - Anchorage point for outer floor assembly

• Removing → Anchorage point for outer floor assembly

3 - Buckle anchorage point

• Removing → Belt buckle anchorage point

4 - Anchorage point for seat belt guide

• Removing → Anchorage point for seat belt guide

5 - Seat belt guide console

• Removing → Seat belt guide console
