Anchorage point for seat belt guide

• Remove anchorage point for outer floor assembly → Anchorage point for outer floor assembly .
• Using a screwdriver, carefully pry out trim for seat belt guide - 3  - by pressing in direction of - arrow  -.

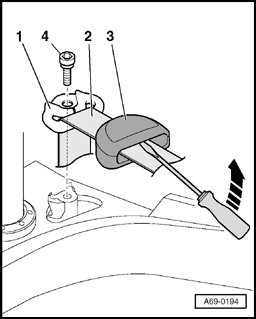

Fig 1: Anchorage Point For Seat Belt Guide

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove bolt - 4  -.
• Tightening torque 55 Nm
• Remove trim for seat belt guide - 3  - from seat belt - 2  -.

1 - Seat belt guide
