Rear three-point seat belt, removing and installing

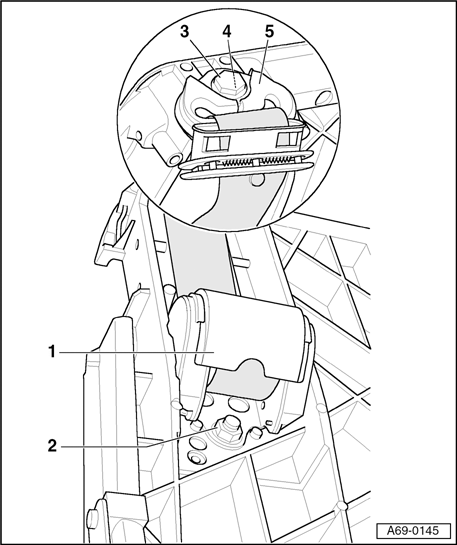

Fig 1: Rear Three-Point Seat Belt Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Belt reel

• Removing

• Remove rear seat bench and backrest → Rear seat bench, removing and installing .
• Remove buckle trim → Lock trim, removing .
• Remove upholstery (cover and padding) from rear backrest → Fabric cover and padding for split rear backrest, removing and installing .
• Remove belt trim and belt casing → Belt trim and belt casing, removing .

• Remove bolt - 3  - (1x).
• Remove nut - 2  -.

• Installing

• Place spacer ring - 4  - underneath guide fitting - 5  -.
• Remainder of installation is carried out in reverse order of removal.

2 - Nut

• Tightening torque 55 Nm

3 - Bolt

• Tightening torque 55 Nm

4 - Spacer ring

5 - Guide fitting
