Radio flap, removing

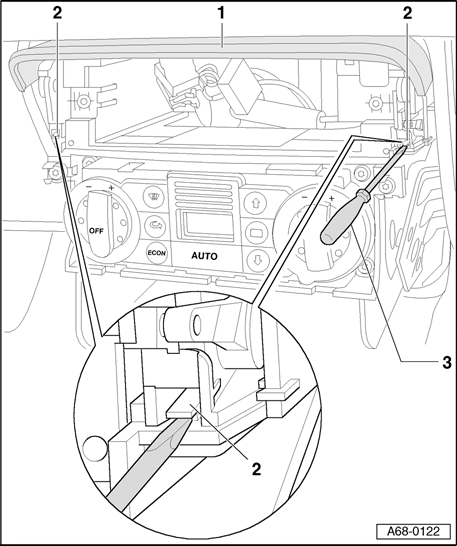

Fig 1: Radio Flap Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Radio flap

• Remove radio. → 91 RADIO, TELEPHONE, NAVIGATION, TRIP COMPUTER
• Unclip trim molding → Center console trim molding, removing and installing .
• Use screwdriver - 3  - to press up retainer tabs - 2  - (2x) and pull out radio flap - 1  -.

2 - Retainer tabs

3 - Screwdriver
