Adaptation of service indicator for oil change service (distance)

With this function the interval value (distance in km) can be entered for the next oil change.

• Press buttons 0 and 5.
• Press Q button to confirm input.

  Indicated on display.

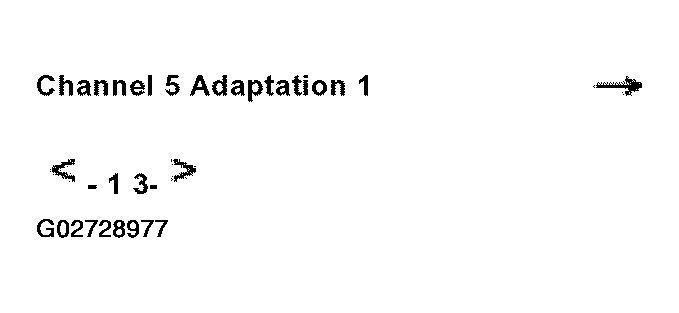

  Fig 1: Scan Tool Display - Adaptation Of Service Indicator For Oil Change (1 Of 7)

  Courtesy of AUDI OF AMERICA, INC.

  The interval value for the next oil change service is displayed. In this example 1 corresponds with 1000 km.

  NOTE:

  • The entry of the applicable value is only possible in increments of 1000 km which are then also shown on the display.
  • Also in countries with odometers in miles, the adaptation must be made in km. It is necessary to convert miles into km (miles 1.609 = kilometers).
  • When replacing the instrument cluster. see INSTRUMENT CLUSTER, VALUES TO BE ENTERED WHEN REPLACING .
  • With the VAG 1551 Scan Tool (ST), only direct entry is possible.
  • If a mistake was made during the entry, function "Adaptation" is ended and has to be started again.
• Press button.

  Indicated on display.

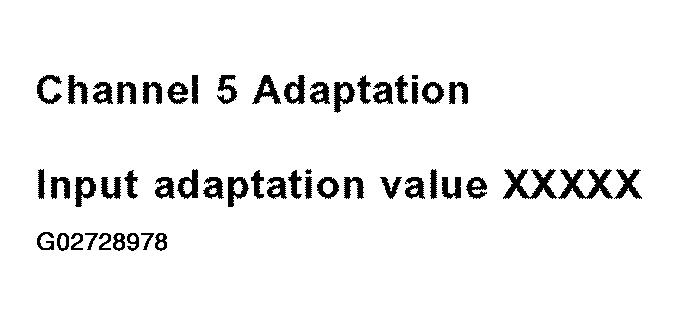

  Fig 2: Scan Tool Display - Adaptation Of Service Indicator For Oil Change (2 Of 7)

  Courtesy of AUDI OF AMERICA, INC.
• Enter interval value with VAG 1551. Enter first digits with "0."

  Example:

  Specified value: 15000 km

  Value to be entered: 00015

  Indicated on display.

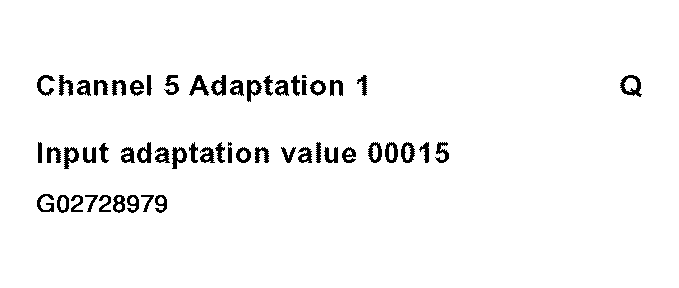

  Fig 3: Scan Tool Display - Adaptation Of Service Indicator For Oil Change (3 Of 7)

  Courtesy of AUDI OF AMERICA, INC.
• Press Q button to confirm input.

  Indicated on display.

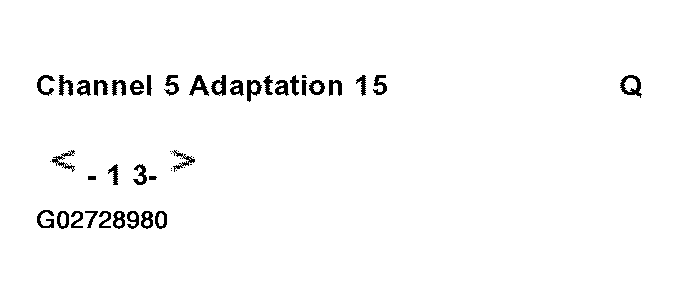

  Fig 4: Scan Tool Display - Adaptation Of Service Indicator For Oil Change (4 Of 7)

  Courtesy of AUDI OF AMERICA, INC.
• Press Q button to confirm input.

  Indicated on display.

  Fig 5: Scan Tool Display - Adaptation Of Service Indicator For Oil Change (5 Of 7)

  Courtesy of AUDI OF AMERICA, INC.
• Press Q button to confirm input.

  Indicated on display.

  Fig 6: Scan Tool Display - Adaptation Of Service Indicator For Oil Change (6 Of 7)

  Courtesy of AUDI OF AMERICA, INC.
• End adaptation by pressing the button.

  Indicated on display.

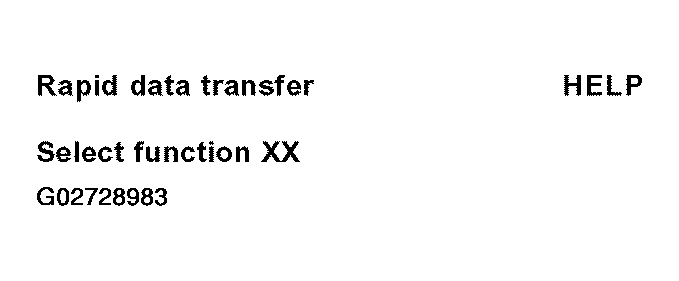

  Fig 7: Scan Tool Display - Adaptation Of Service Indicator For Oil Change (7 Of 7)

  Courtesy of AUDI OF AMERICA, INC.
