Instrument cluster On Board Diagnostic (OBD), initiating: Procedure

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

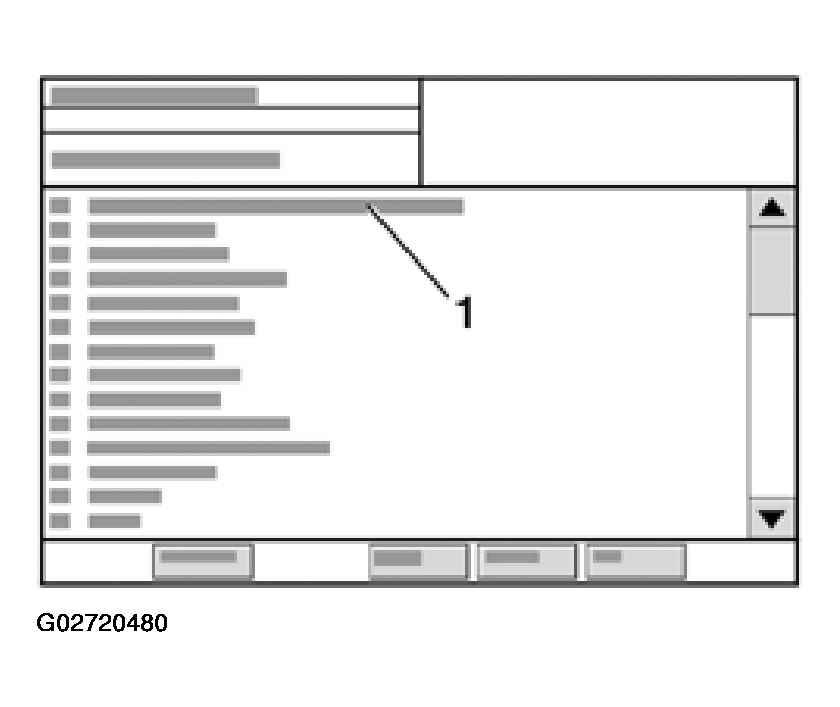

Display on VAS 5051:

Fig 1: VAS 5051 Tester Display - Initiating Instrument Cluster OBD (1 Of 3)

G02720480

Courtesy of AUDI OF AMERICA, INC.

Press selection -1- of vehicle system "17 - instrument cluster" (instrument panel insert).
Wait until the next indication appears on display.

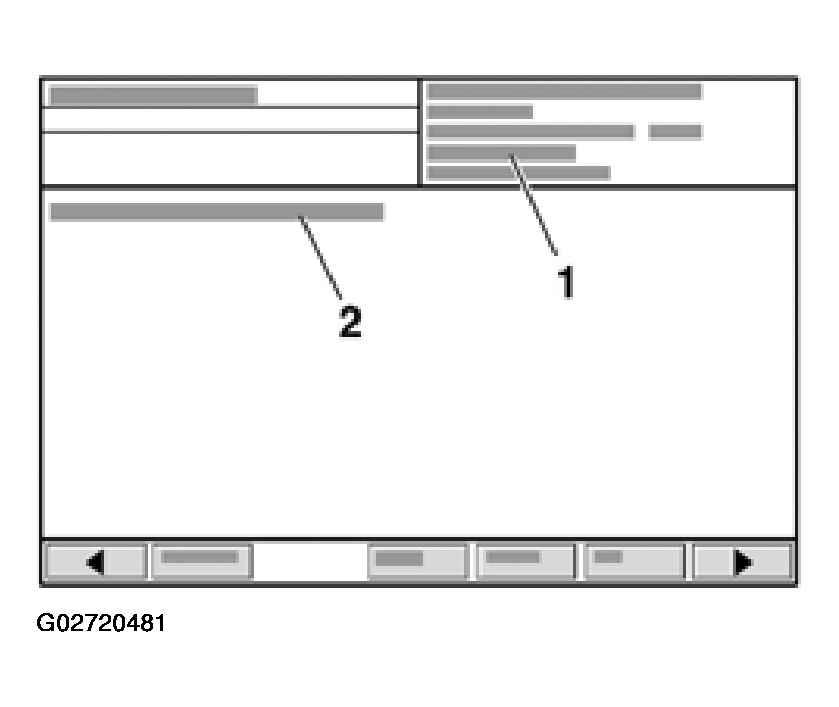

Display on VAS 5051:

Fig 2: VAS 5051 Tester Display - Initiating Instrument Cluster OBD (2 Of 3)

G02720481

Courtesy of AUDI OF AMERICA, INC.

Control module identification of instrument cluster. See Fig 3 .
Control module identification of immobilizer. See Fig 4 .

Fig 3: Control Module Identification, Instrument Cluster

G02720482

Courtesy of AUDI OF AMERICA, INC.

NOTE: In the previous graphic, for Instrument Cluster Coding, see Code Control Module (function 07) .

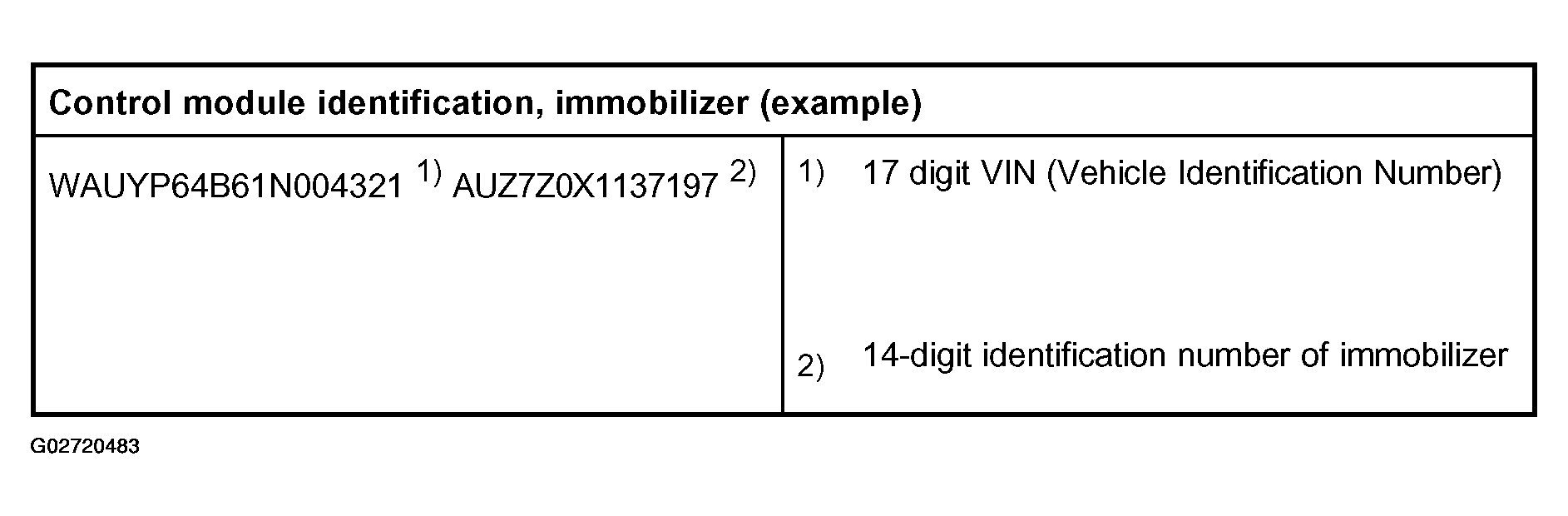

Fig 4: Control Module Identification, Immobilizer Chart

G02720483

Courtesy of AUDI OF AMERICA, INC.

Click on --> button

Display on VAS 5051:

Fig 5: VAS 5051 Tester Display - Initiating Instrument Cluster OBD (3 Of 3)

G02720484

Courtesy of AUDI OF AMERICA, INC.

1 - Selection of diagnostic functions:

DIAGNOSTIC FUNCTIONS - INSTRUMENT CLUSTER

Diagnostic functions	Comment
02 Check DTC Memory	See CHECK DTC MEMORY (FUNCTION 02) .
03 Output Diagnostic Test Mode (DTM)	See OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03) .
04 Basic Setting	-
05 Erase DTC Memory	See ERASE DTC MEMORY (FUNCTION 05) .
06 End Output	See END OUTPUT (FUNCTION 06) .
07 Code Control Module	See CODE CONTROL MODULE (FUNCTION 07) .
08 Read Measuring Value Block	See READ MEASURING VALUE BLOCK (FUNCTION 08) .
09 Read Individual Measuring Value	-
10 Adaptation	See ADAPTATION (FUNCTION 10) .
11 Login Procedure	-
Enter vehicle identification number	-
