Adaptation channel 09 - Odometer display

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

This function is used to adapt the odometer after the instrument cluster is replaced.

NOTE:

Adaptation can only be performed on an instrument with an odometer reading of no more than 100 kilometers or 100 miles.
Adaptation can only be performed once for each instrument cluster.
Only a larger adaptation value can be entered (more than 100 kilometers or 100 miles).
If an incorrect value is entered and confirmed, it cannot be changed. If this happens, the instrument cluster must be replaced.
In countries where speedometers are calibrated in miles, adaptation must also be performed in miles.
When replacing instrument cluster, observe. See Input values for replacing instrument cluster .

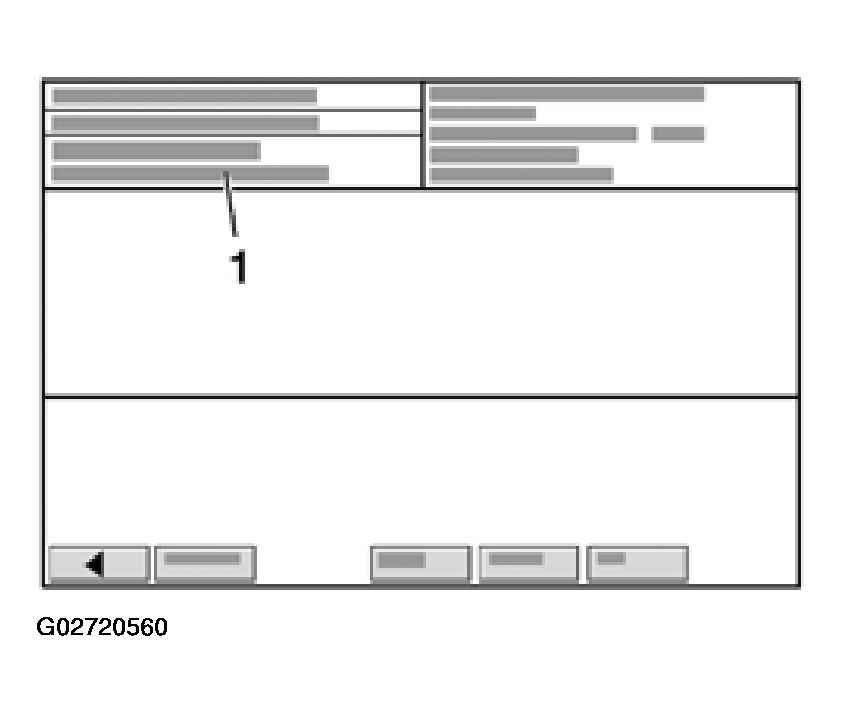

Display on VAS 5051:

Fig 1: VAS 5051 Tester Display - Adaptation Channel 09, Odometer Display (1 Of 9)

Courtesy of AUDI OF AMERICA, INC.

In selection -1-, select the diagnostic function "11 - Login-procedure".

Display on VAS 5051:

Fig 2: VAS 5051 Tester Display - Adaptation Channel 09, Odometer Display (2 Of 9)

Courtesy of AUDI OF AMERICA, INC.

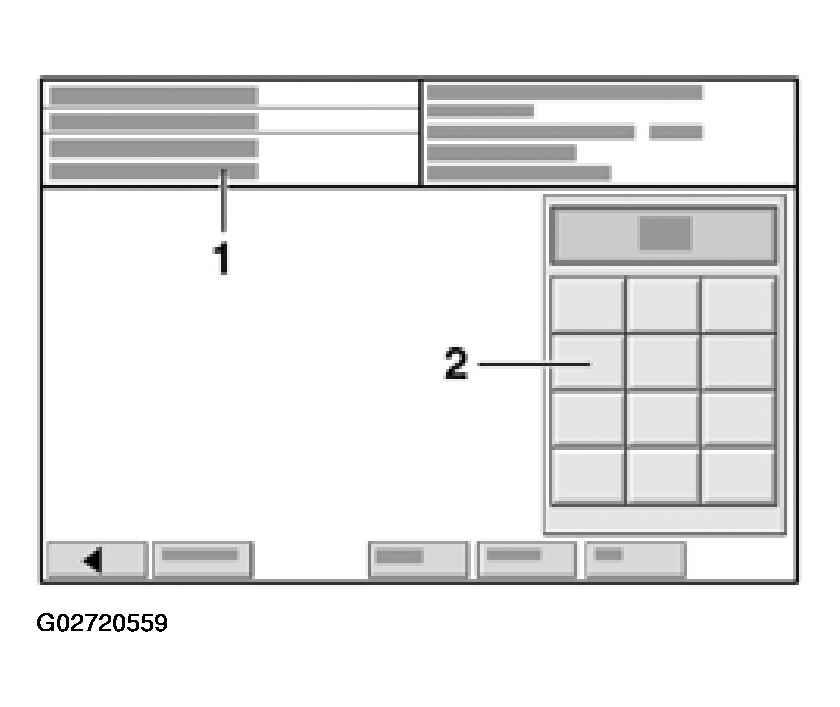

Enter code word Max. input value = 65535

Enter code number 13861 in button field -2-.
Press -Q- button to confirm input.

Display on VAS 5051:

Fig 3: VAS 5051 Tester Display - Adaptation Channel 09, Odometer Display (3 Of 9)

Courtesy of AUDI OF AMERICA, INC.

Click on <-- button

Display on VAS 5051:

Fig 4: VAS 5051 Tester Display - Adaptation Channel 09, Odometer Display (4 Of 9)

Courtesy of AUDI OF AMERICA, INC.

In selection -1-, select the diagnostic function "10 - Adaptation".

Display on VAS 5051:

Fig 5: VAS 5051 Tester Display - Adaptation Channel 09, Odometer Display (5 Of 9)

Courtesy of AUDI OF AMERICA, INC.

Select function "09" in button field -2- for "Adaptation channel 09" and press Q button to confirm input.

Display on VAS 5051:

Fig 6: VAS 5051 Tester Display - Adaptation Channel 09, Odometer Display (6 Of 9)

Courtesy of AUDI OF AMERICA, INC.

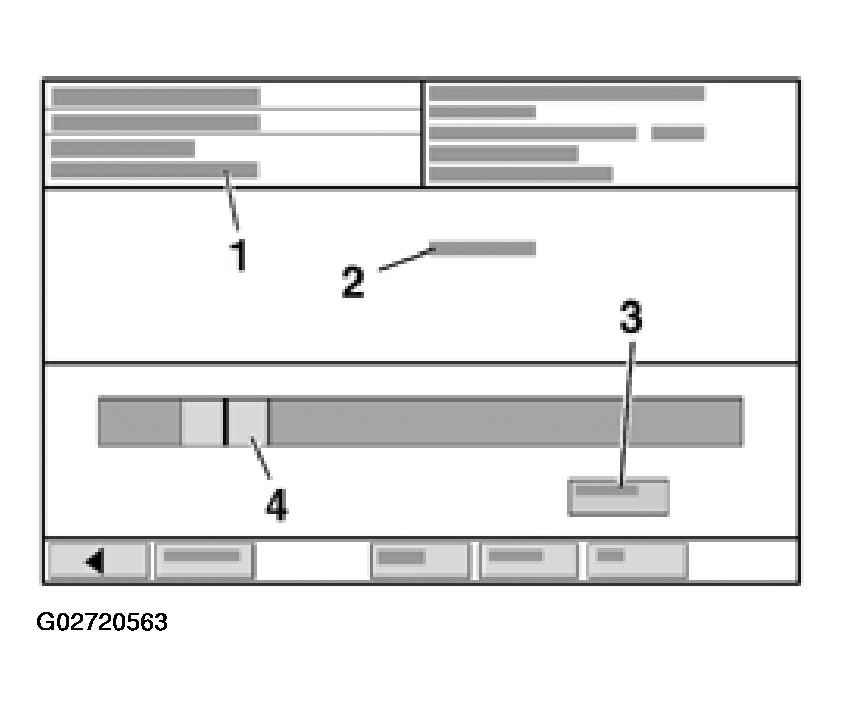

Channel 9 read and test
Kilometer reading in 10 km
Keypad - only direct input via the keypad is possible
The sliding bar is positioned on the current adaptation value

Press "Keypad" button -3-.

Display on VAS 5051:

Fig 7: VAS 5051 Tester Display - Adaptation Channel 09, Odometer Display (7 Of 9)

Courtesy of AUDI OF AMERICA, INC.

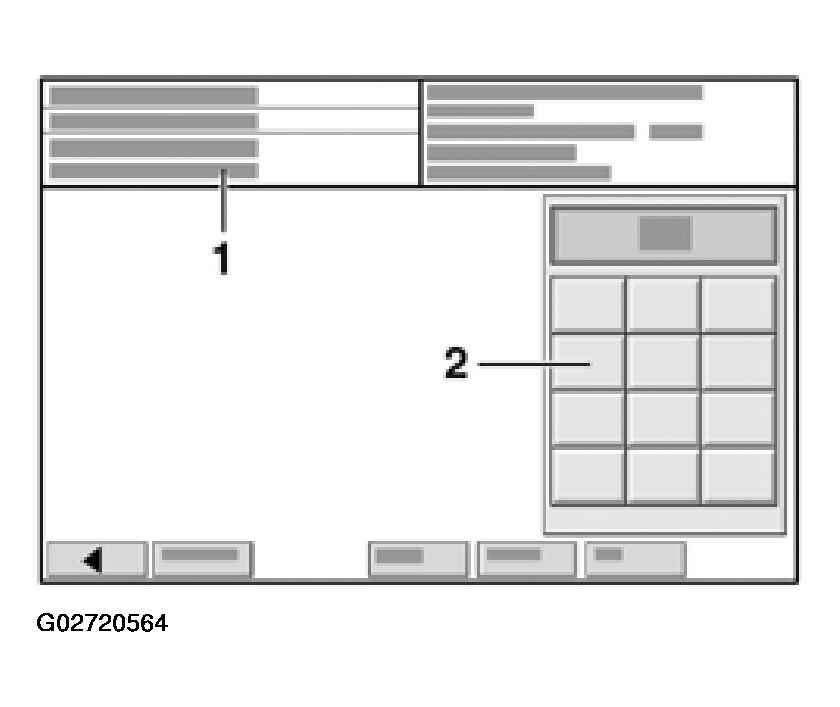

Enter adaptation value Input value: 0 to 65535

Enter 5-digit adaptation value in button field -2- (See Measuring value block 010 ).

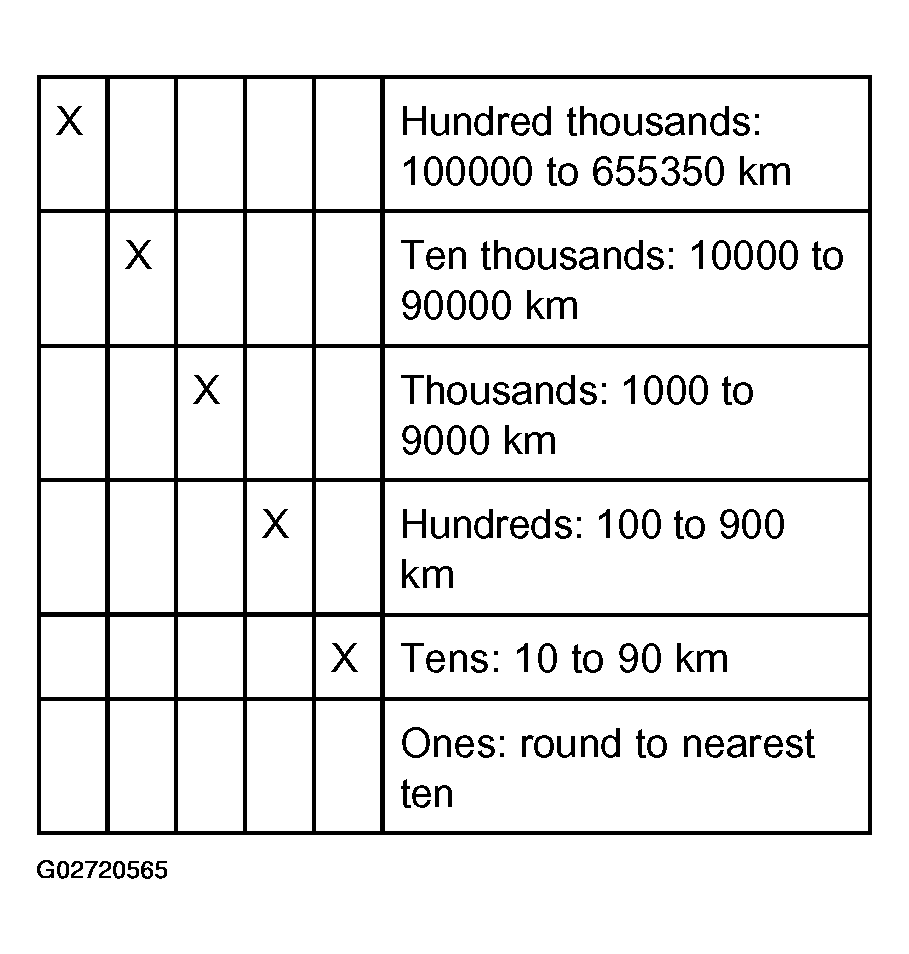

Fig 8: Adaptation Value Chart - Odometer Display

Courtesy of AUDI OF AMERICA, INC.

Example:

Mileage reading = 8376 (x 1.61 corresponds to 13485 km)

Keypad input: 01349

Press -Q- button to confirm input.

Display on VAS 5051:

Fig 9: VAS 5051 Tester Display - Adaptation Channel 09, Odometer Display (8 Of 9)

Courtesy of AUDI OF AMERICA, INC.

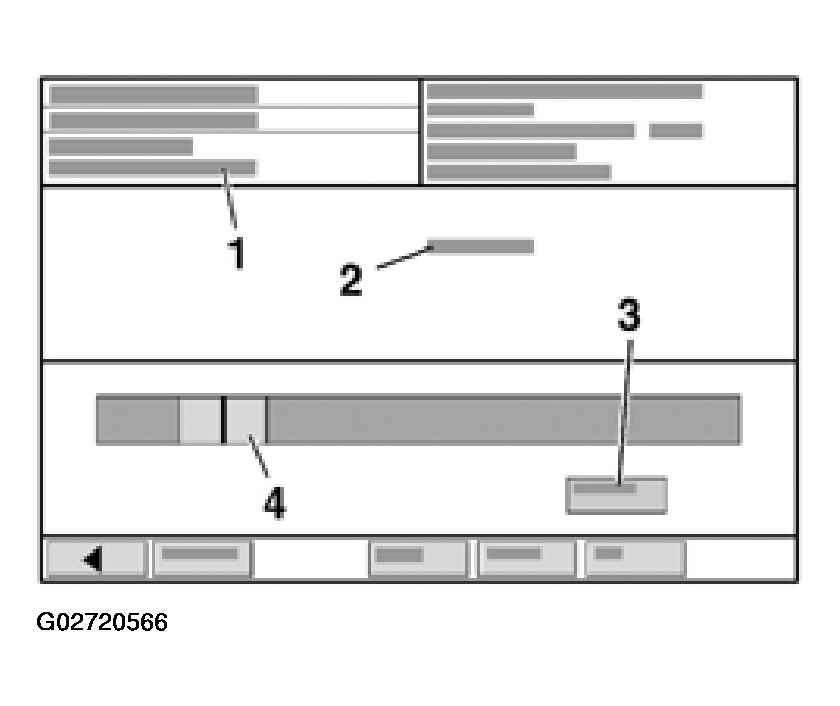

1 - Channel 9 save
2 - Kilometer reading in 10 km
4 - original value 0 new value 01349

Confirm new adaptation value by pressing the "take over" button -3-.

Display on VAS 5051:

Fig 10: VAS 5051 Tester Display - Adaptation Channel 09, Odometer Display (9 Of 9)

Courtesy of AUDI OF AMERICA, INC.

Channel 9 Value 01349 stored

End function "10 - Adaptation" by pressing <= button.
