For 4-digit indication in display field 2 and 4:

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Check indication in display field 2.

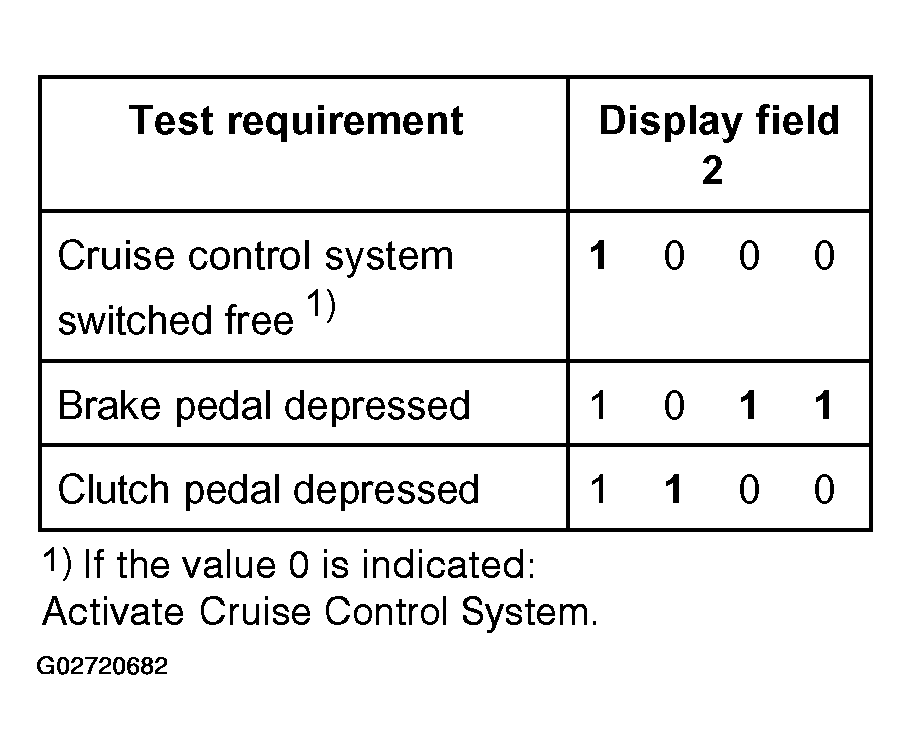

Fig 1: Cruise Control Display Field 2 (4-Digit Indication)

Courtesy of AUDI OF AMERICA, INC.

NOTE: In the previous graphic refer to:

CRUISE CONTROL SYSTEM, ACTIVATING for activating cruise control system

Check indication in display field 4.

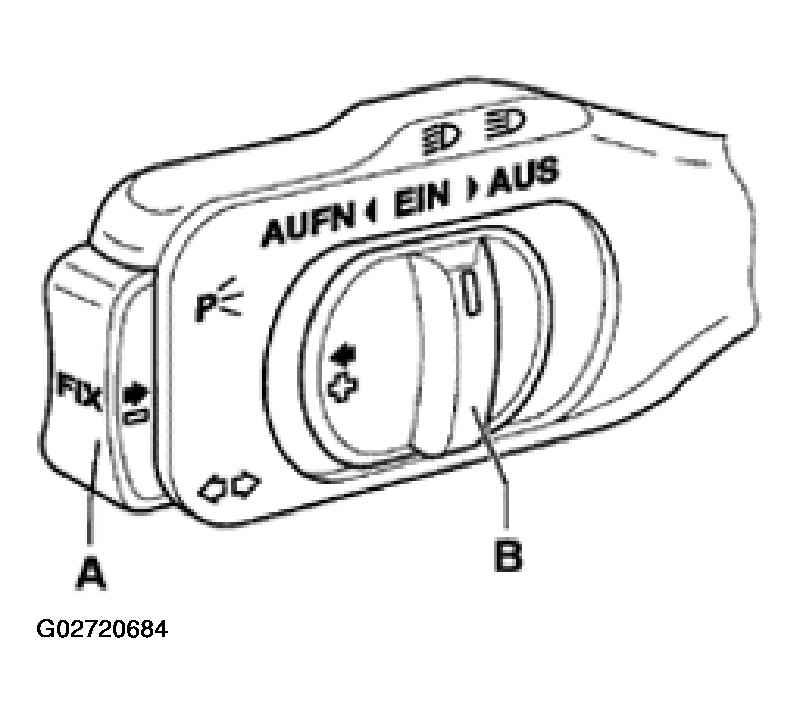

Fig 2: View Of Cruise Control Switch

Courtesy of AUDI OF AMERICA, INC.

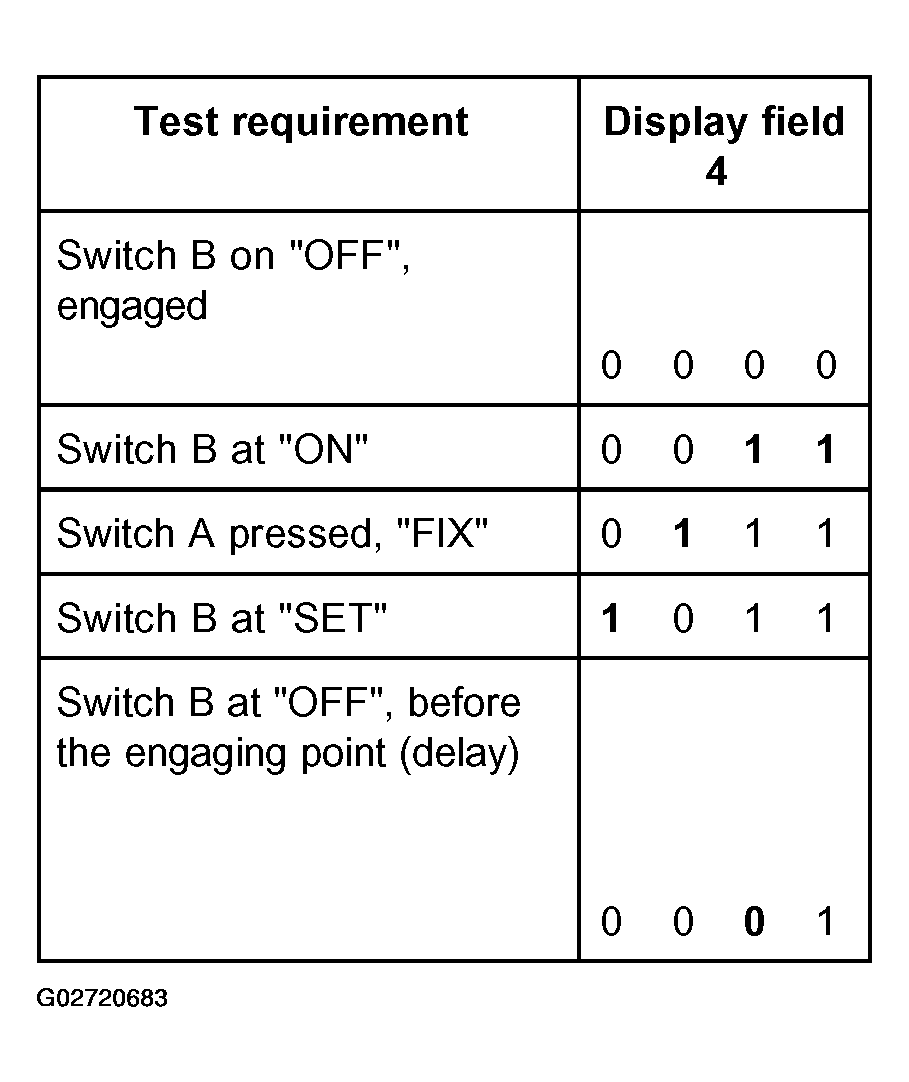

Fig 3: Cruise Control Display Field 4 (4-Digit Indication)

Courtesy of AUDI OF AMERICA, INC.

If specified values are not obtained:

Check wire connections. See CHECKING WIRE CONNECTIONS .
