Initiating "Adaptation" function 10

• Initiate output Diagnostic Test Mode of instrument cluster. See INSTRUMENT CLUSTER ON BOARD DIAGNOSTIC (OBD), INITIATING  .

Display on VAS 5051:

Fig 1: Display On VAS 5051 - Adaptation (Parking Assistance) (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

• In selection -1-, select the diagnostic function "10 -Adaptation".

Display on VAS 5051:

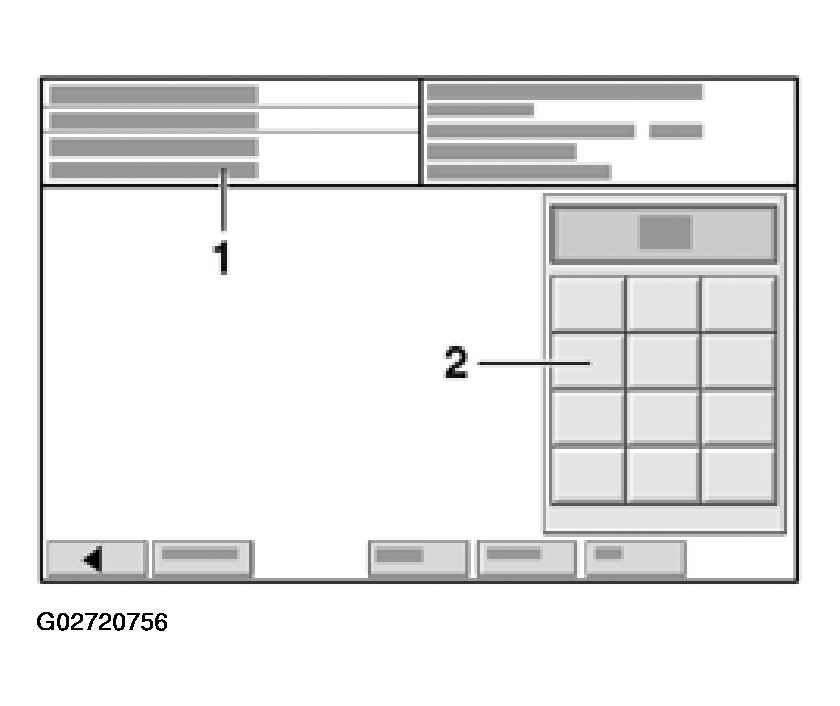

Fig 2: Display On VAS 5051 - Adaptation (Parking Assistance) (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.

1. Enter channel number Max. input value = 99

• Enter desired adaptation channel in button field -2-. See ADAPTATION TABLE  .
• Press -Q- button to confirm input.

Example for adaptation channel 01-volume of rear warning buzzer:

Display on VAS 5051:

Fig 3: Display On VAS 5051 - Volume Of Rear Warning Buzzer (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

1. Enter channel number Max. input value = 99

• Select function "01" in button field -2- for "Adaptation channel 01" and press Q button to confirm input.

Display on VAS 5051:

Fig 4: Display On VAS 5051 - Volume Of Rear Warning Buzzer (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.

1. 1 - Channel 2 read and test
2. 2 - Steering wheel X X WSC X
3. 5 - The sliding bar is positioned on the current adaptation value, e.g. 5

A - Changing adaptation value using sliding bar:

Display on VAS 5051:

Fig 5: Display On VAS 5051 - Changing Adaptation Value Using Sliding Bar, Parking Assistance (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

• Move sliding bar -5- into desired direction or press on the surface beside the sliding bar, to move it in the desired direction.
• Press "Save" button -4-.

Display on VAS 5051:

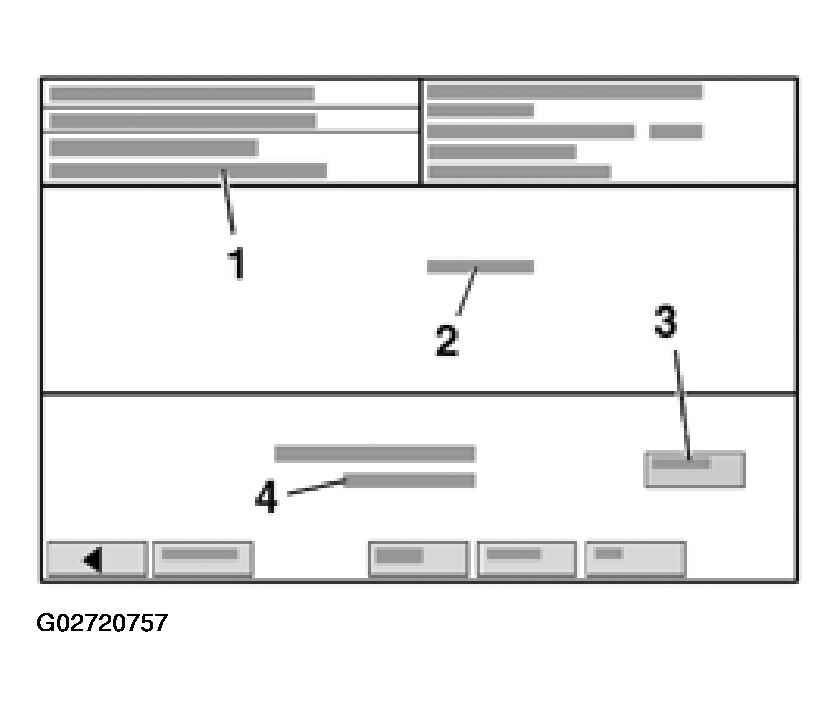

Fig 6: Display On VAS 5051 - Changing Adaptation Value Using Sliding Bar, Parking Assistance (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

1. 1 - Channel 1 save
2. 2 - Steering wheel 0 4 WSC 0
3. 4 - original value 1 new value 4

• Confirm new adaptation value by pressing the "take over" button -3-.

Display on VAS 5051:

Fig 7: Display On VAS 5051 - Changing Adaptation Value Using Sliding Bar, Parking Assistance (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

1. Channel 1 Value 4 stored

• End function "10 - Adaptation" by pressing <-- button.

B - Change adaptation value via direct input:

Display on VAS 5051:

Fig 8: Display On VAS 5051 - Change Adaptation Value Via Direct Input, Parking Assistance (1 Of 4)

Courtesy of AUDI OF AMERICA, INC.

• Press "Keypad" button -3-.

Display on VAS 5051:

Fig 9: Display On VAS 5051 - Change Adaptation Value Via Direct Input, Parking Assistance (2 Of 4)

Courtesy of AUDI OF AMERICA, INC.

1. Enter adaptation value Input value: 0 to 65535

• Enter 5-digit adaptation value in button field -2-. Insert zeros in front.

Example:

Desired input value: 4

Keypad input: 00004

• Press -Q- button to confirm input.

Display on VAS 5051:

Fig 10: Display On VAS 5051 - Change Adaptation Value Via Direct Input, Parking Assistance (3 Of 4)

Courtesy of AUDI OF AMERICA, INC.

1. 1 - Channel 1 save
2. 2 - Steering wheel 0 4 WSC 0
3. 4 - original value 1 new value 4

• Confirm new adaptation value by pressing the "take over" button -3-.

Display on VAS 5051:

Fig 11: Display On VAS 5051 - Change Adaptation Value Via Direct Input, Parking Assistance (4 Of 4)

Courtesy of AUDI OF AMERICA, INC.

1. Channel 1 Value 4 stored

• End function "10 - Adaptation" by pressing <-- button.
