Measuring Value Block 007

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

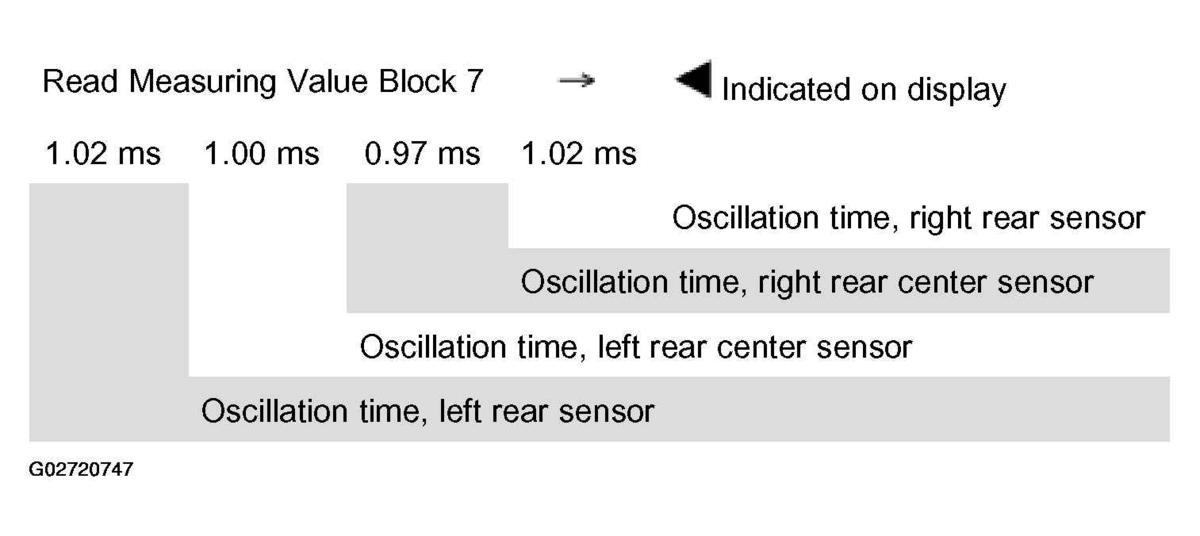

Fig 1: Measuring Value Block 007 - 8-Channel Parking Assistance

Courtesy of AUDI OF AMERICA, INC.

NOTE: If values are obtained that are greater than 4.00 ms with parking assistance on, either the ultrasound sensor in question is malfunctioning or there is an open circuit in the wiring.
