Rear lid contact switch, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Remove tailgate lock.

See TAILGATE LOCK AND HANDLE MECHANISM, REMOVING AND INSTALLING .

Disconnect harness connector.
Using a flat screwdriver, unlock plastic catch -3- at both expanding rivets -4- on removed tailgate lock -1-.
Press lever -2- in direction of arrow and fold plastic catch -3- toward rear.

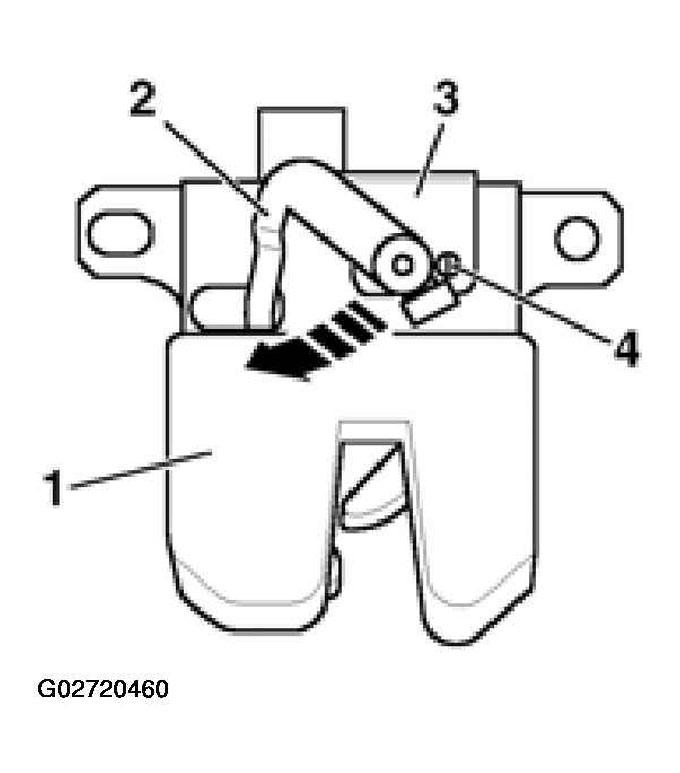

Fig 1: Pressing Lever & Folding Plastic Catch For Rear Lid Contact Switch

Courtesy of AUDI OF AMERICA, INC.

Carefully remove contact switch -3- from tailgate lock -1-.

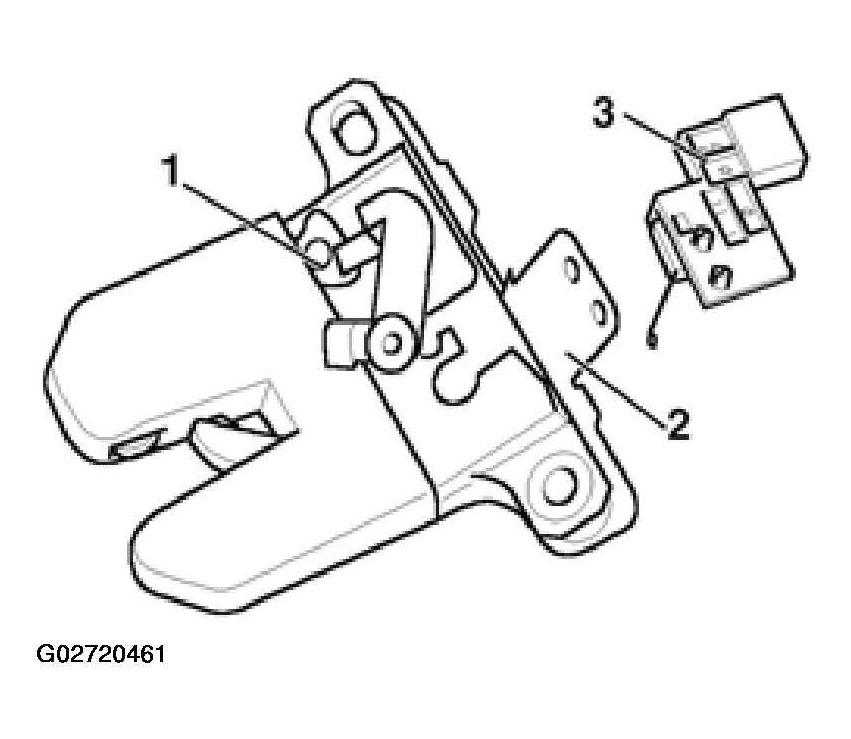

Fig 2: Removing Rear Lid Contact Switch From Tailgate Lock

Courtesy of AUDI OF AMERICA, INC.
