Tailgate lock and handle mechanism, removing and installing

The following list pertains to Fig 1.

1. Tailgate lock
   NOTE:

   • The tailgate lock consists of two locks (two stage).
   • For installation to be correct, the tailgate lock must lock in the second stage (main lock).
   • To remove, swing out hinge arm -2- from operating rod -4- and unhook from tailgate lock.
   • Remove nuts -3- and remove tailgate lock.
2. Hinge arm
   • After installing tailgate lock move operating rod over.
3. Nuts
   • 8 Nm (71 in. lb)
4. Operating rod
   • Adjust operating rod so that there is no tension or play
   • For installation to be correct, tailgate lock must lock in second stage (main lock)
5. Nuts
   • 8 Nm (71 in. lb)
6. Handle mechanism

   Removing:

   • Remove tailgate trim.
   • Unclip operating rod -4- from handle mechanism.
   • Remove nuts -5- and remove handle mechanism.
7. Actuator element
   • Removing, see REAR LID LOCK ACTUATOR, REMOVING AND INSTALLING .
8. Lock cylinder

   Removing:

   • Remove handle mechanism.
   • Remove operating rod. See REAR LID LOCK ACTUATOR, REMOVING AND INSTALLING .
   • Remove lock cylinder from handle mechanism.

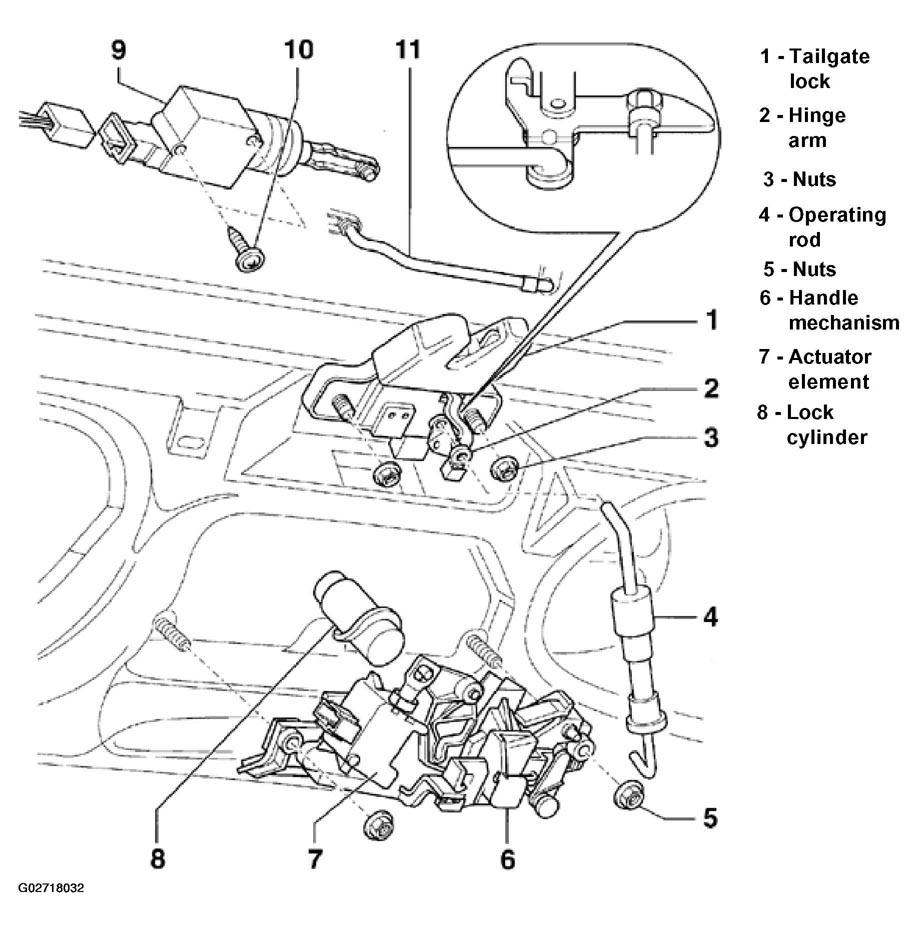

Fig 1: Tailgate Lock Mechanism
