Interior monitoring switch, removing and installing: Removing:
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove driver-side B-pillar trim.
See UPPER B-PILLAR TRIM, REMOVING AND INSTALLING and LOWER B-PILLAR TRIM, REMOVING AND INSTALLING .
- Disconnect electrical harness connector.
- Using a small screwdriver, press mounting clip of switch in sideways.

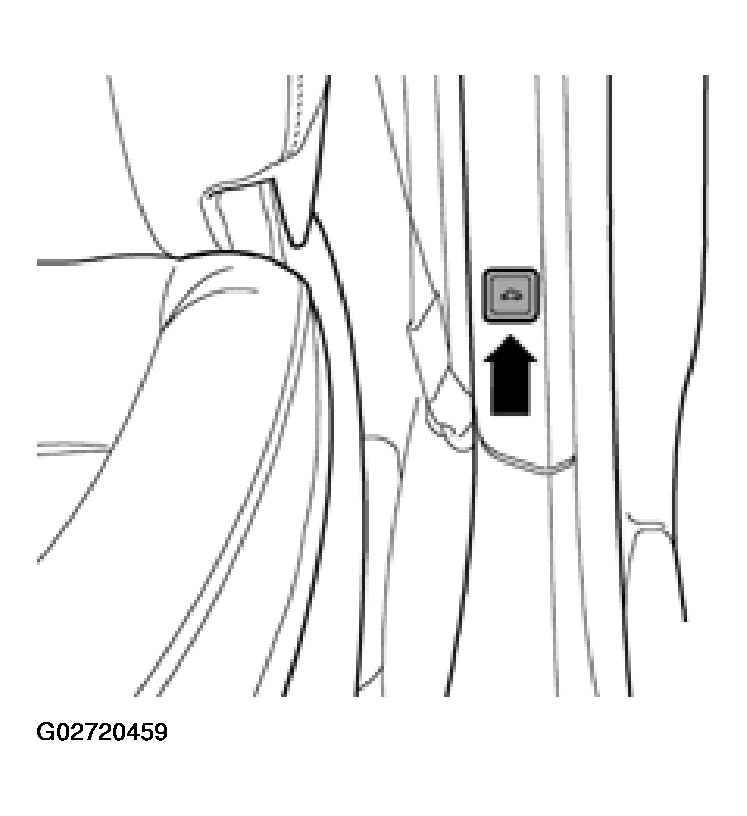

- Press interior monitoring switch (arrow) out of B-pillar trim toward front.
