Rear warning buzzer for parking -H15- (Avant), removing and installing: Removing
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

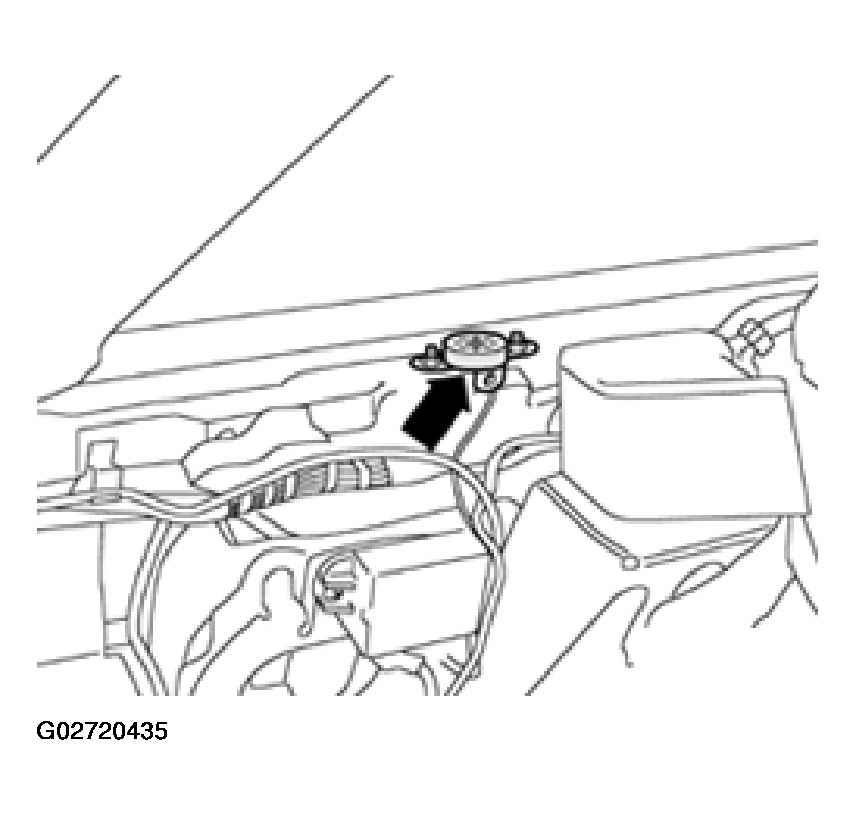

Installation location: Rear left beside suspension strut dome.
- Remove left luggage compartment trim.
See CARGO AREA FLOOR TRIM AND SUPPORTS (AVANT), REMOVING AND INSTALLING .
- Disconnect electrical connection.
- Unclip warning buzzer and pull out upward.
