Parking aid sensors (front where applicable), removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Installation location: In bumper (arrows).

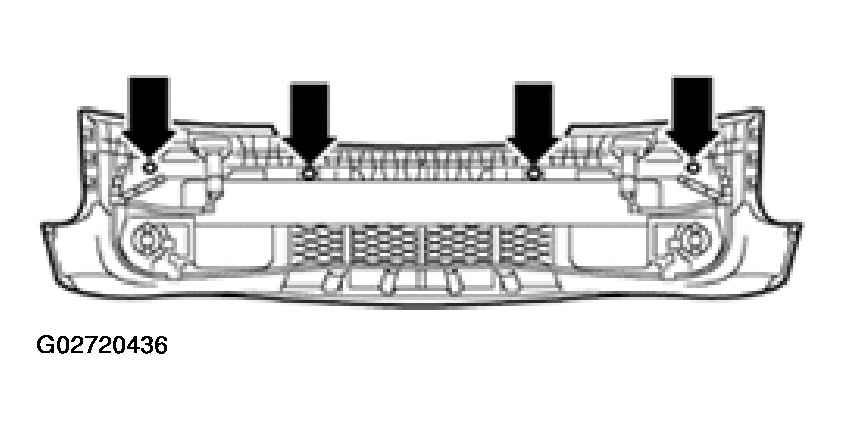

Fig 1: Location Of Parking Aid Sensors (Front, Where Applicable)

Courtesy of AUDI OF AMERICA, INC.

Remove respective wheelhousing liner on outside to remove sensors.
See WHEELHOUSING LINER, FRONT .
Open hood to remove inner sensors.
Disconnect electrical connection -1- at sensor.
Press both catches to side (arrows) and press sensor through from outside toward inside.

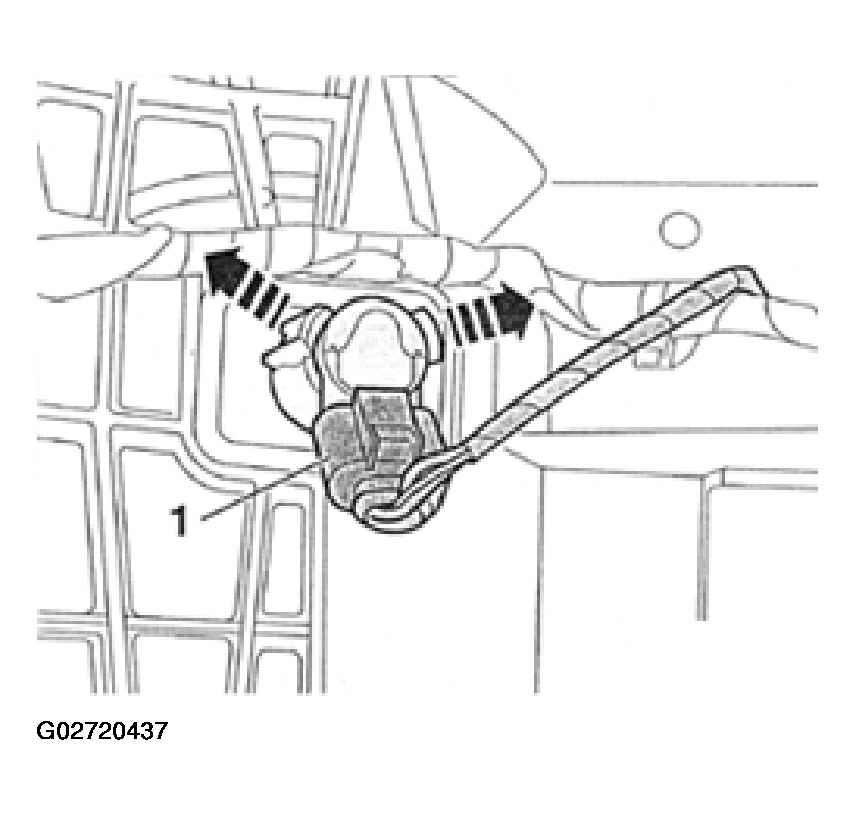

Fig 2: Removing Front Parking Aid Sensor

Courtesy of AUDI OF AMERICA, INC.

Remove parking aid sensor toward the inside.
