Wheelhousing liner, front

NOTE: The following list refers to Fig 1 .
  1. Fender
  2. Torx(R) bolt (T25)
    • 1.5 Nm (13 in. lb)
  3. Wheelhousing liner, front
    • Remove front wheel prior to removing wheelhousing liner

      Removing:

      • Release clamping pins -6-.
      • Remove Torx(R) bolts -2- (Qty. 3).
      • Disengage wheelhousing liner from fender and pull out in downward direction.
  4. Expanding nuts
    • Qty. 13
  5. Sill panel trim

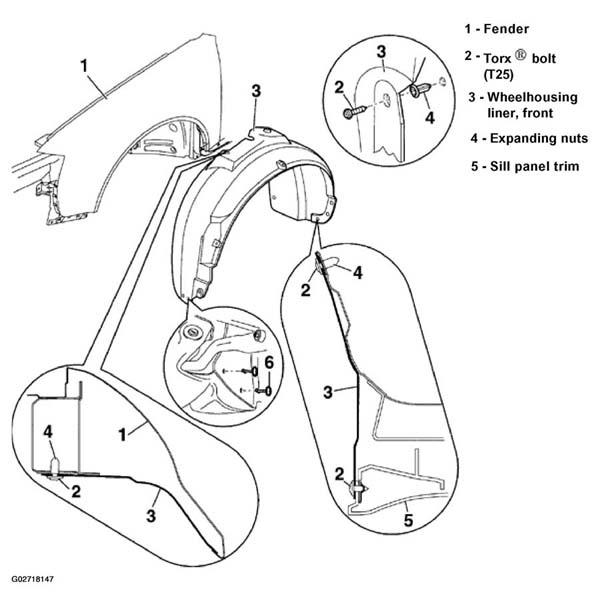

    6. Fig 1: Identifying Wheel Housing Liner Assembly (Front)
    G02718147Courtesy of AUDI OF AMERICA, INC.
