Vehicles with front wheel drive:

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Sender for fuel gauge is located below the floor cover of the luggage compartment.

Unscrew cover for connector flange below the luggage compartment carpet.
NOTE: To do so, remove luggage compartment floor on the Avant.

See CARGO AREA FLOOR TRIM AND SUPPORTS (AVANT), REMOVING AND INSTALLING .
Carefully disengage and disconnect 4-pin harness connector (arrow).

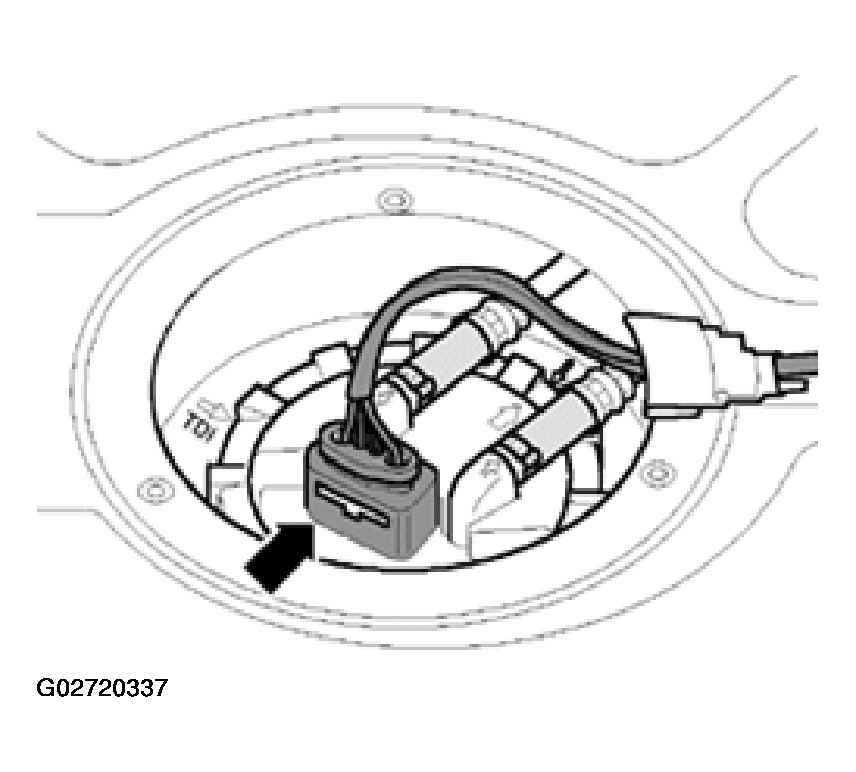

Fig 1: Disconnecting 4-Pin Harness Connector (Front Wheel Drive)

Courtesy of AUDI OF AMERICA, INC.

NOTE: Terminal assignment for vehicles with front and all wheel drive is identical.
