Instrument cluster, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: It is not necessary to remove the steering wheel to remove the instrument cluster.

If replacing a malfunctioning instrument cluster with a new one, note odometer reading on existing cluster prior to removal.

Determine input values for replacing instrument cluster (i.e.: SRI values etc. where applicable):
See INPUT VALUES FOR REPLACING INSTRUMENT CLUSTER .
Adjust steering wheel completely out and downward.
Press cover -1- upward at side and then remove cover from instrument panel.

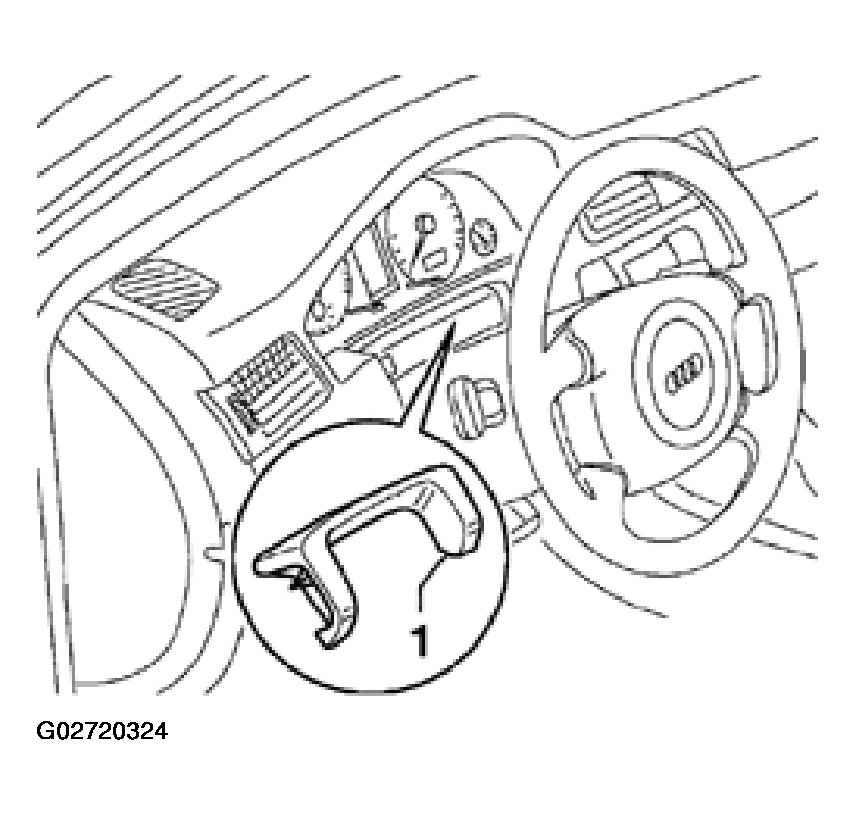

Fig 1: Removing Cover From Instrument Cluster

Courtesy of AUDI OF AMERICA, INC.

Remove Phillips head screws -1-.

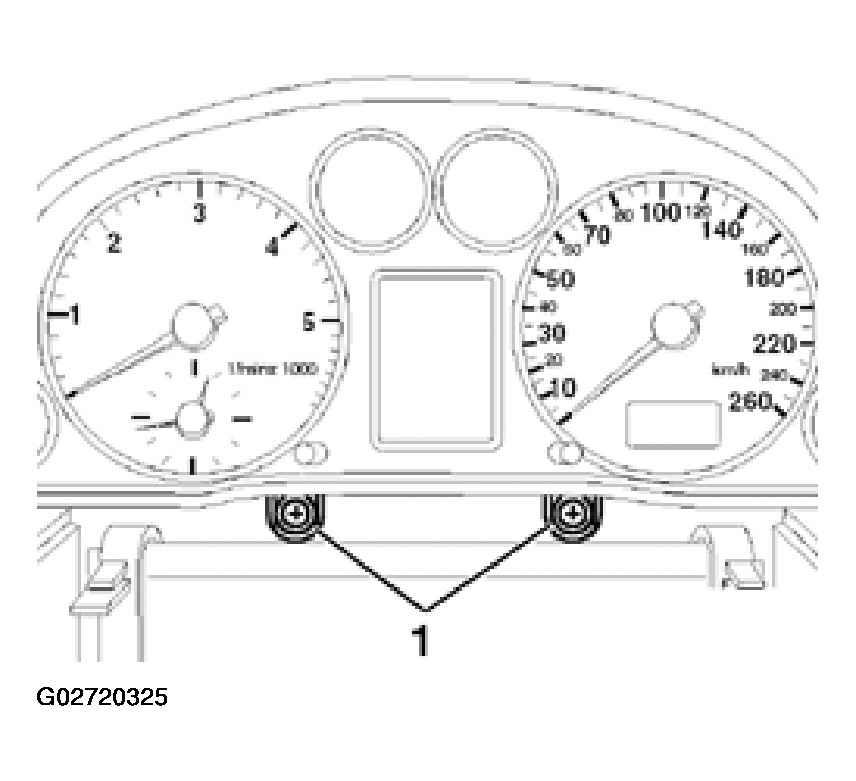

Fig 2: Removing Phillips Head Screws From Instrument Cluster

Courtesy of AUDI OF AMERICA, INC.

Pull out instrument cluster toward front.
Cut cable ties at rear of instrument cluster.
Unclip securing latches of connectors and disconnect connectors.
