Rear lid lock actuator, removing and installing

The following list pertains to Fig 1.

1. Release handle
   • To remove, disengage locating hooks and pull out release handle.
2. Seal
3. Lock actuator

   Removing:

   • Rear lid lining removed
   • Locking system removed
     • Using screwdriver, press in and disengage locating hooks on left release handle -1- in direction of arrows -A-.
     • Pull left release handle -1- downward out of handle mechanism -4-.
     • Remove Phillips-head screws -B- and remove lock actuator.
4. Handle mechanism
   • Removing, see REAR LID LOCK AND HANDLE MECHANISM, REMOVING AND INSTALLING .
5. Lock cylinder
   • Sealant is sprayed on

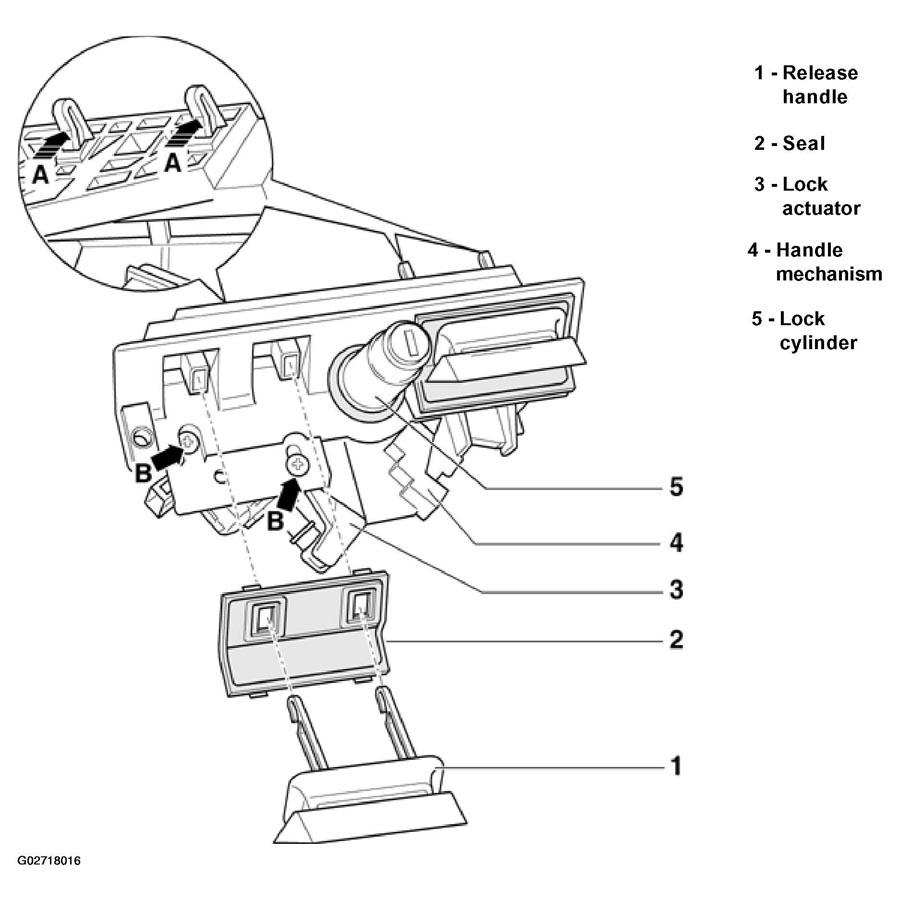

Fig 1: Exploded View Of Rear Lid Lock Actuator
Courtesy of AUDI OF AMERICA, INC.
