Display group overview:

NOTE: Some OBD program text/data generated by control modules may not be recognized by VAG 1551/1552 scan tools with the latest program card. For example: scan tool display shows "text 799", "01529 /references" or similar. In these cases, use VAS 5051 tester instead.

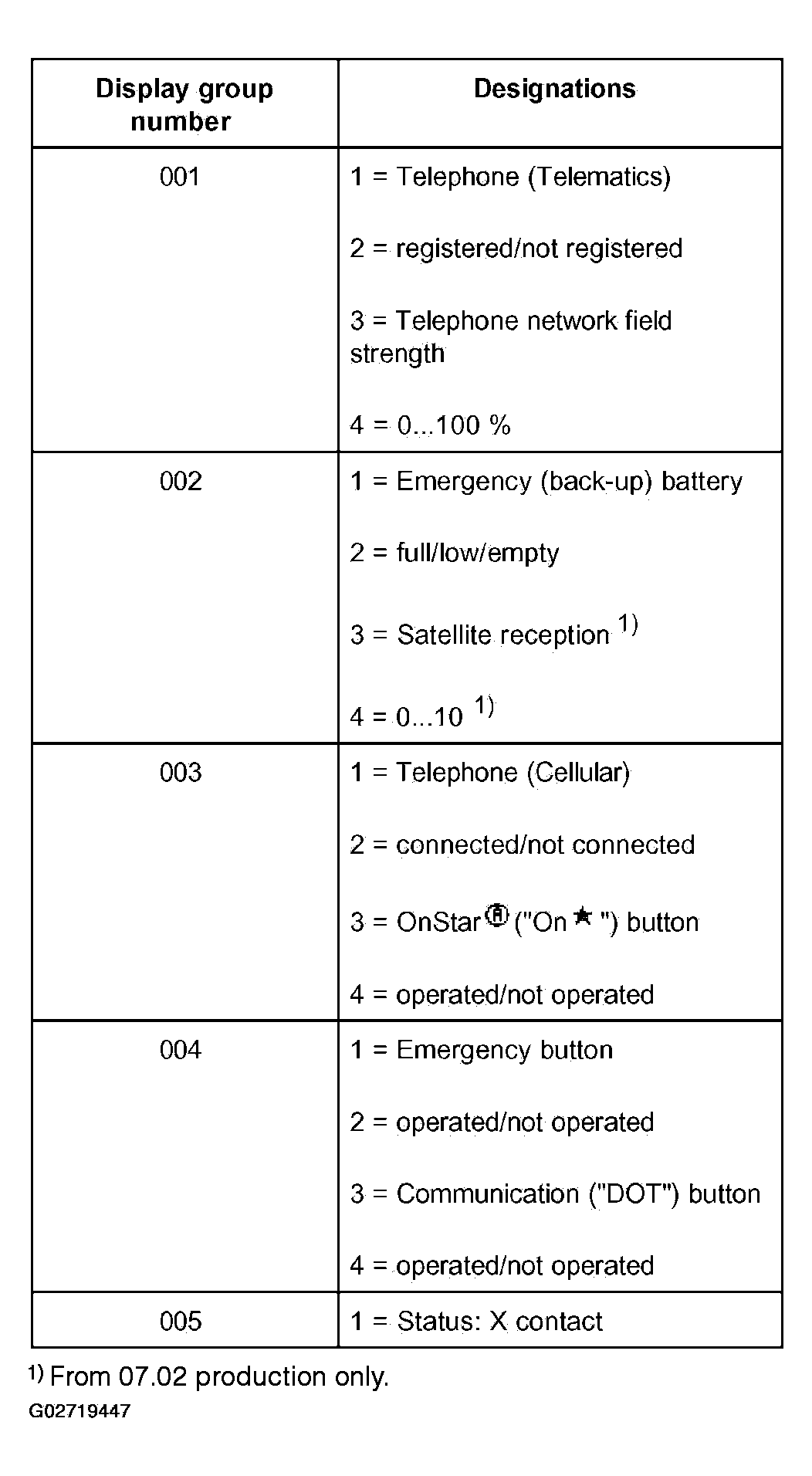

Fig 1: Overview Of Display Group (001 To 005) - Telematics

Courtesy of AUDI OF AMERICA, INC.

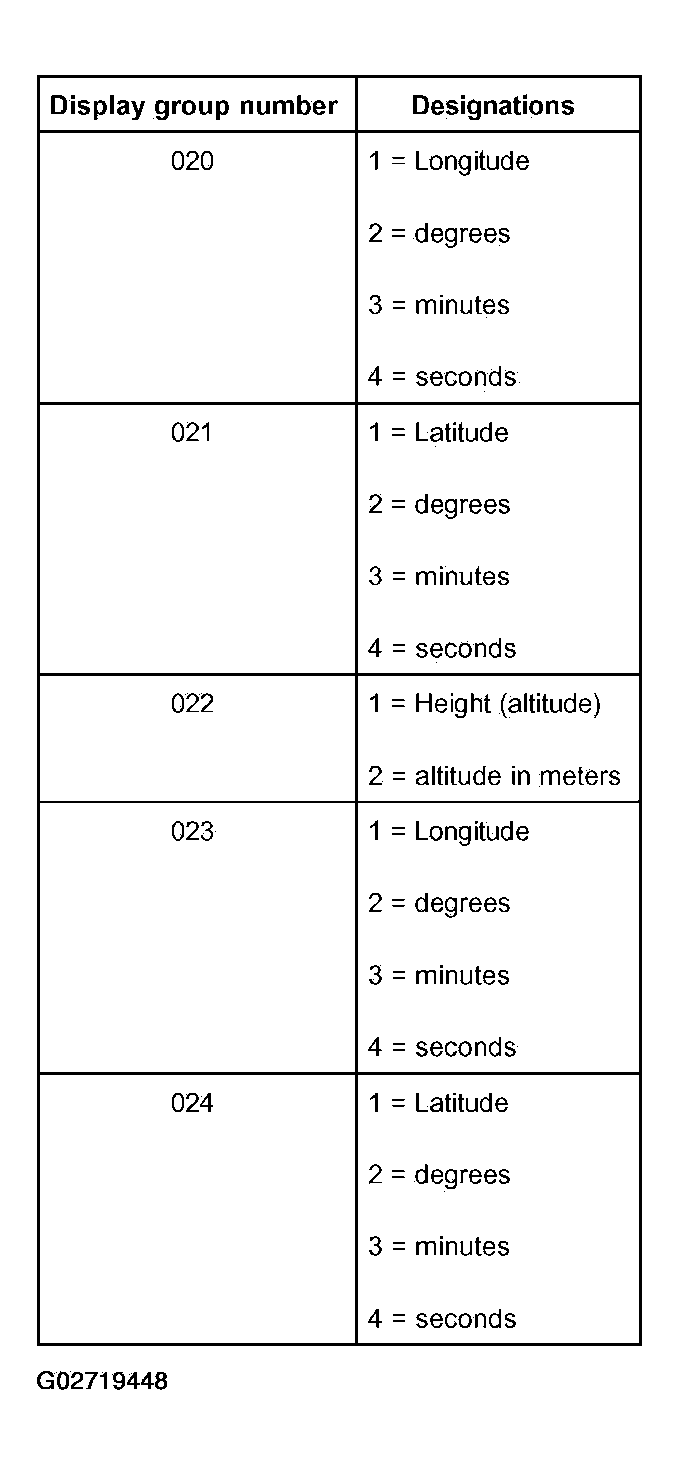

Fig 2: Overview Of Display Group (020 to 024) - Telematics

Courtesy of AUDI OF AMERICA, INC.

NOTE: Display groups 020 to 025 and 028 have no meaning for service.

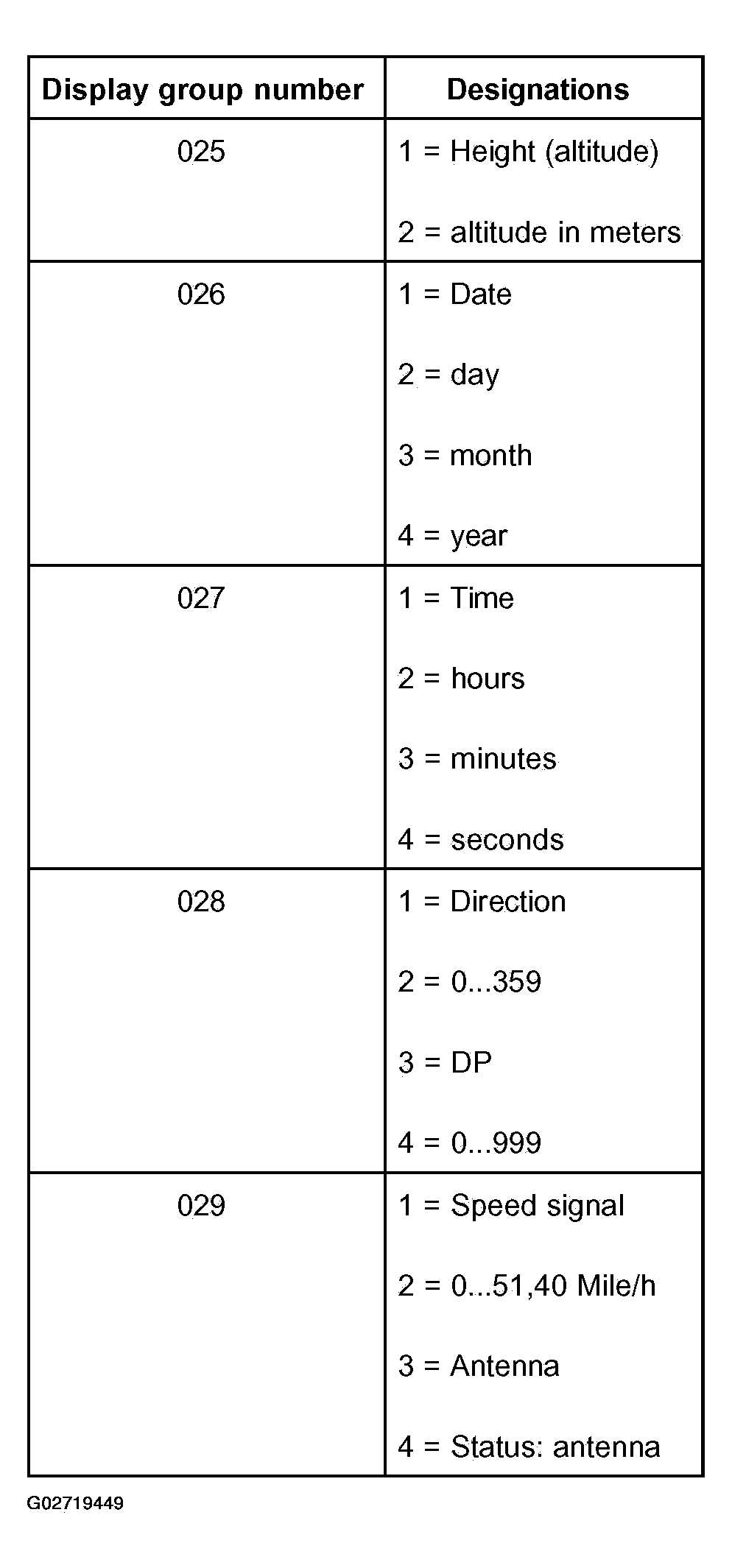

Fig 3: Overview Of Display Group (025 To 029) - Telematics

Courtesy of AUDI OF AMERICA, INC.

NOTE: Display groups 020 to 025 and 028 have no meaning for service.

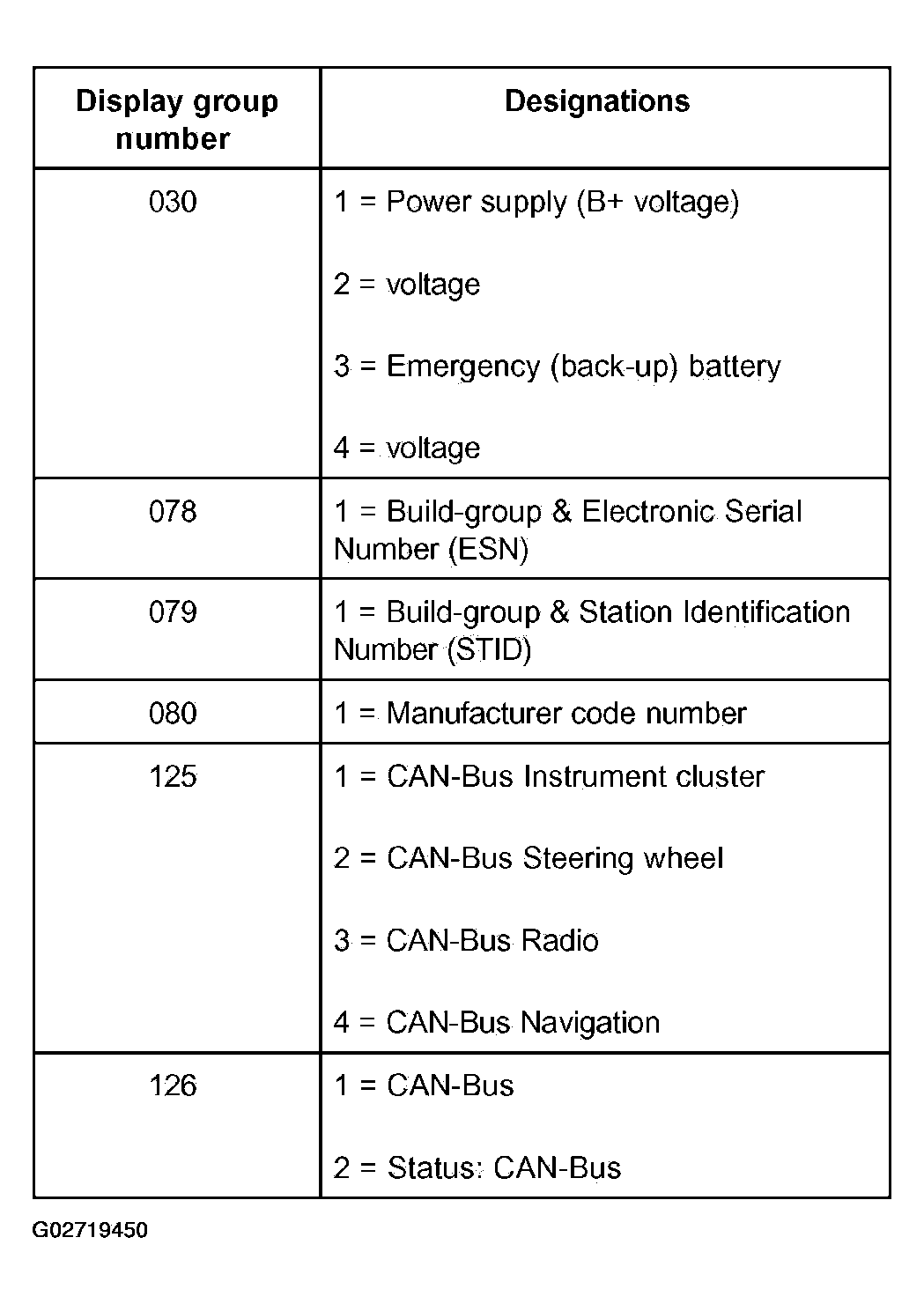

Fig 4: Overview Of Display Group (030 To 126) - Telematics

Courtesy of AUDI OF AMERICA, INC.
