Rear fog light bulb -L46-, removing and installing
>>
Removing
Rear fog light bulb -L46-, removing and installing: Removing
Remove trim for rear trunk lid. See
REAR LID TRIM, REMOVING AND INSTALLING
.
Turn bulb holder -1- for rear fog light bulb clockwise and pull out.

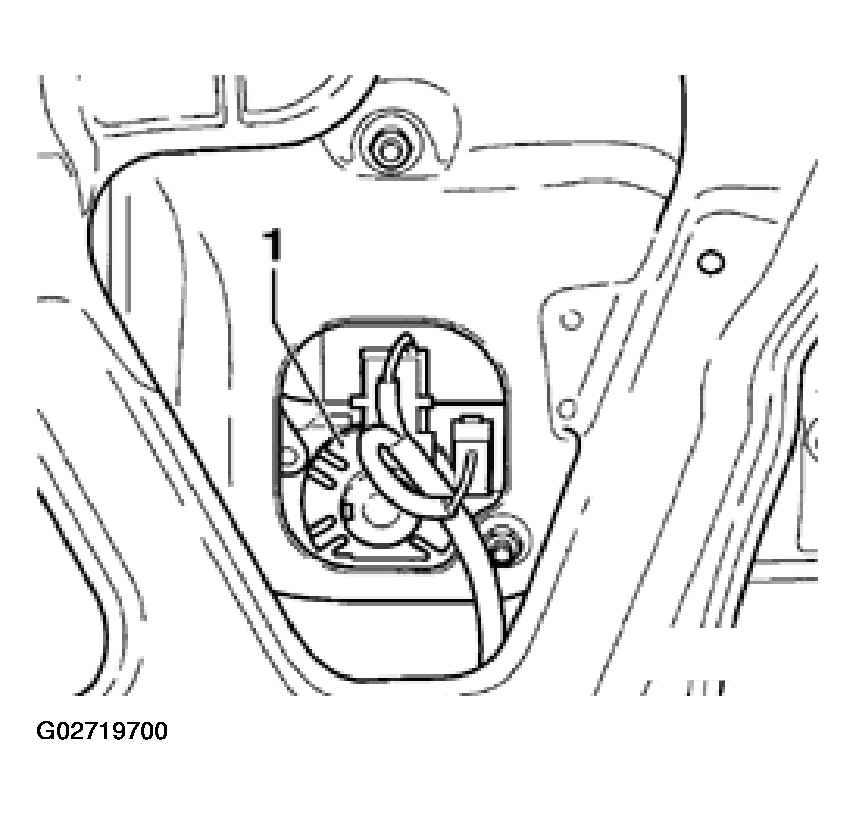

Fig 1: Locating Bulb Holder For Rear Fog Light Bulb
Replace bulb (12 V, 21 W).
