Automatic headlight beam adjustment, overview: Notes
(For Xenon headlights only)
NOTE:

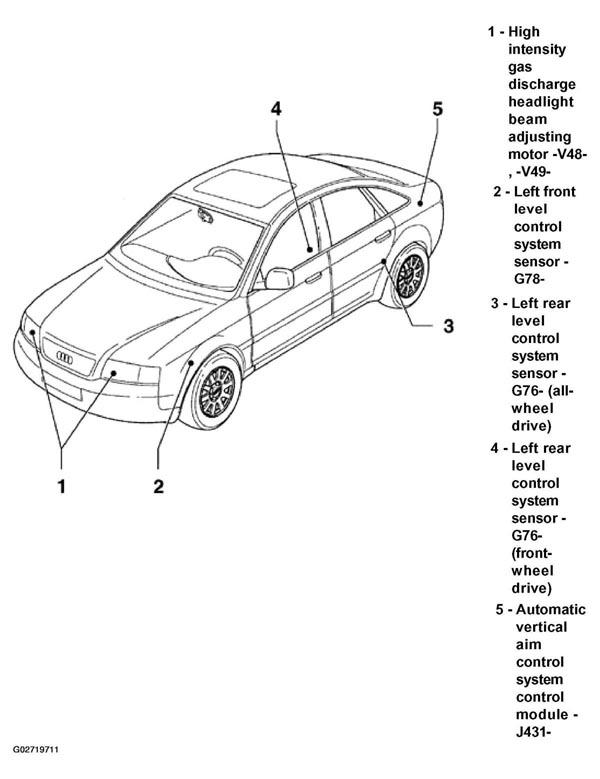

The following list refers to Fig 1
.
- High intensity gas discharge headlight beam adjusting motor -V48-, -V49-
- Removing and installing. See HEADLIGHT BEAM ADJUSTING MOTORS -V48- AND -V49-, REMOVING AND INSTALLING .
- Left front level control system sensor -G78-
- Located at left front control arm of front axle
- Removing and installing. See LEFT FRONT LEVEL CONTROL SYSTEM SENSOR -G78-, REMOVING AND INSTALLING .
- Left rear level control system sensor -G76- (all-wheel drive)
- Located at rear axle control arm
- Removing and installing. See REMOVING (ALL-WHEEL DRIVE) .
- Left rear level control system sensor -G76- (front-wheel drive)
- Located at rear axle
- Removing and installing. See LEFT REAR LEVEL CONTROL SYSTEM SENSOR -G76-, REMOVING AND INSTALLING .
- Automatic vertical aim control system control module -J431-
- Behind left luggage compartment liner
- Removing and installing. See AUTOMATIC VERTICAL AIM CONTROL SYSTEM CONTROL MODULE -J431-, REMOVING AND INSTALLING .
