Removing (all-wheel drive)

The level control sensor is mounted on the left control arm of the rear axle.

• Disconnect electrical connector.
• Remove level control sensor -2- from bracket -3-.
• Disengage linkage -4- by removing nut -1-.
• Remove linkage -4- by removing nut -5- at control arm.

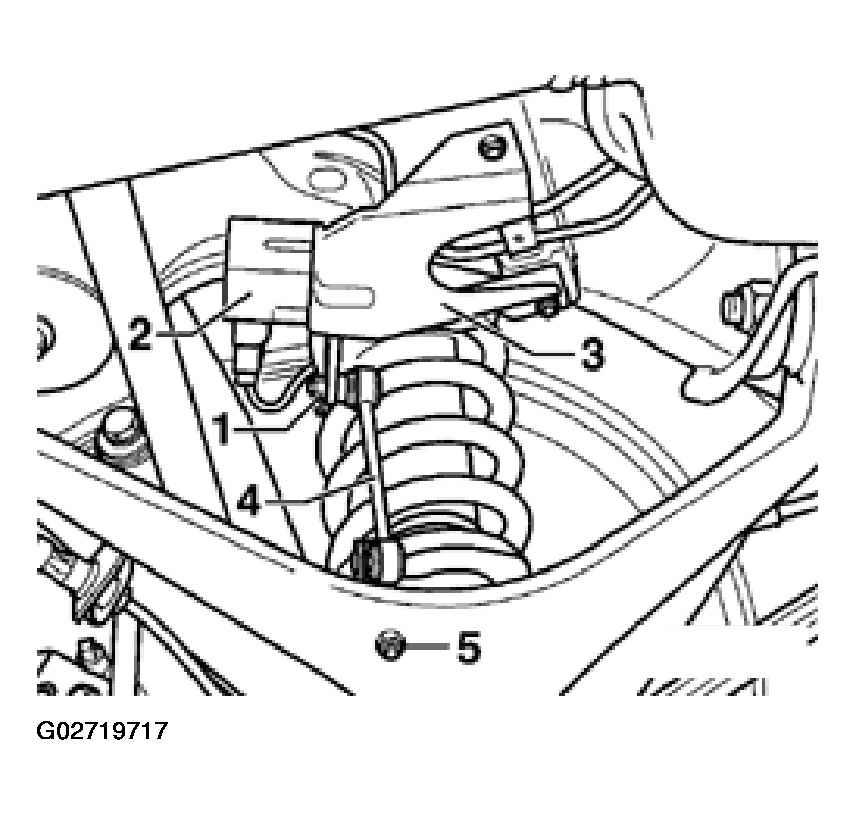

Fig 1: Removing Left Rear Level Control Sensor From Bracket (All-Wheel Drive)
