Coil Spring: Installation

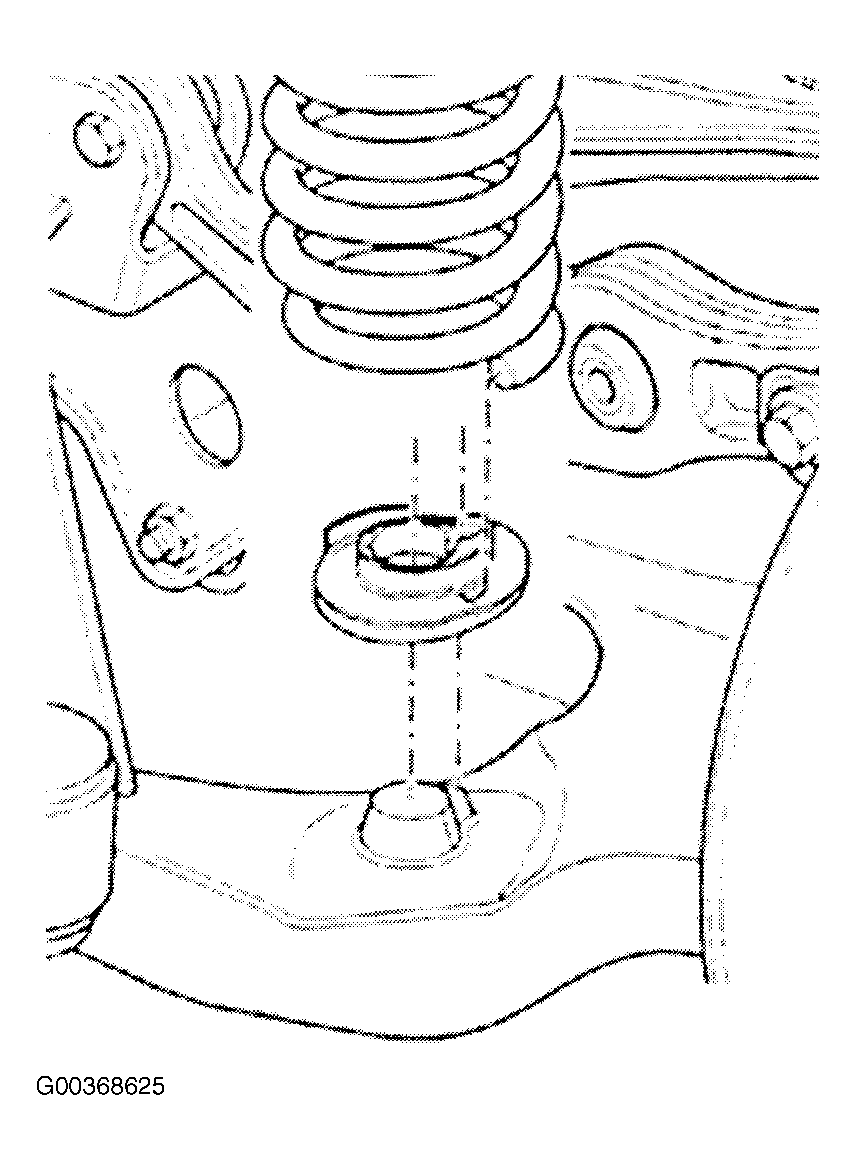

To install, reverse removal procedure. Ensure that lower spring support fits into lug on trapezoidal link, and coil spring fits up against spring stop on support. See Fig 1 . Turn upper spring support until contact with top end of spring. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
