Final Drive

WARNING: This page is about a different variant/trim than selected.

Remove filler plug (4). Fluid level must reach lower edge of filler opening. Top off transmission fluid if necessary. See RECOMMENDED FLUIDS . Always replace filler plug "O" ring. Tighten plug to specification. See TORQUE SPECIFICATIONS .

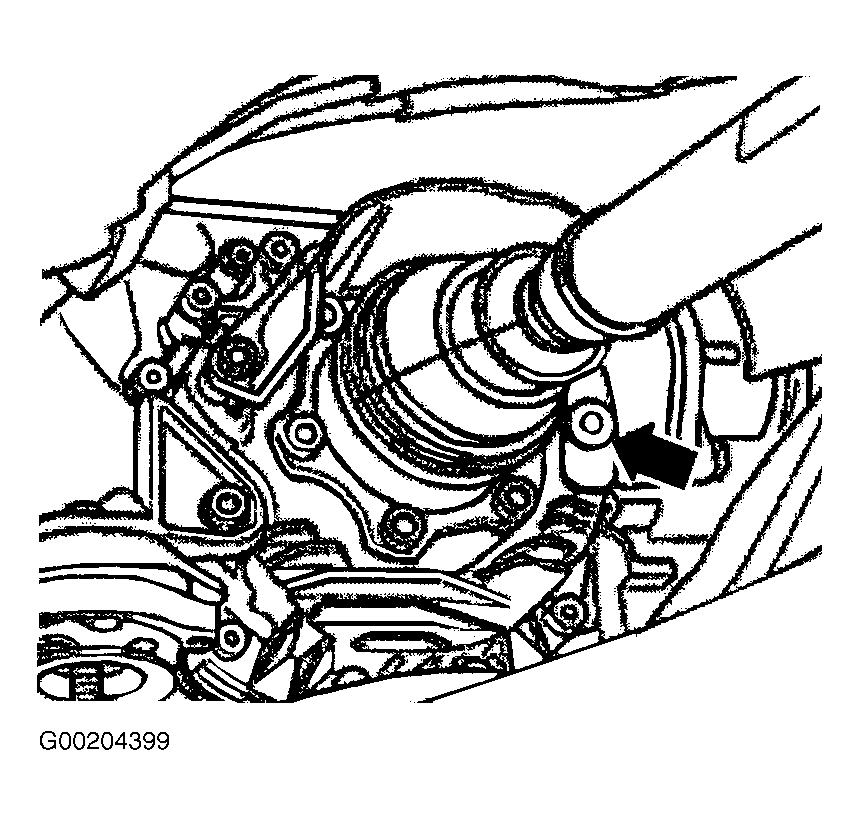

Fig 1: Checking Front Final Drive Oil Level

Courtesy of VOLKSWAGEN UNITED STATES, INC.
