01V Transaxle

WARNING: This page is about a different variant/trim than selected.
  1. Always blow through ATF cooler and ATF lines with compressed air (10 mbar, maximum) before installing transaxle. Place drip tray underneath ATF lines.
  2. Remove bolts (1 and 4). See Fig 1 . Pull ATF lines off transaxle. Connect hose on end of line (B) and fasten with hose clamp. Place other end of hose in suitable container. Using an air gun, blow compressed air through line (A) several times. Install hose on (A) and repeat procedure.
  3. Re-secure ATF lines. Tighten nuts and bolts to specification. See TORQUE SPECIFICATIONS  .

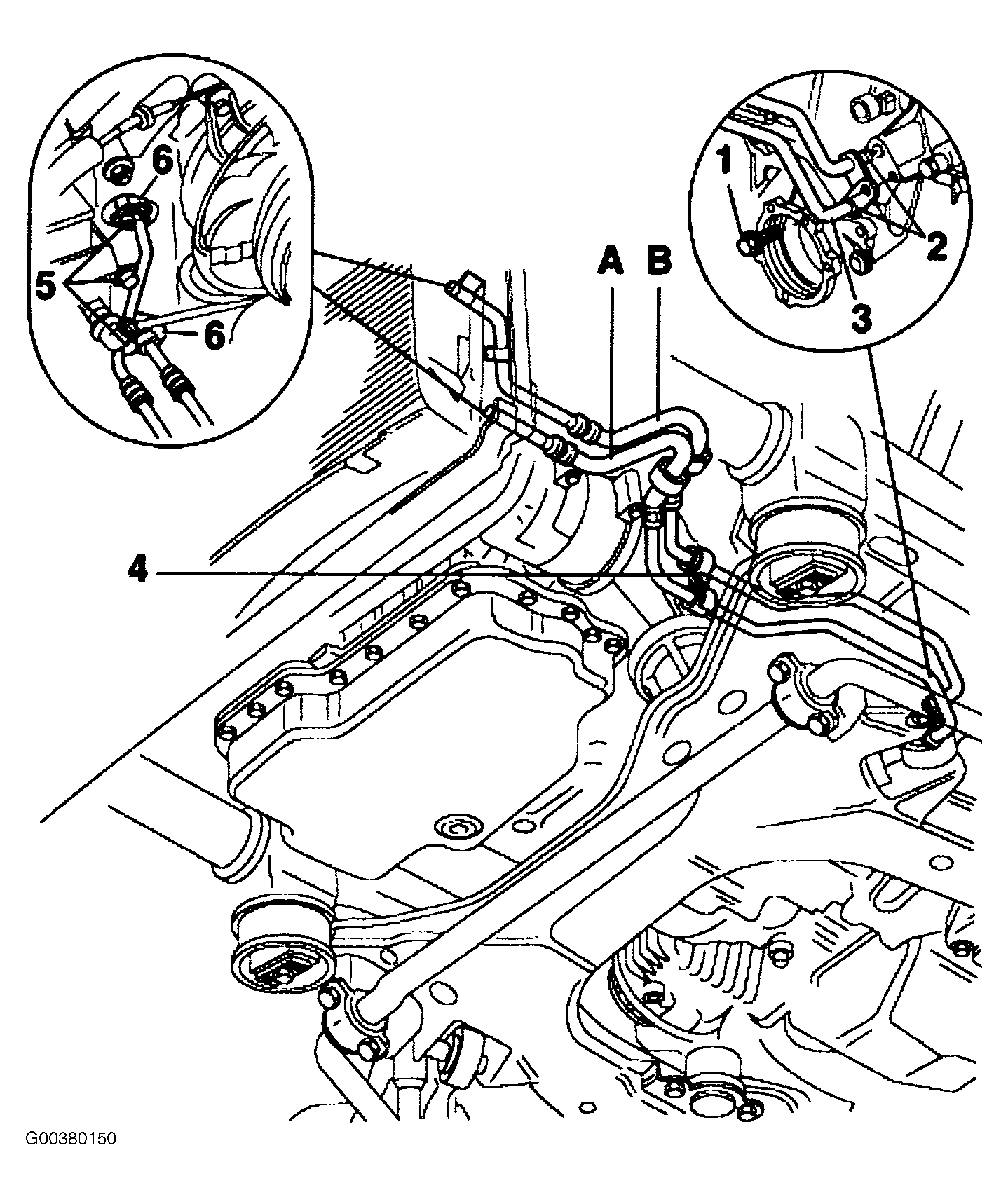

Fig 1: Identifying ATF Lines On Transaxle
G00380150Courtesy of AUDI OF AMERICA, INC.
