Selector Lever Cable: Checking

WARNING: This page is about a different variant/trim than selected.

Press selector lever cable from ball stud (D) of selector lever shaft on transmission. See Fig 1 . Move selector lever from "P" to "2" position. Selector lever must be easy to move. If necessary, replace selector lever cable or repair selector lever mechanism.

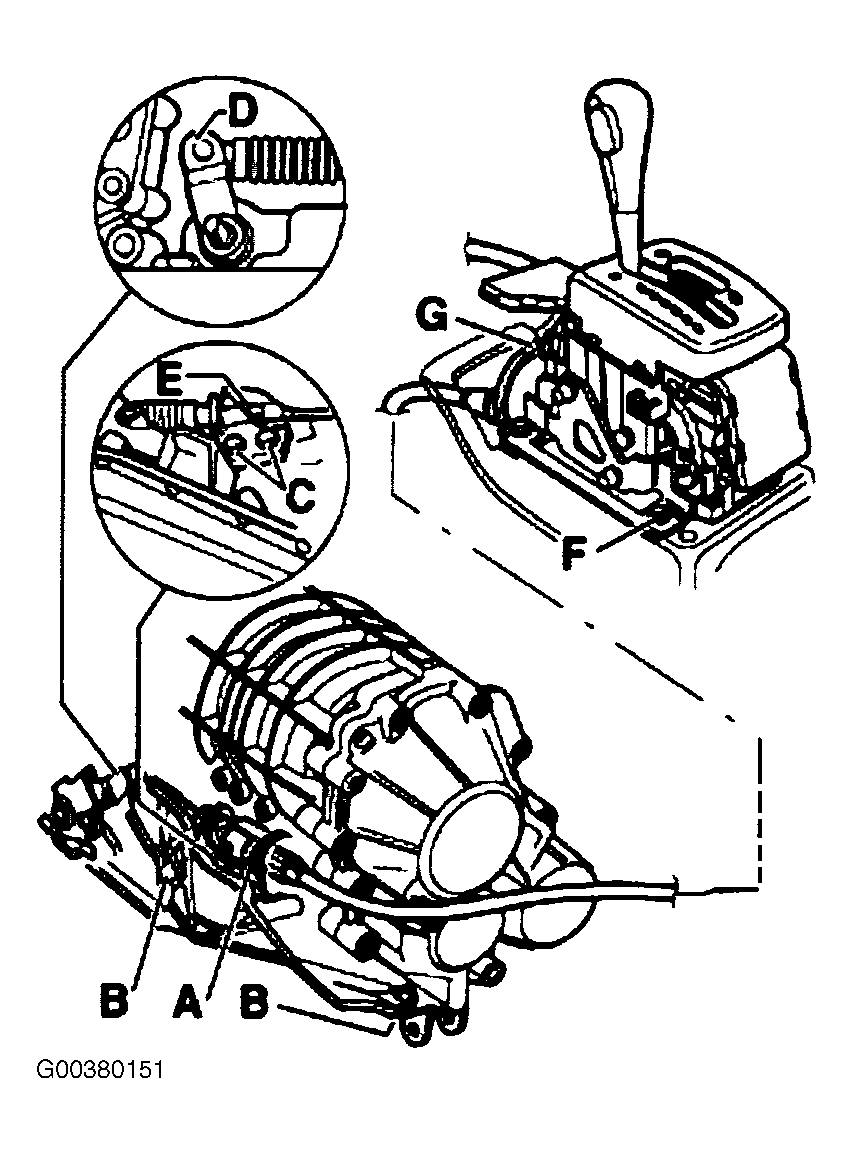

Fig 1: Checking & Adjusting Selector Lever Cable
Courtesy of AUDI OF AMERICA, INC.
Move selector lever to "P" position. Move selector lever on transmission to "P" position (rear most position). Parking lock must engage and selector lever cable can be pressed onto selector lever on transmission. If necessary, adjust selector lever cable. See Adjusting .
