Example 3

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Using the DTCs stored in the memories, you have determined that none of the control modules are sending or receiving signals.

Fig 1: Example 3 DTCs Stored In Memory - None Of The Control Modules Are Sending Or Receiving Signals

Courtesy of AUDI OF AMERICA, INC.

Switch ignition off.
Disconnect the control modules connected across the bus lines and check the bus lines for an open circuit.
See appropriate System Wiring Diagram article.

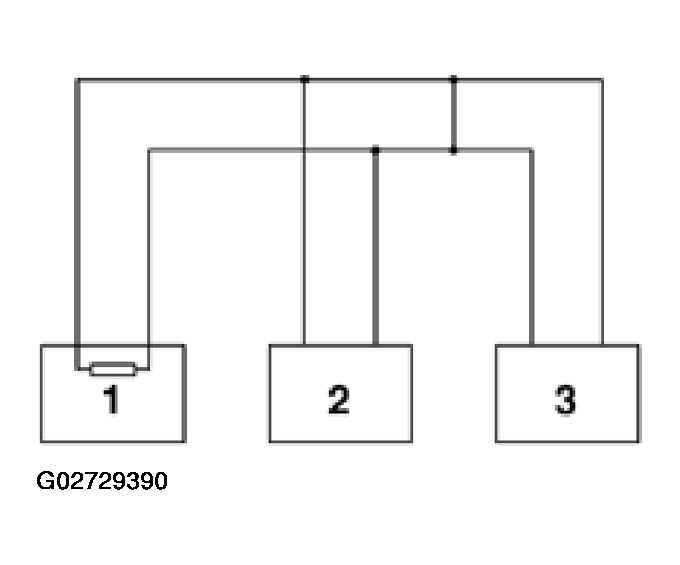

Fig 2: Schematic - Control Modules Connected Across Bus Lines

Courtesy of AUDI OF AMERICA, INC.

Check the bus lines for short circuit to B+ or Ground (GND).

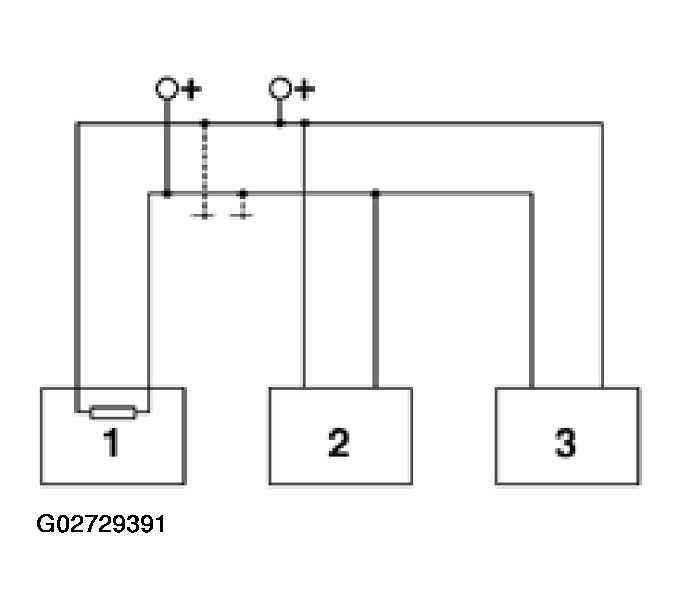

Fig 3: Schematic - Checking Bus Lines For Short Circuit

Courtesy of AUDI OF AMERICA, INC.
