Example 1

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

From the DTCs stored in the memories, you have determined that control module 1 is not communicating with control modules 2 and 3

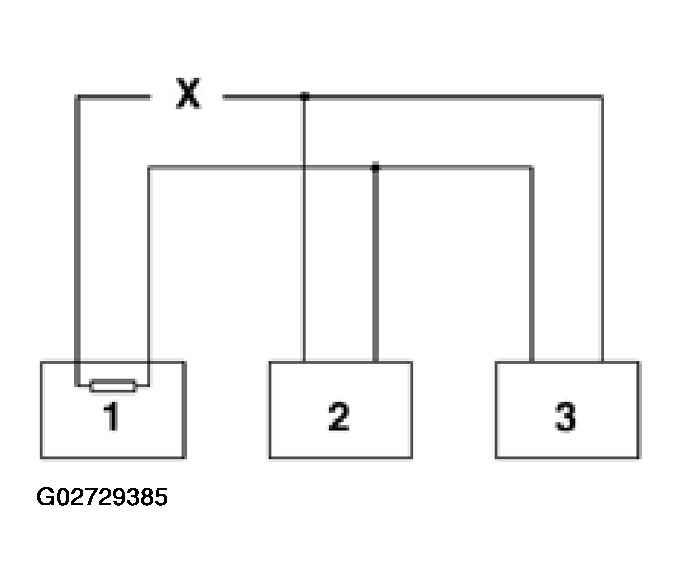

Fig 1: Schematic - Control Module 1 Is Not Communicating With Control Modules 2 & 3

Courtesy of AUDI OF AMERICA, INC.

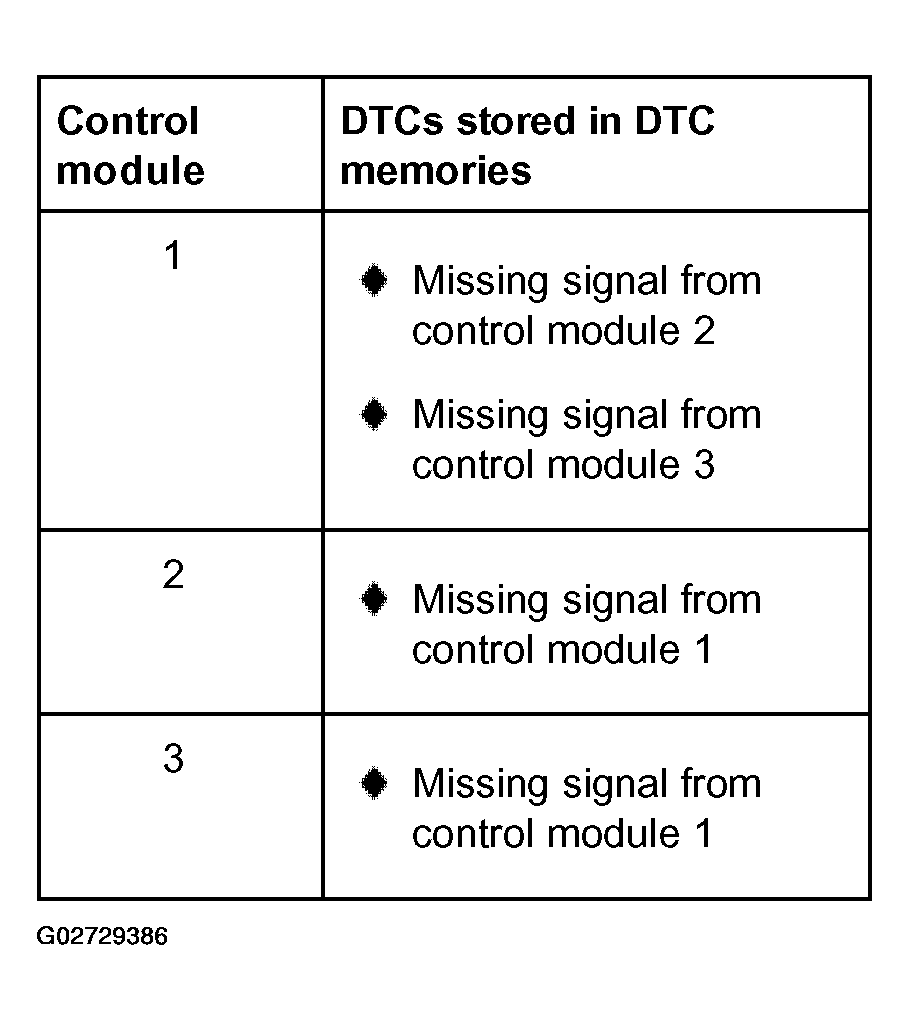

Fig 2: Example 1 DTCs Stored In Memory - Control Module 1 Is Not Communicating With Control Modules 2 & 3

Courtesy of AUDI OF AMERICA, INC.

Switch ignition off.
Disconnect the control modules connected across the bus lines and check the bus lines for an open circuit.
See appropriate System Wiring Diagram article.
If you cannot find a malfunction in the bus lines, replace control module 1.
