Measuring value block 003

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

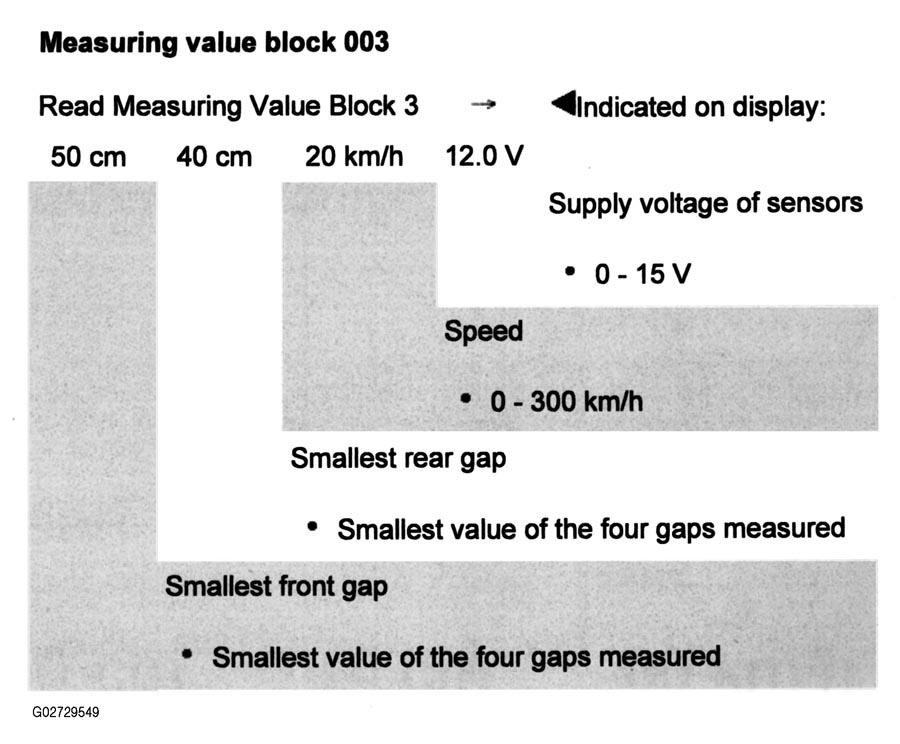

Fig 1: Measuring Value Block 003, Acoustic Parking System
G02729549Courtesy of AUDI OF AMERICA, INC.
