Right Intake Or Exhaust

WARNING: This page is about a different variant/trim than selected.

NOTE:

If the camshaft position sensor is replaced, connect the diagnosis scan tool, select "PCM", select "Miscellaneous functions" menu and then perform the "Reset Adaptive Parameters" routine.

REMOVAL

Disconnect and isolate the negative battery cable.
Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
Remove the air cleaner inlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

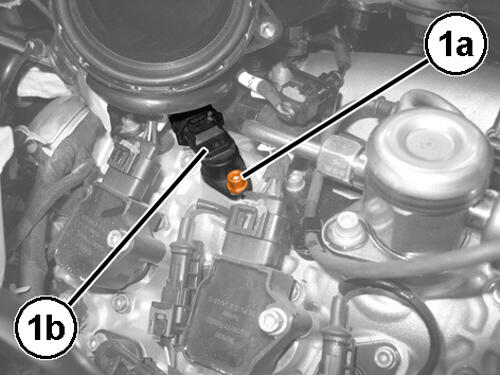

Remove the retaining screw (1a) and the camshaft position sensor (1b).

Courtesy of CHRYSLER GROUP, LLC

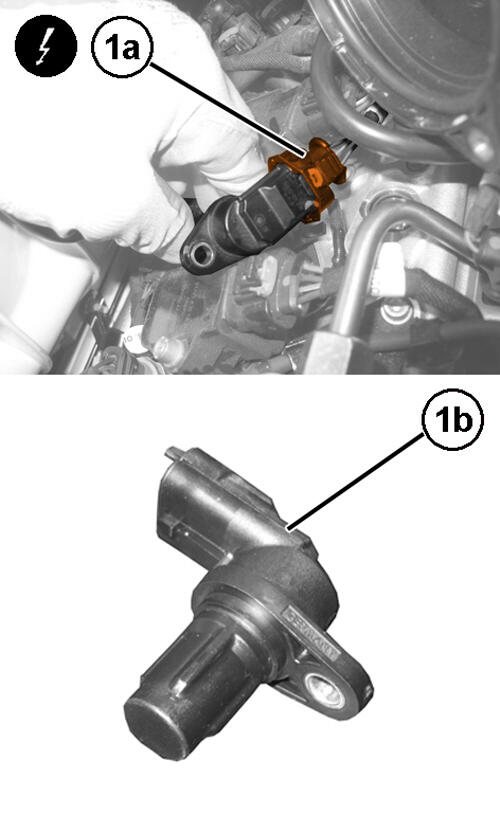

Disconnect the wiring harness connector (1a) from the camshaft position sensor (1b).
Remove the camshaft position sensor and O-ring.

INSTALLATION

Inspect the camshaft position sensor and the sensor wiring harness.

Courtesy of CHRYSLER GROUP, LLC

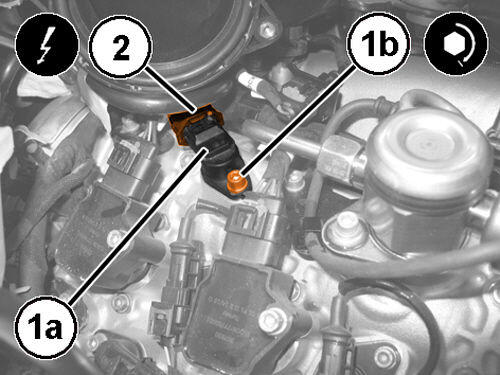

Install the camshaft position sensor (1a) with a new O-ring and tighten the screw (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
Connect the wiring harness connector (2) to the camshaft position sensor.
Install the air cleaner inlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
Connect the negative battery cable.
If the camshaft position sensor is replaced, connect the diagnosis scan tool, select "PCM", select "Miscellaneous functions" menu and perform the "Reset adaptive parameters" routine.
