Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the wheelhouse brace. Refer to BRACE, WHEELHOUSE, REMOVAL AND INSTALLATION .

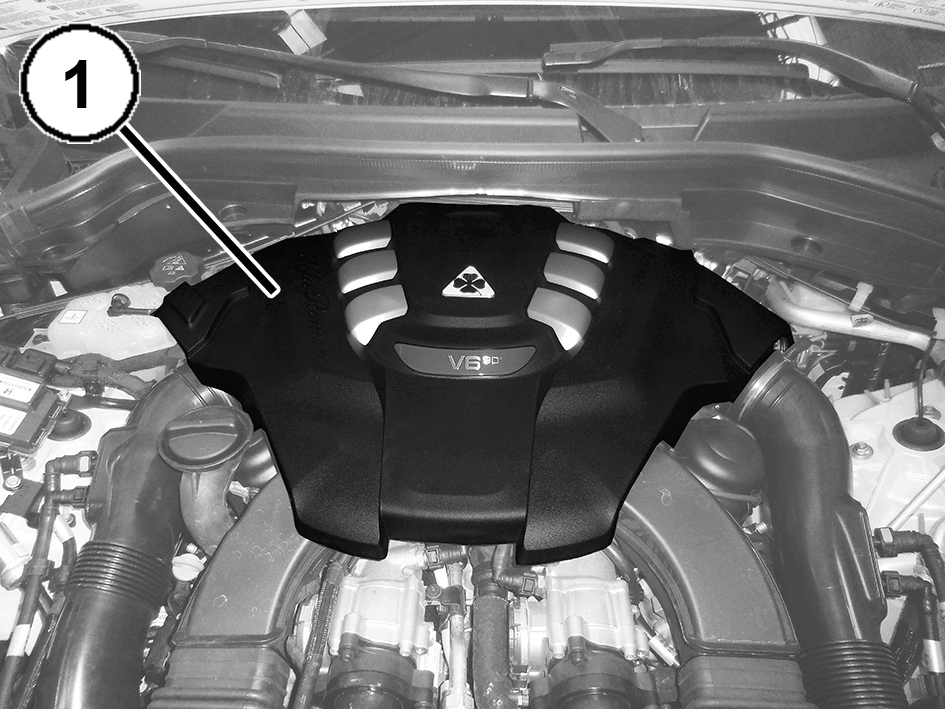

    GC0196095Courtesy of CHRYSLER GROUP, LLC
  2. Lift up on the engine cover (1) to release the retaining pins and remove it.

INSTALLATION

  1. Install the engine cover and engage the retaining pins.
  2. Install the wheelhouse brace. Refer to BRACE, WHEELHOUSE, REMOVAL AND INSTALLATION .
