Left Intake Or Exhaust

WARNING: This page is about a different variant/trim than selected.

NOTE:

If the camshaft position sensor is replaced, connect the diagnosis scan tool, select "PCM", select "Miscellaneous functions" menu and then perform the "Reset Adaptive Parameters" routine.

REMOVAL

Disconnect and isolate the negative battery cable.
Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

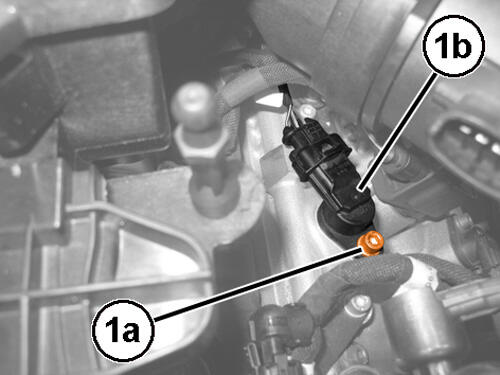

Remove the retaining screw (1a) from the camshaft position sensor (1b).

Courtesy of CHRYSLER GROUP, LLC
Disconnect the wiring harness connector (1a).
Remove the camshaft position sensor (1b) with the o-ring.

INSTALLATION

Inspect the camshaft position sensor and the sensor wiring harness.

Courtesy of CHRYSLER GROUP, LLC

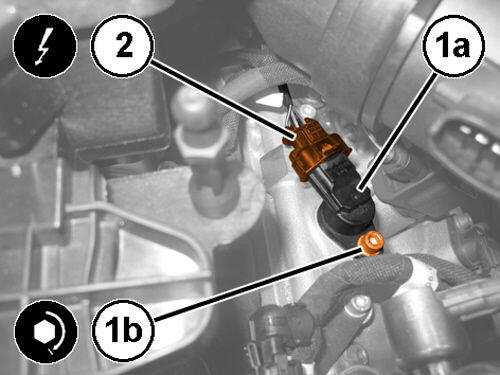

Install the camshaft position sensor (1a) with a new O-ring and tighten the screw (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
Connect the wiring harness connector (2) to the camshaft position sensor.
Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
Connect the negative battery cable.
If the camshaft position sensor is replaced, connect the diagnosis scan tool, select "PCM", select "Miscellaneous functions" menu and perform the "Reset adaptive parameters" routine.
