Right Low Pressure Fuel Line

REMOVAL

1. Remove the engine box reinforcement brace. Refer to BRACE, ENGINE BOX REINFORCEMENT, REMOVAL AND INSTALLATION .
2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

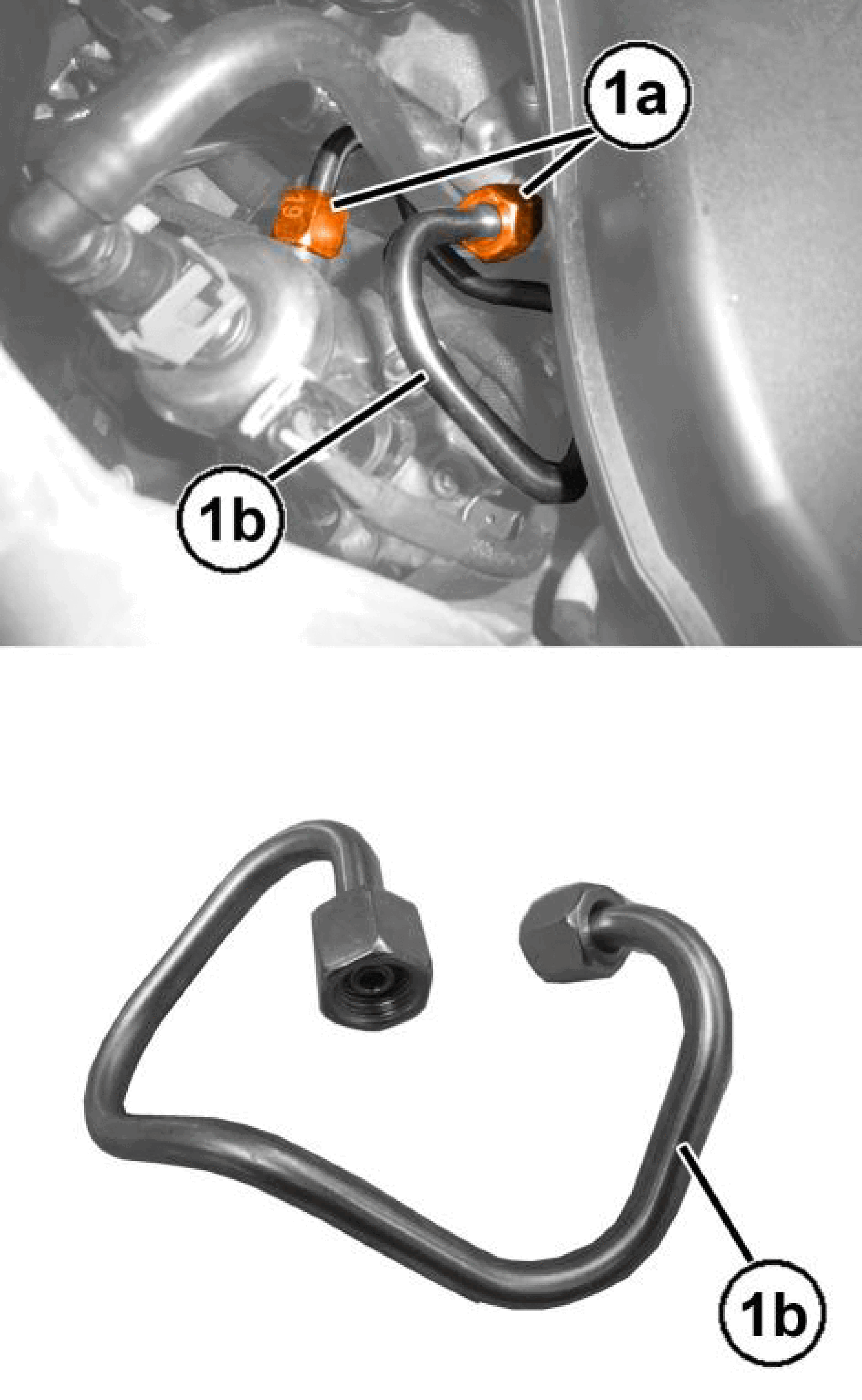

3. Unscrew the fittings (1a) and remove right low pressure fuel line from pressure pump to the fuel rail (1b) for the right cylinder head.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

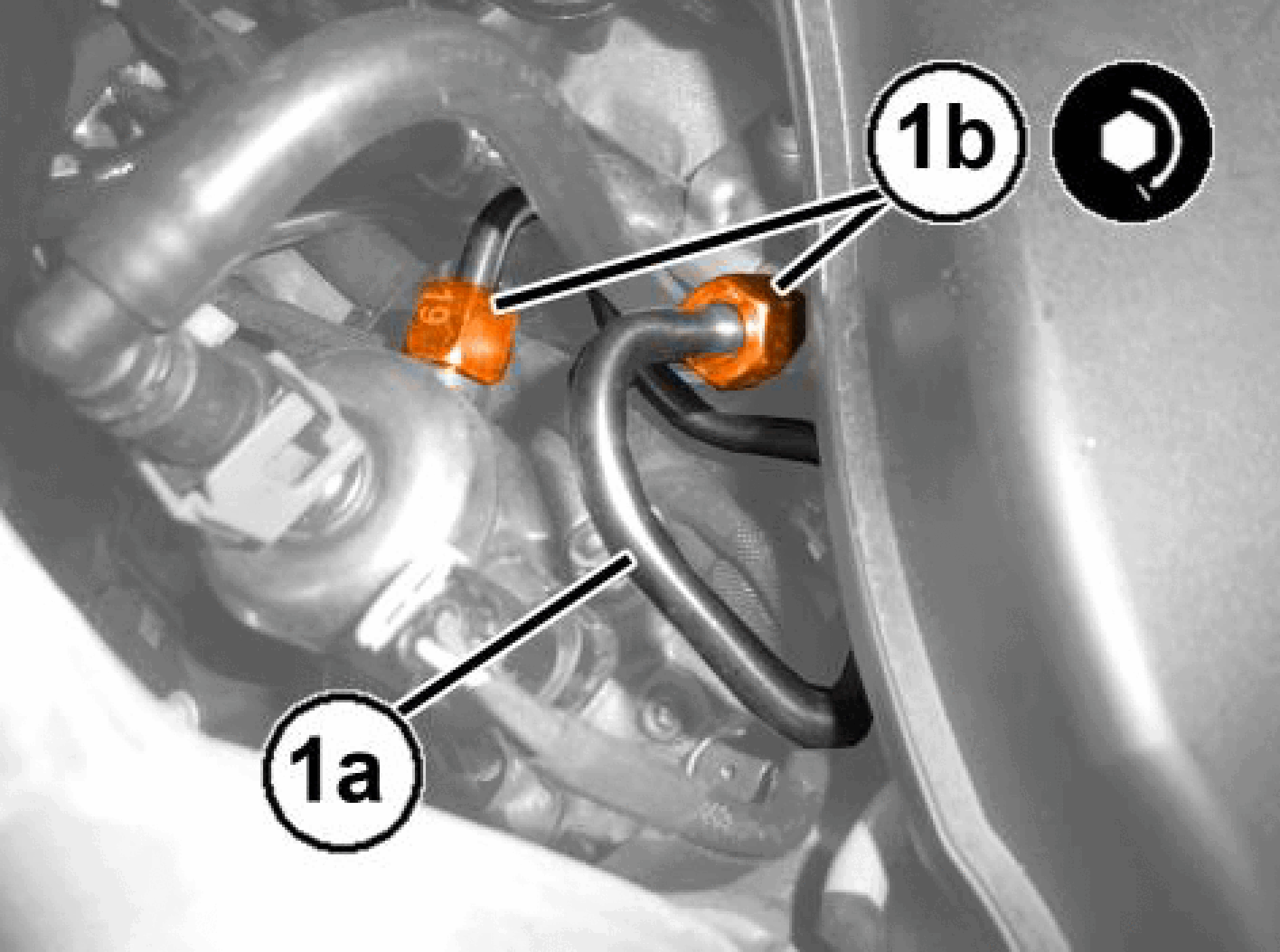

1. Install the right low pressure fuel line from the pressure pump to the fuel rail (1a) for the right cylinder and tighten the fittings (1b) to the proper torque specification. Refer to appropriate service information .
2. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
3. Install the engine box reinforcement brace. Refer to BRACE, ENGINE BOX REINFORCEMENT, REMOVAL AND INSTALLATION .
