Left Low Pressure Fuel Line

REMOVAL

1. Remove the engine box reinforcement brace. Refer to BRACE, ENGINE BOX REINFORCEMENT, REMOVAL AND INSTALLATION .
2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

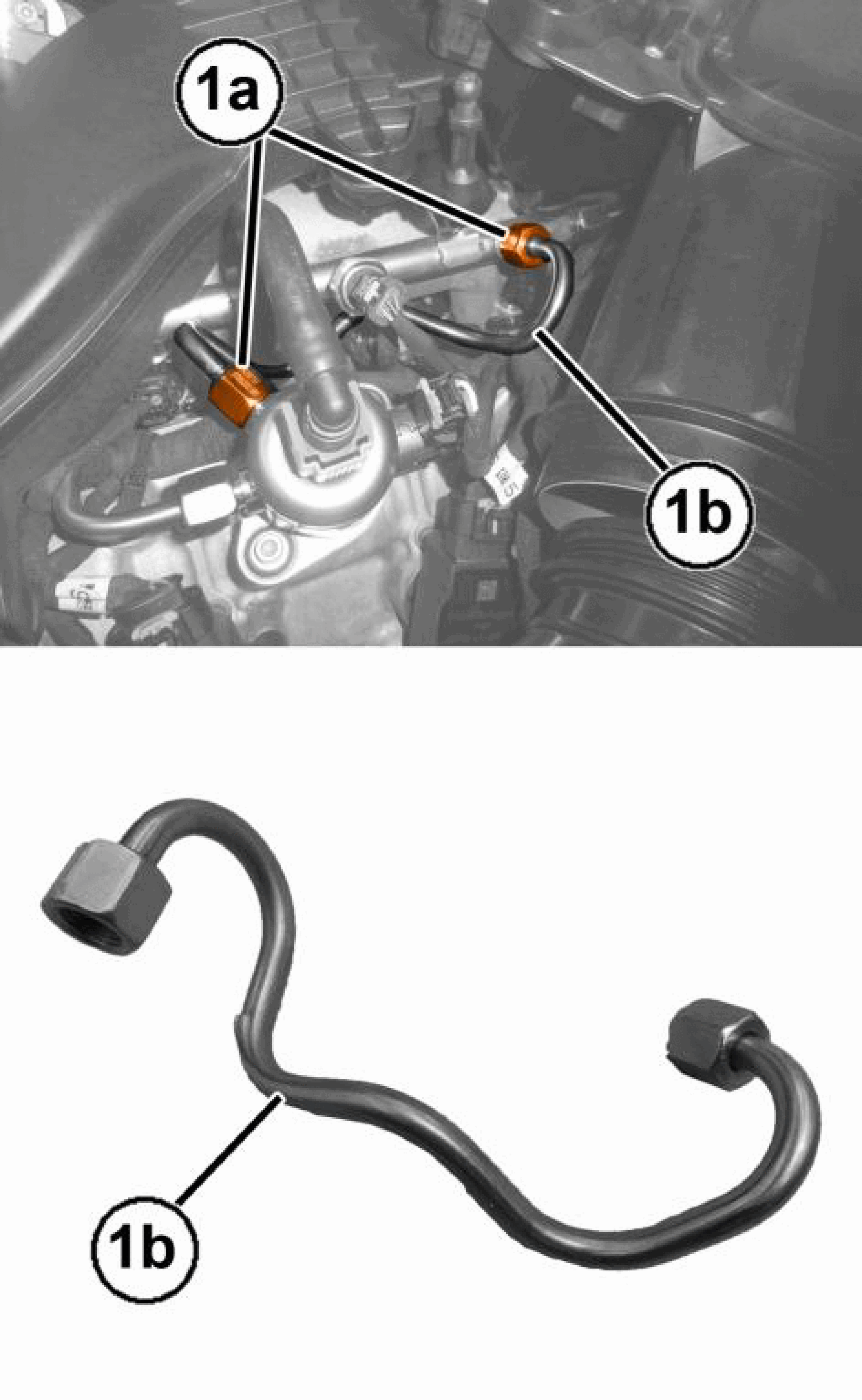

3. Unscrew the fittings (1a) and remove the left low pressure fuel line from pressure pump to the fuel rail (1b) for the left cylinder head.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

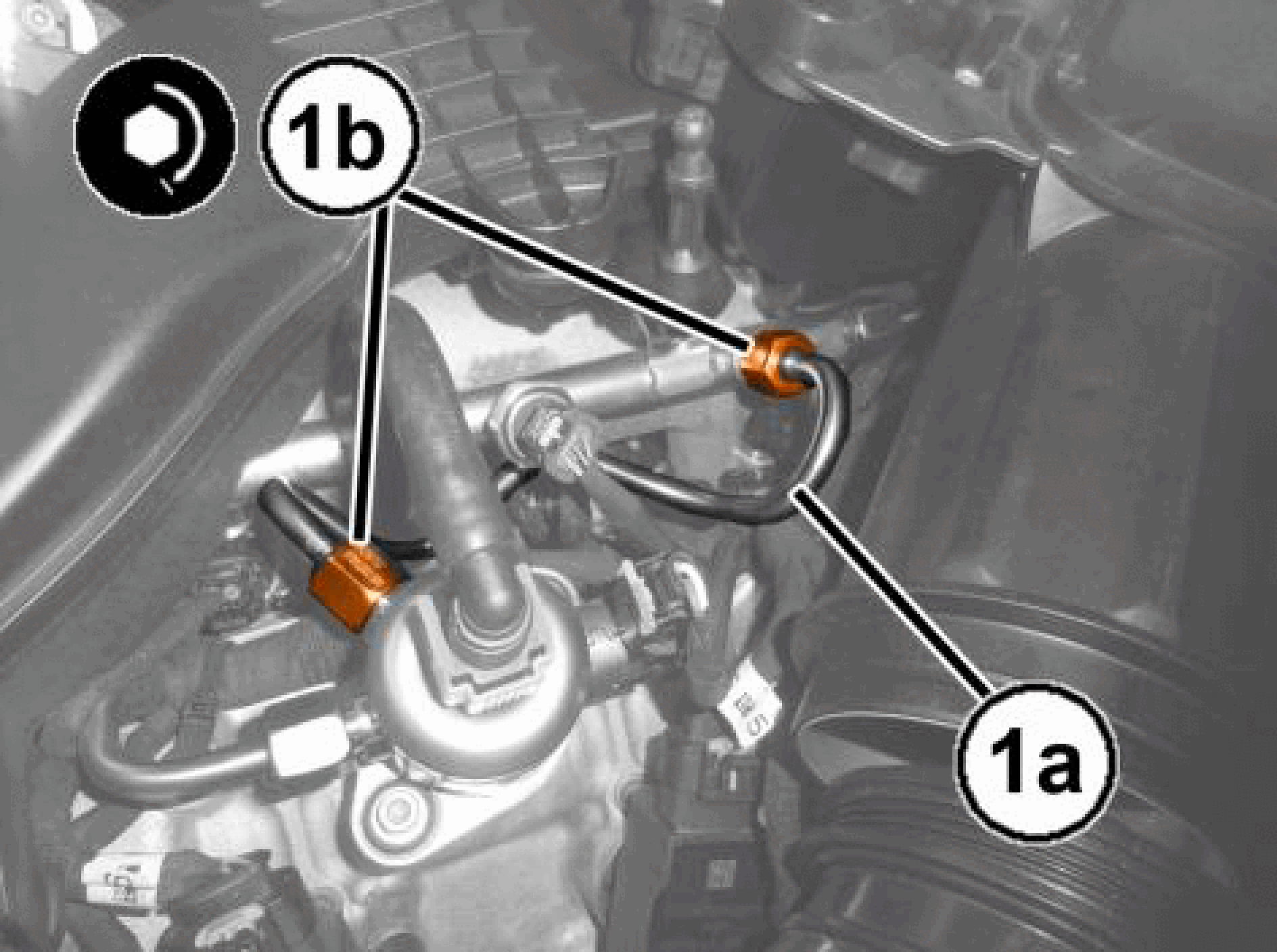

1. Install the left low pressure fuel line from the pressure pump to the fuel rail (1a) for the left cylinder head and tighten the fittings (1b) to the proper torque specification. Refer to appropriate service information .
2. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
3. Install the engine box reinforcement brace. Refer to BRACE, ENGINE BOX REINFORCEMENT, REMOVAL AND INSTALLATION .
