Right Camshaft Chain TENSIONER Arm

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the powertrain from the vehicle, separate the engine from the transmission and place the engine on a maintenance stand. Refer to REMOVAL AND INSTALLATION .
  2. Remove the flexplate. Refer to FLEXPLATE, REMOVAL AND INSTALLATION .
  3. Remove the timing chain cover and the right camshaft chain tensioner. Refer to TENSIONER, ENGINE TIMING, REMOVAL AND INSTALLATION .

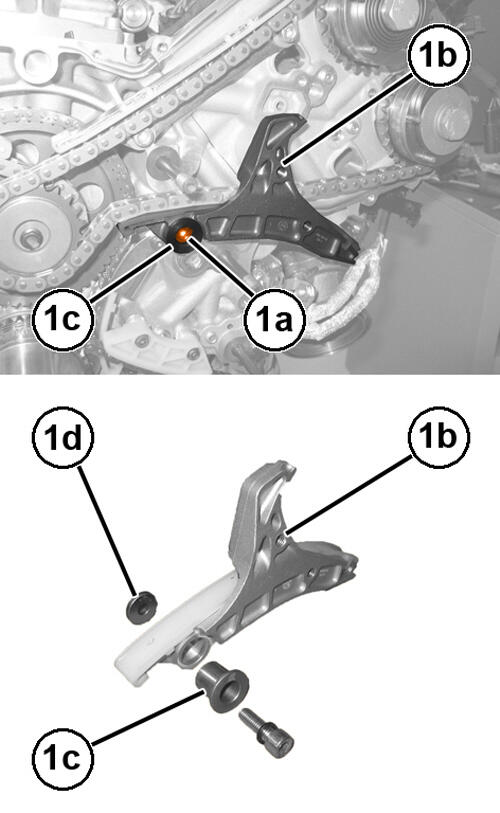

    GC0194520Courtesy of CHRYSLER GROUP, LLC
  4. Remove the bolt (1a) and the chain tensioner arm (1b) complete with bushing (1c) and spacer (1d).

INSTALLATION

  1. Remove all sealant residues.

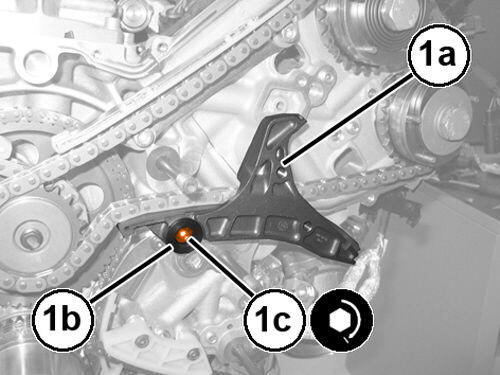

    GC0193774Courtesy of CHRYSLER GROUP, LLC
  2. Install the chain tensioner arm (1a) in its housing complete with spacer and bushing (1b) and tighten the bolt (1c) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  3. Install the right camshaft chain tensioner and the timing chain cover. Refer to TENSIONER, ENGINE TIMING, REMOVAL AND INSTALLATION .
  4. Install the flexplate. Refer to FLEXPLATE, REMOVAL AND INSTALLATION .
  5. Remove the engine from the maintenance stand, install the transmission to the engine and install the powertrain in the vehicle. Refer to REMOVAL AND INSTALLATION .
