Primary Timing Chain Guide

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the powertrain from the vehicle, separate the engine from the transmission and place the engine on a maintenance stand. Refer to REMOVAL AND INSTALLATION .
  2. Remove the flexplate. Refer to FLEXPLATE, REMOVAL AND INSTALLATION .
  3. Remove the timing chain cover and the oil pump drive chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL AND INSTALLATION .
  4. Remove the primary cam chain tensioner. Refer to TENSIONER, ENGINE TIMING, REMOVAL AND INSTALLATION .

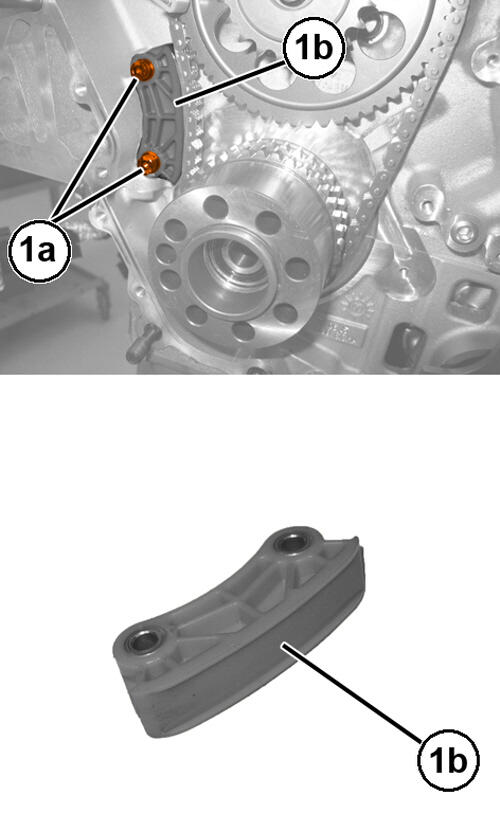

    GC0194116Courtesy of CHRYSLER GROUP, LLC
  5. Remove the bolts (1a) and the primary chain guide (1b).

INSTALLATION

  1. Remove all sealant residues.

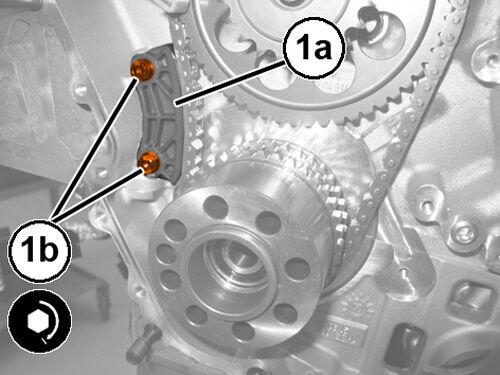

    GC0194373Courtesy of CHRYSLER GROUP, LLC
  2. Install the primary chain guide (1a) and tighten the bolts (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  3. Install the primary timing chain tensioner. Refer to TENSIONER, ENGINE TIMING, REMOVAL AND INSTALLATION .
  4. Install the oil pump drive chain and the timing chain cover. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL AND INSTALLATION .
  5. Install the flexplate. Refer to FLEXPLATE, REMOVAL AND INSTALLATION .
  6. Remove the engine from the maintenance stand, install the transmission to the engine and install the powertrain in the vehicle. Refer to REMOVAL AND INSTALLATION .
