Oil Pump Drive Chain

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the powertrain from the vehicle, separate the engine from the transmission and place the engine on a maintenance stand. Refer to REMOVAL AND INSTALLATION .
  2. Remove the flexplate. Refer to FLEXPLATE, REMOVAL AND INSTALLATION .
  3. Remove the timing chain cover and the oil pump chain tensioner and guide. Refer to GUIDES, TIMING CHAIN, REMOVAL AND INSTALLATION .

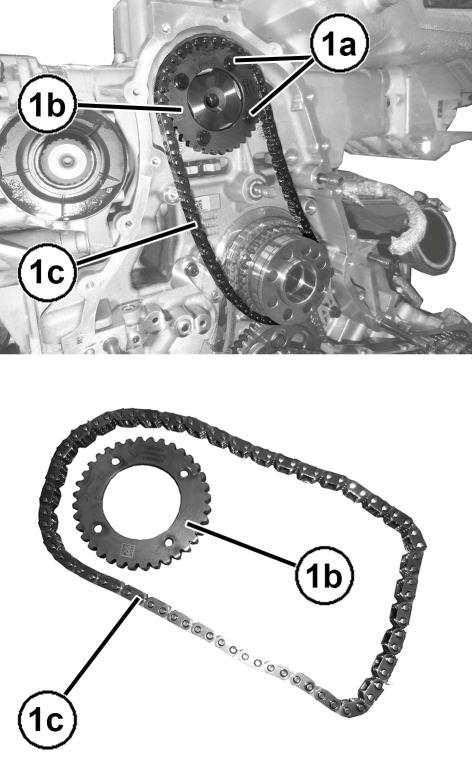

    GC0196394Courtesy of CHRYSLER GROUP, LLC
  4. Remove the bolts (1a) and the oil pump sprocket (1b) with the oil pump drive chain (1c).

INSTALLATION

  1. Remove all sealant residues.

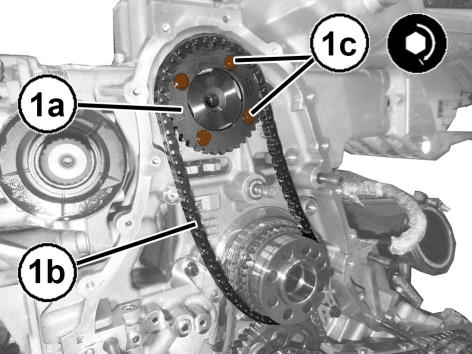

    GC0196335Courtesy of CHRYSLER GROUP, LLC
  2. Install the oil pump sprocket (1a) with the oil pump drive chain (1b) and tighten the bolts (1c) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  3. Install the oil pump chain tensioner, chain guide and the timing chain cover. Refer to GUIDES, TIMING CHAIN, REMOVAL AND INSTALLATION .
  4. Install the flexplate. Refer to FLEXPLATE, REMOVAL AND INSTALLATION .
  5. Remove the engine from the maintenance stand, install the transmission to the engine and install the powertrain in the vehicle. Refer to REMOVAL AND INSTALLATION .
