Left Camshaft Chain

REMOVAL

1. Remove the powertrain from the vehicle, separate the engine from the transmission and place the engine on a maintenance stand. Refer to REMOVAL AND INSTALLATION .
2. Remove the flexplate. Refer to FLEXPLATE, REMOVAL AND INSTALLATION .
3. Remove the timing chain cover and right camshaft chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL AND INSTALLATION .
4. Remove the left camshaft chain tensioner and tensioner arm. Refer to GUIDES, TIMING CHAIN, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

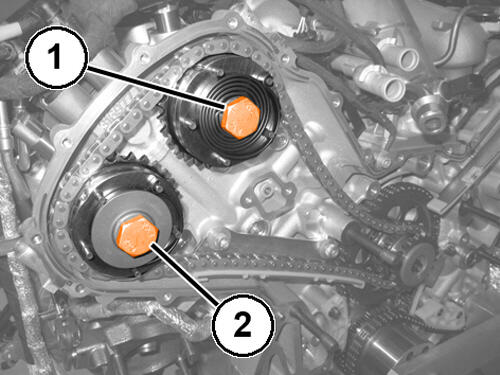

5. Remove the left-handed bolt (1) securing the intake phase variator.
6. Remove the left-handed bolt (2) securing the exhaust phase variator.

   Courtesy of CHRYSLER GROUP, LLC

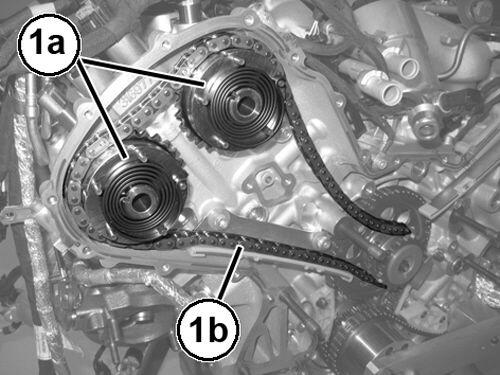

7. Remove the phase variators (1a) along with the camshaft chain (1b).

   Courtesy of CHRYSLER GROUP, LLC

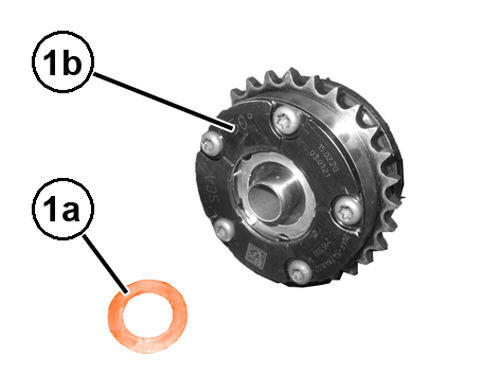

8. Remove the washer (1a) from the intake phase variator (1b).

   Courtesy of CHRYSLER GROUP, LLC

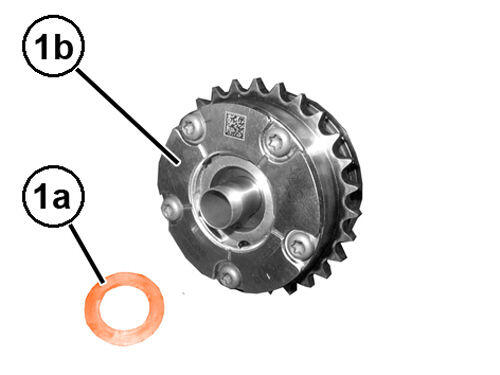

9. Remove the washer (1a) from the exhaust phase variator (1b).

INSTALLATION

1. Install a NEW  washer on the exhaust phase variator.
2. Install a NEW  washer on the intake phase variator.
3. Install the phase variators together with the camshaft chain.

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   Lubricate the phase variator bolts with engine oil before installation.

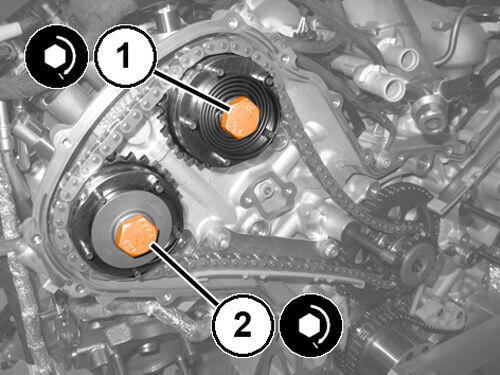

4. Install the NEW  left-handed bolt (1) to the intake phase variator and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
5. Install the NEW  left-handed bolt (2) to the exhaust phase variator and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
6. Install the tensioner arm and left camshaft chain tensioner. Refer to GUIDES, TIMING CHAIN, REMOVAL AND INSTALLATION .
7. Install the right camshaft chain, tensioner and timing chain cover. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL AND INSTALLATION .
8. Install the flexplate. Refer to FLEXPLATE, REMOVAL AND INSTALLATION .
9. Remove the engine from the maintenance stand, install the transmission to the engine and install the powertrain in the vehicle. Refer to REMOVAL AND INSTALLATION .
