Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Disconnect and isolate the negative battery cable.
  2. Remove the oil pan. Refer to PAN, OIL, REMOVAL AND INSTALLATION .

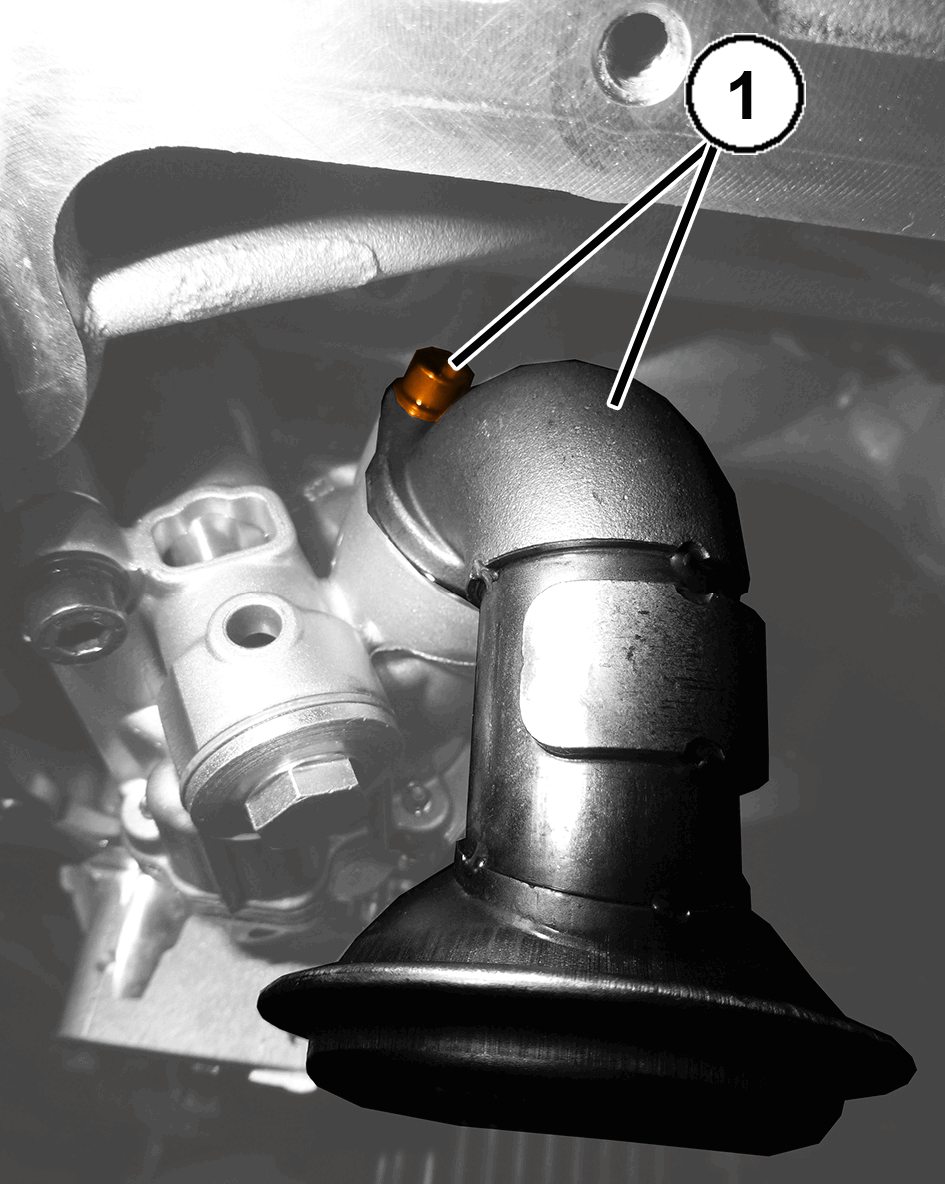

    GC0196803Courtesy of CHRYSLER GROUP, LLC
  3. Remove the oil pump pick up bolt (1).

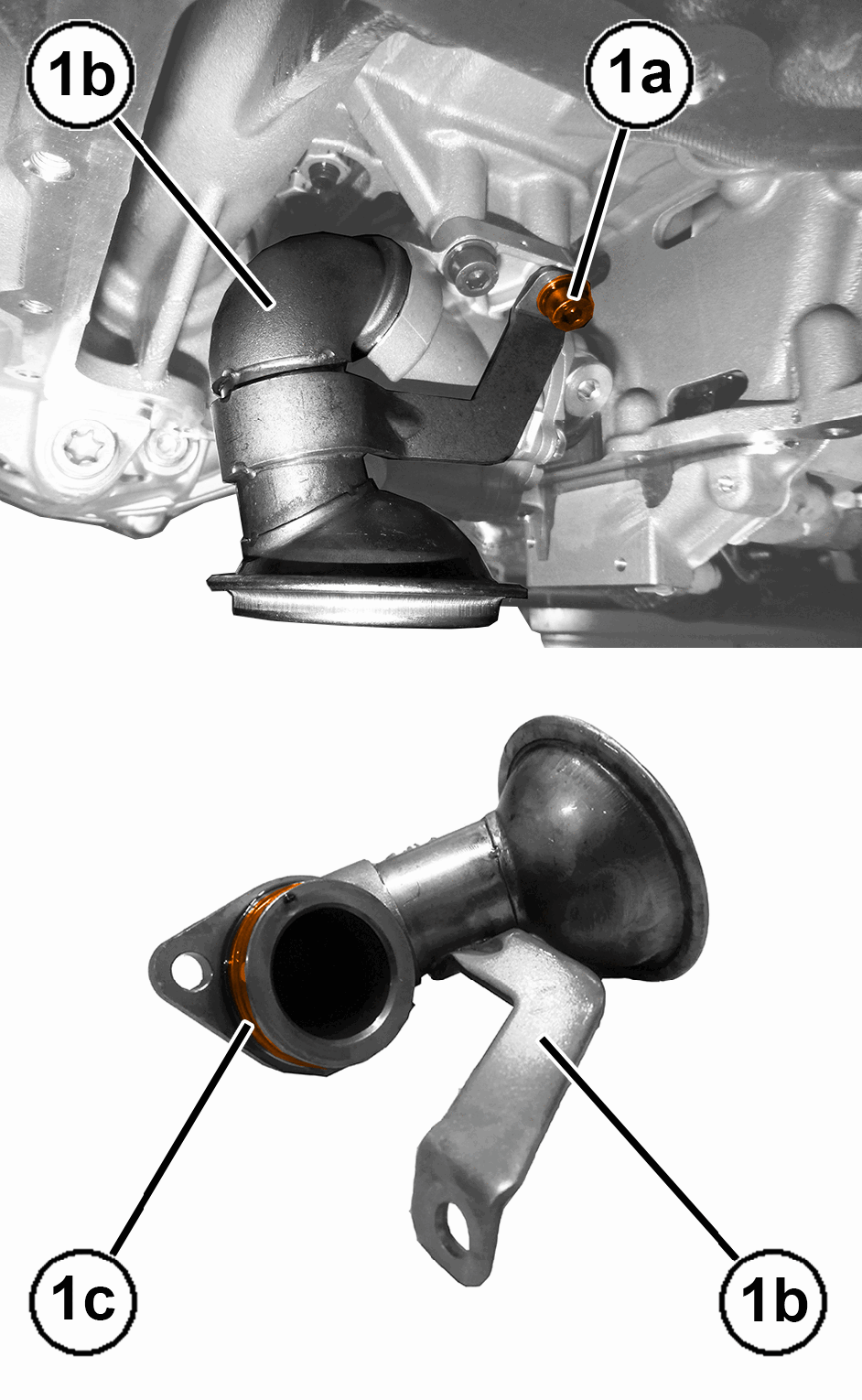

    GC0196345Courtesy of CHRYSLER GROUP, LLC
  4. Remove the bracket bolt (1a) and the oil pump pick up (1b) complete with O-ring (1c).

INSTALLATION

GC0196734Courtesy of CHRYSLER GROUP, LLC
  1. Using a NEW  O-ring (1b), install the oil pump pick up (1a) and tighten the bracket bolt (1c) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

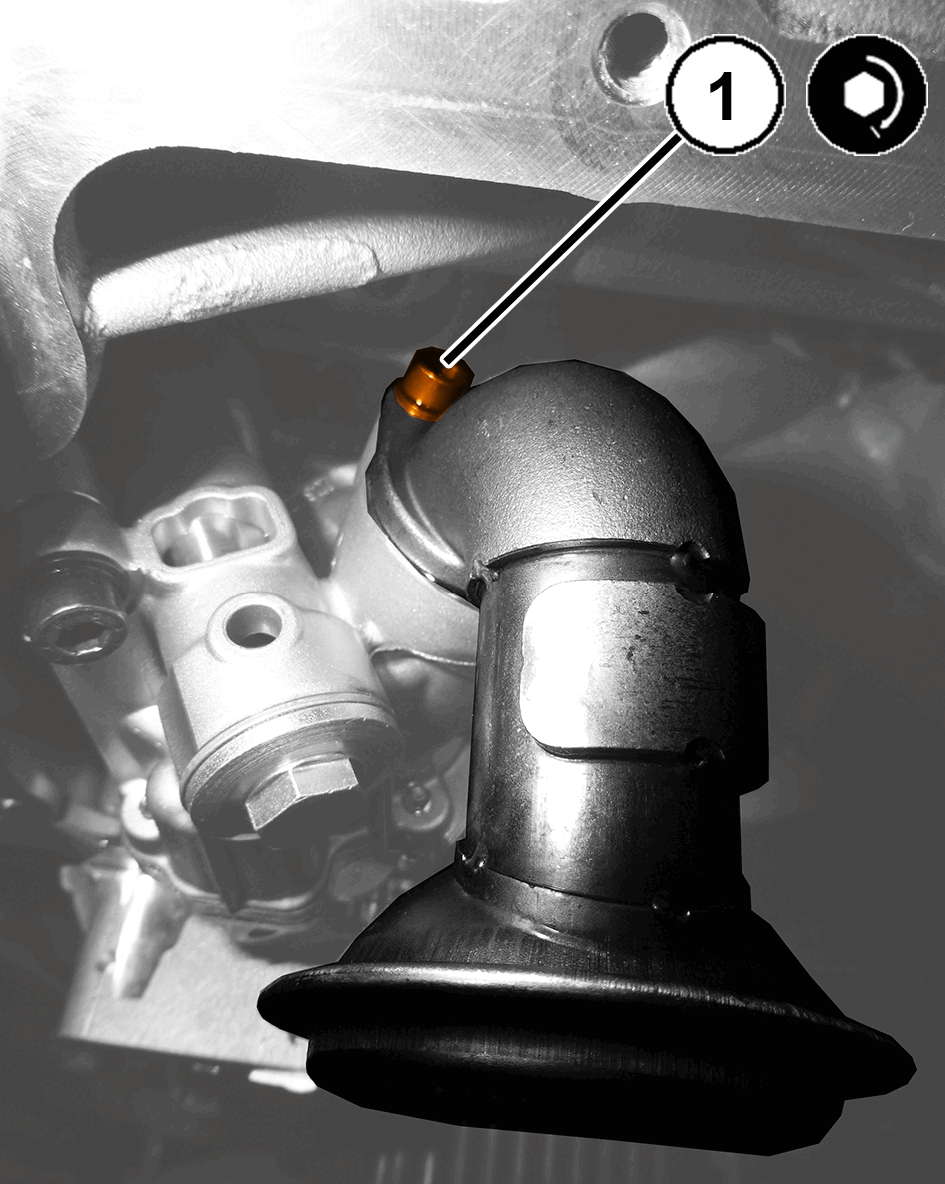

    GC0196203Courtesy of CHRYSLER GROUP, LLC
  2. Install the oil pump pick up bolt (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  3. Install the oil pan. Refer to PAN, OIL, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable.
