Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the flexplate. Refer to FLEXPLATE, REMOVAL AND INSTALLATION .

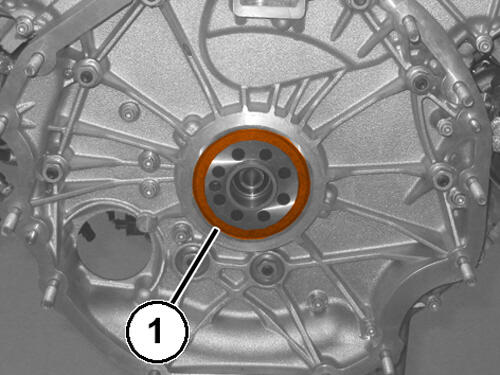

    GC0193496Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Be careful not to damage the rear crankshaft oil seal seat while removing it.

    NOTE:

    Removing the rear crankshaft oil seal is a destructive operation, so it always need to be replaced.

  2. Carefully remove the rear crankshaft oil seal (1).

INSTALLATION

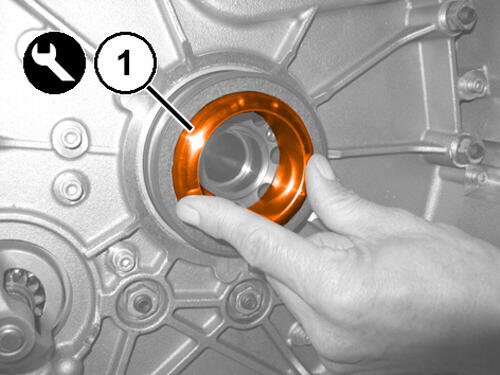

GC0194573Courtesy of CHRYSLER GROUP, LLC
  1. Using the 2030000090 tool's ring (1), install the rear crankshaft oil seal.

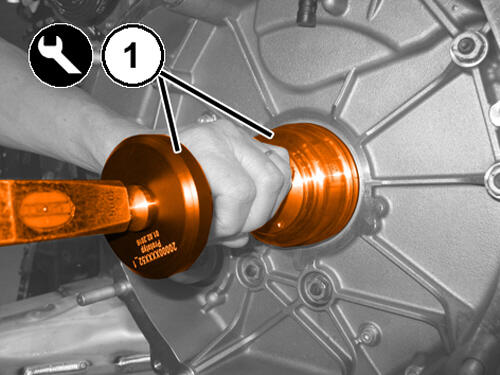

    GC0193508Courtesy of CHRYSLER GROUP, LLC
  2. Using the 2030000090 tool (1), install the rear crankshaft oil seal as far as it will go.
  3. Install the flexplate. Refer to FLEXPLATE, REMOVAL AND INSTALLATION .
