Removal And Installation
WARNING: This page is about a different variant/trim than selected.
REMOVAL
- Remove the vibration damper. Refer to
DAMPER, VIBRATION, REMOVAL AND INSTALLATION .NOTE:
When removing the front crankshaft oil seal, be careful not to damage its seat.
NOTE:The front crankshaft oil seal is ruined during the removal operation, therefore it must always be changed.

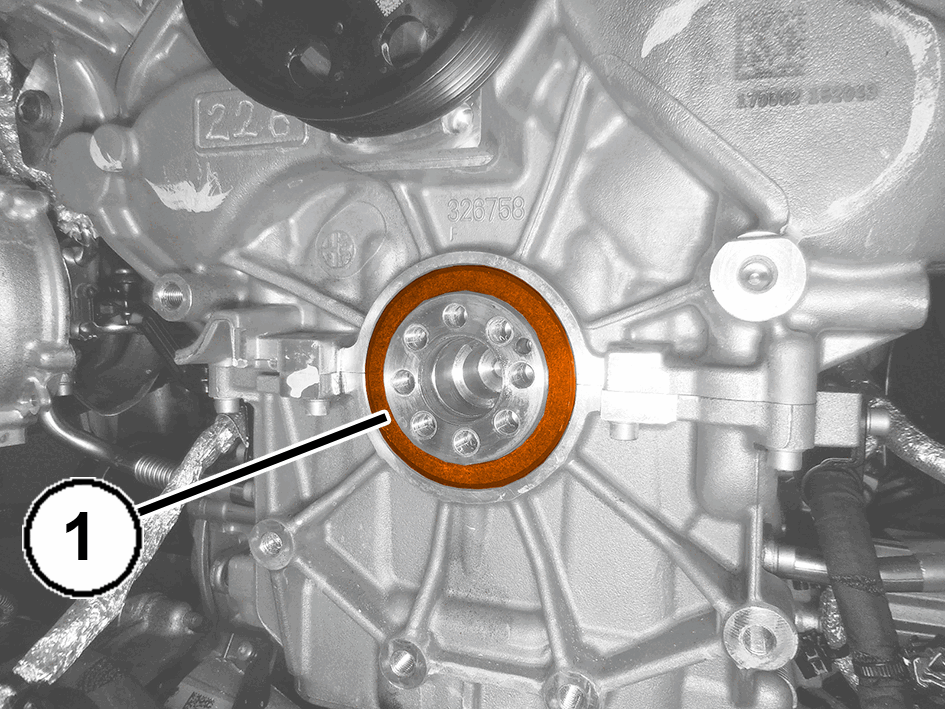

- Carefully remove the front crankshaft oil seal (1).
INSTALLATION

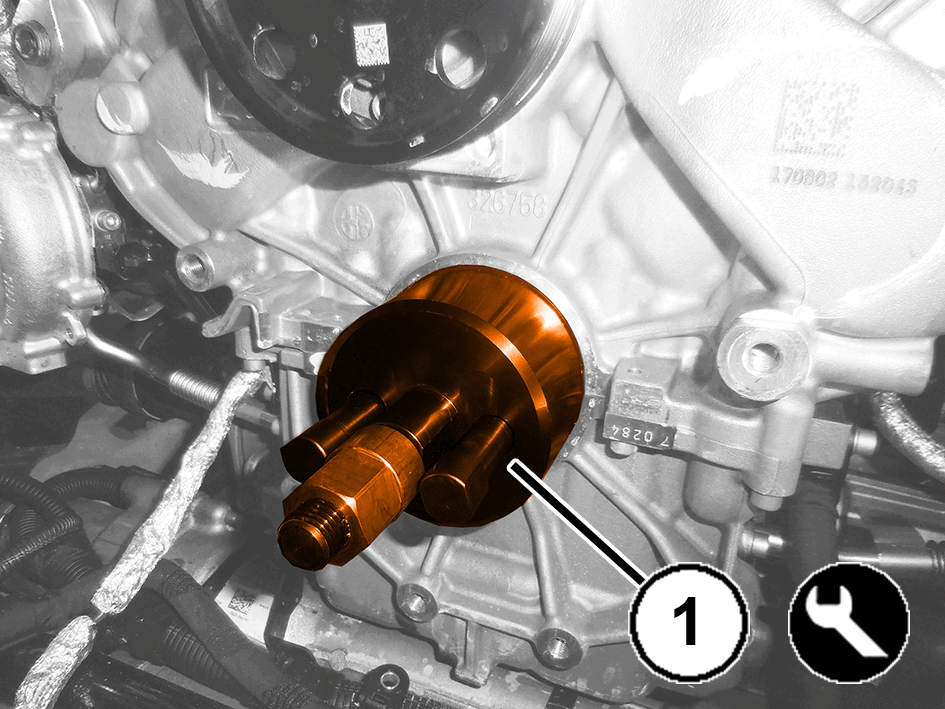

- Using the (special tool #2030100090, Installer, Crankshaft Oil Seal) (1), Install the NEW front crankshaft oil seal.
- Install the vibration damper. Refer to DAMPER, VIBRATION, REMOVAL AND INSTALLATION .
