Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .

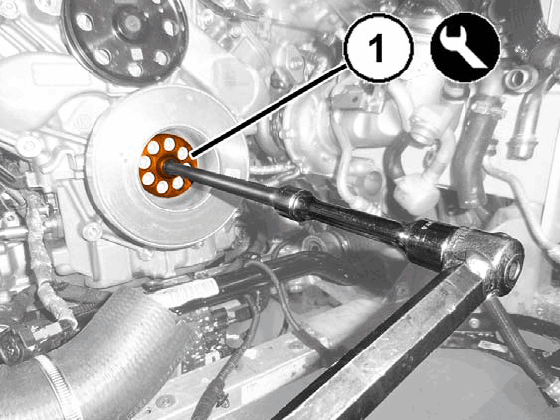

    GC0197203Courtesy of CHRYSLER GROUP, LLC
  2. Install the (special tool #2024200090, Damper, Rotating Tool) (1) on the vibration damper.

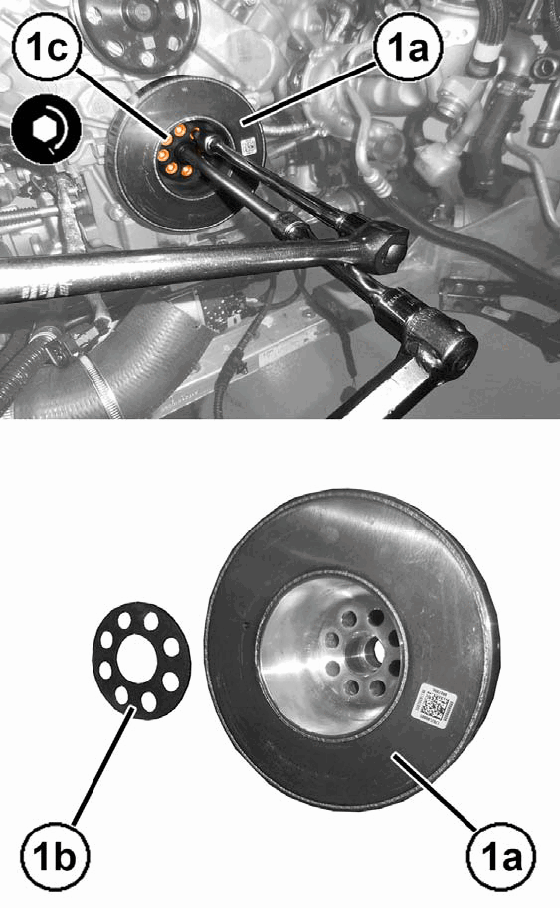

    GC0196183Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolts (1c) and the vibration damper (1a), complete with washer (1b).

INSTALLATION

GC0196183Courtesy of CHRYSLER GROUP, LLC
  1. Install the vibration damper (1a) onto the crankshaft complete with washer (1b). Using the (special tool #2024200090, Damper, Rotating Tool) tool tighten the NEW  bolts (1c) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  2. Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
