Middle Air Cleaner Tube
WARNING: This page is about a different variant/trim than selected.
REMOVAL
- Remove the engine cover. Refer to
COVER, ENGINE, REMOVAL AND INSTALLATION .

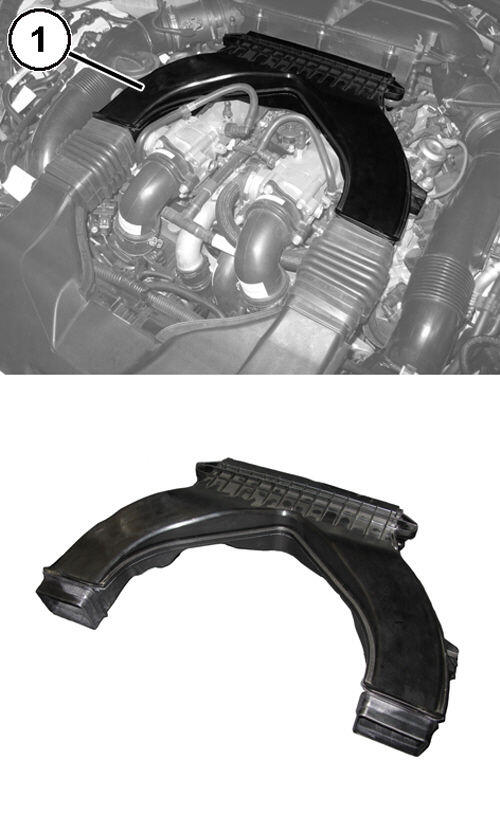

- Disengage the retaining pins and remove the cold air intake tubes (1) to air cleaner body.

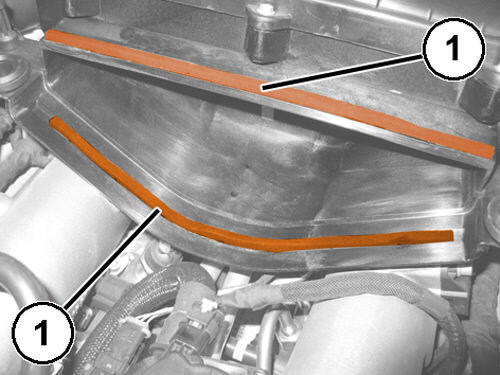

- Check the integrity of the cold air intake pipes to air cleaner gaskets (1).
INSTALLATION
- Install the cold air intake tubes onto air cleaner body and engage the retaining pins.
- Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
