Air Cleaner Body

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  2. Remove the middle air cleaner tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

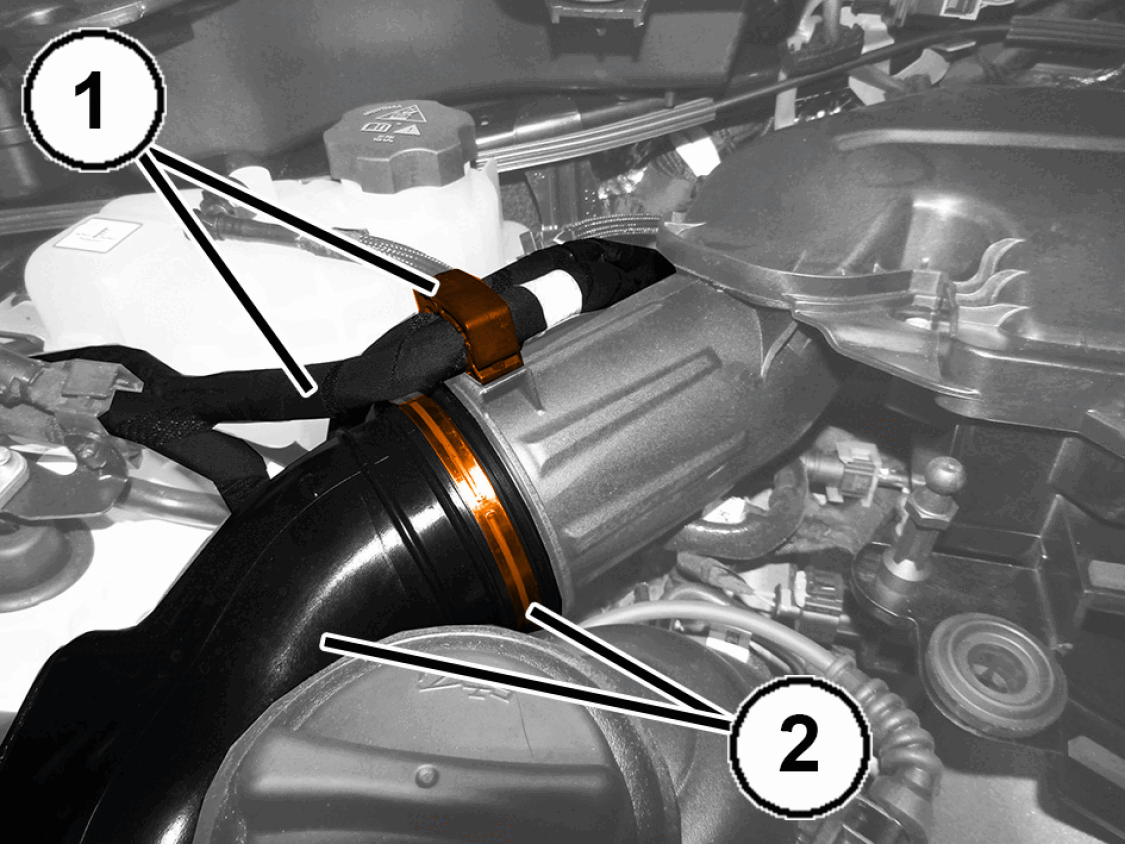

    GC0197188Courtesy of CHRYSLER GROUP, LLC
  3. Open the retaining clip and release the engine wiring harness (1).
  4. Loosen the clamp and disconnect the right air inlet tube from the air cleaner body (2).
  5. Follow the same procedure to disconnect the left air inlet from the air cleaner body.

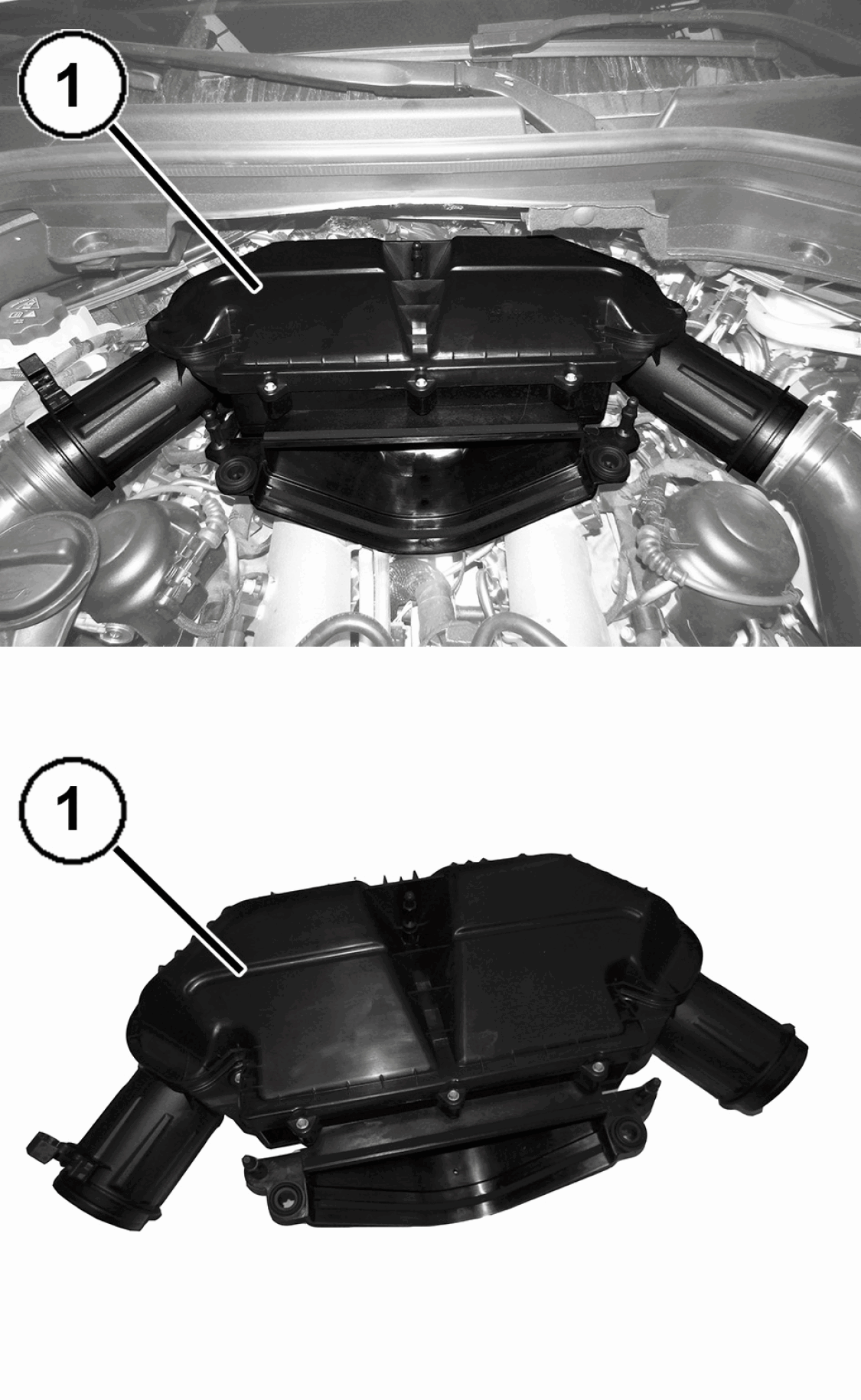

    GC0195598Courtesy of CHRYSLER GROUP, LLC
  6. Disengage the retaining pins and remove the air cleaner body (1).

INSTALLATION

  1. Install the air cleaner body and engage the retaining pins.
  2. Connect the right air inlet tube to the air cleaner body and secure the clamp.
  3. Follow the same procedure to connect the air left air inlet to the air cleaner body.
  4. Engage the wiring harness and secure the retaining clip.
  5. Install the middle air cleaner tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
  6. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
