Water Pump Inlet Connector

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Disconnect and isolate the negative battery cable.
3. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION  .

   Courtesy of CHRYSLER GROUP, LLC

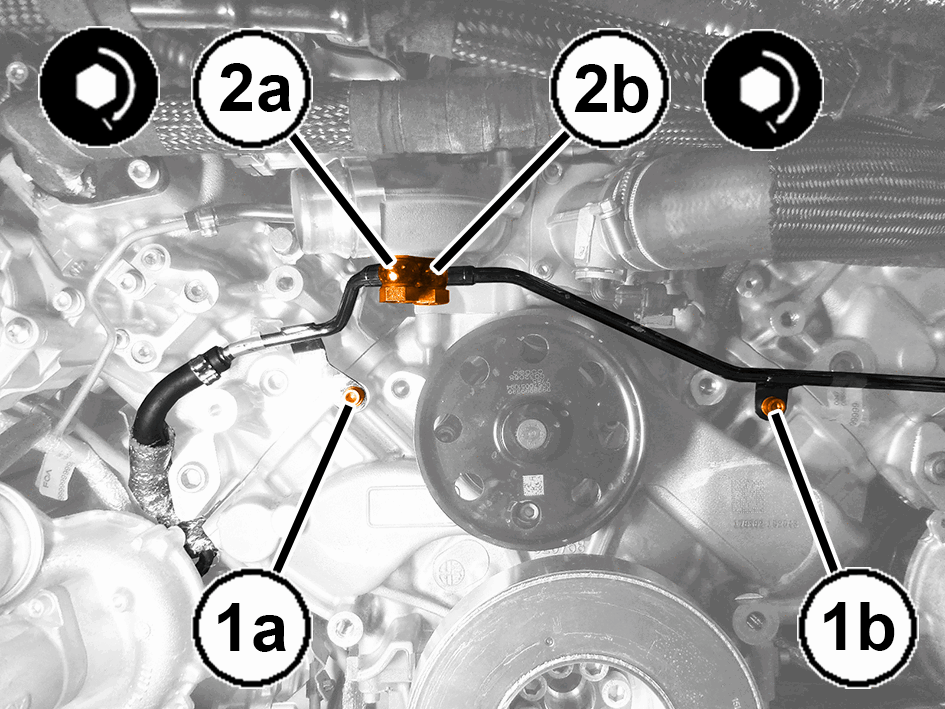

4. Remove the engine coolant outlet pipe connector from the right (1a) and left (1b) turbocharger.
5. Remove the bolts from the intermediate support bracket of the engine coolant outlet pipe from the right (2a) and left (2b) turbocharger.

   Courtesy of CHRYSLER GROUP, LLC

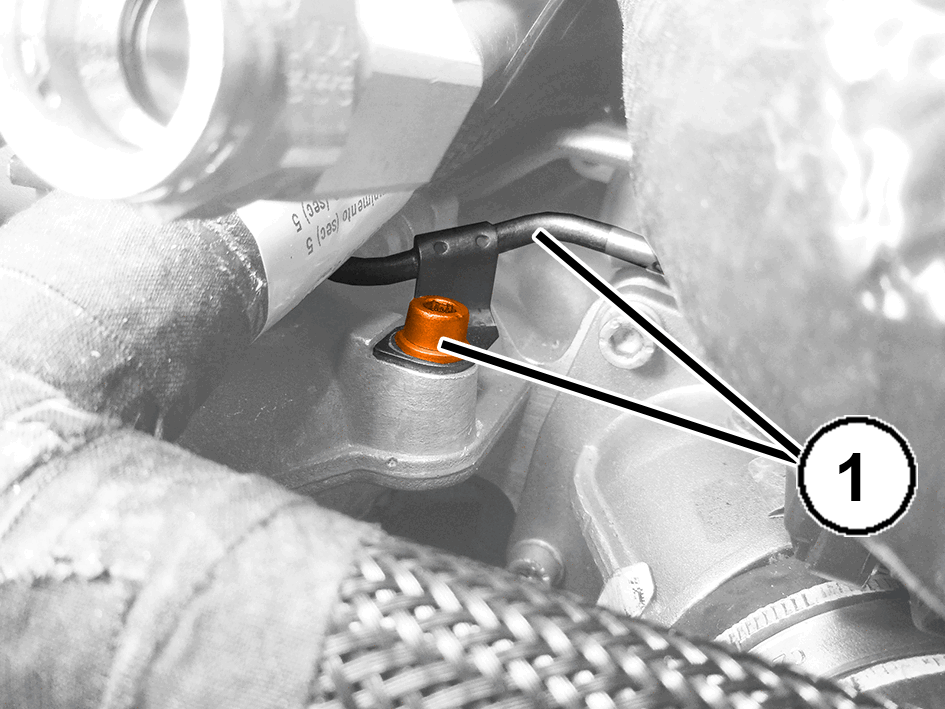

6. Remove the bolt (1) from the vacuum air system rigid tandem pipe support bracket.

   Courtesy of CHRYSLER GROUP, LLC

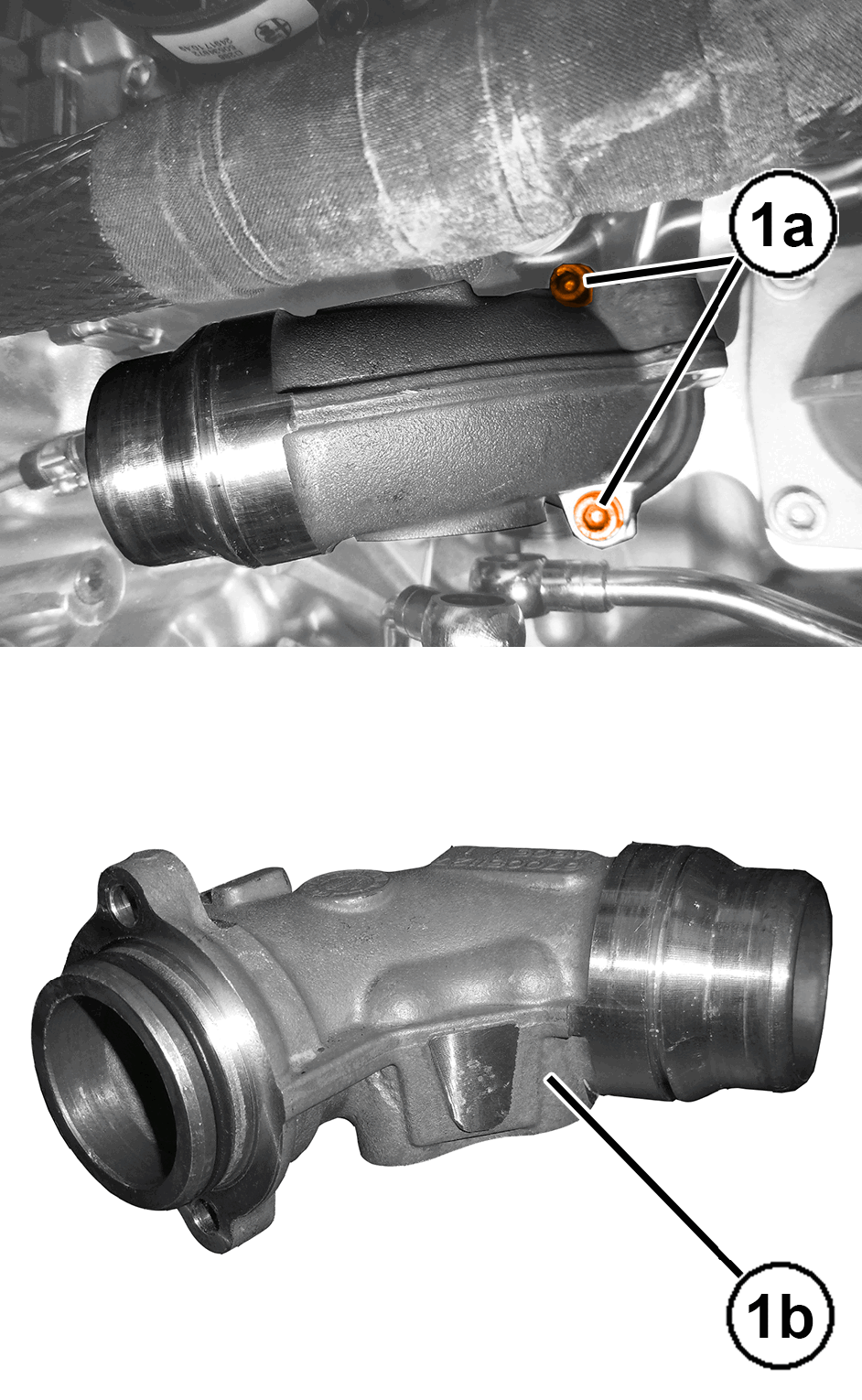

7. Remove the bolts (1a) and the water pump inlet connector (1b).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

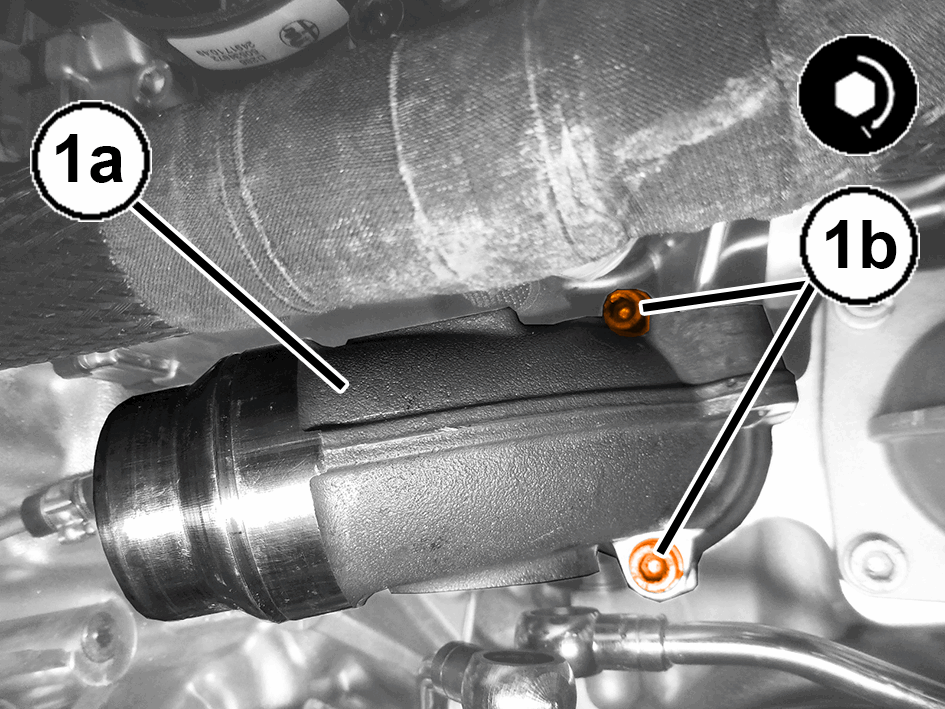

1. Install the water pump inlet connector (1a) to the water pump and tighten the bolts (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

2. Install and securely tighten the vacuum air system rigid tandem pipe support bracket bolt (1).

   Courtesy of CHRYSLER GROUP, LLC

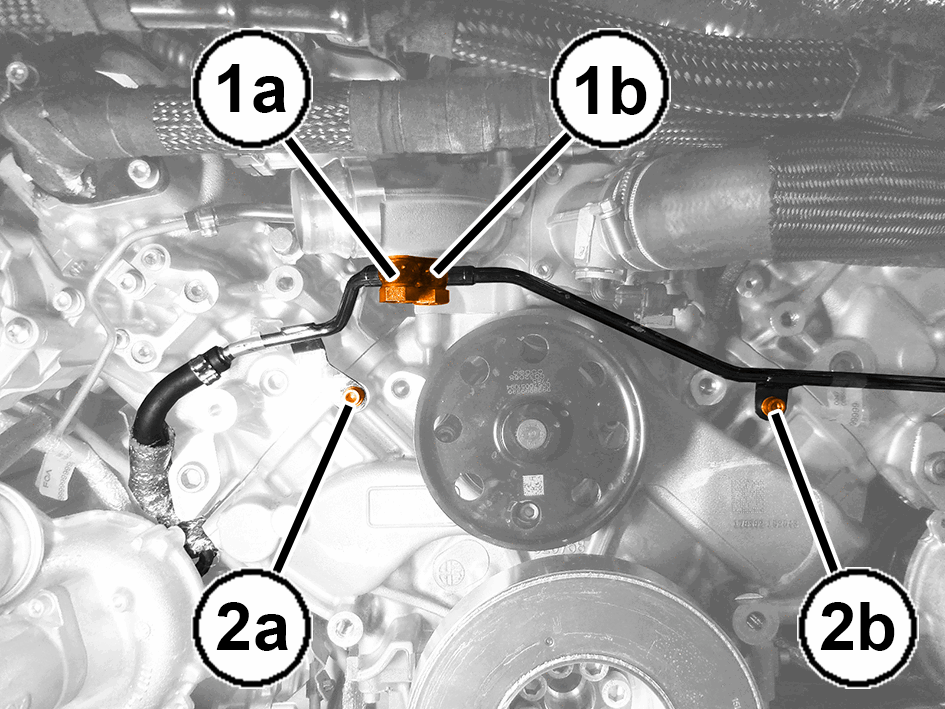

3. Install and securely tighten the engine coolant outlet pipe intermediate support bracket bolts from the right (1a) and left (1b) turbocharger.
4. Tighten the engine coolant outlet pipe connector from the right (2a) and left (2b) turbocharger to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
5. Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION  .
6. Connect the negative battery cable.
7. Remove the support and lower the vehicle.
